Corda di ancoraggio, corda di sicurezza, Safety
EUROLITE Corda di ancoraggio 1000x10mm

svg
1 cm
EUROLITE

Corda di ancoraggio, corda di sicurezza, Safety

EUROLITE Corda di ancoraggio 1000x10mm

La giacenza è di circa 12 sett.
20,90
nel carrello
Ricerca negozi
Prezzo di listino più 19% IVA
I prezzi nei negozi specializzati possono variare.
No. 58010490
EUROLITE Lifting ropes, safety bonds
The EUROLITE lifting ropes, safety bonds comply with the current regulation of the German professional insurance association as summed up in BGI 810-3:2007-03 Loads above persons. The lifting ropes, safety bonds are constructed in accordance with the European standards DIN EN 12385-4:2008-06 and DIN 56927:2009-03.
The lifting ropes, safety bonds are tested by the LGA, an independent and accredited testing institute. The breaking load testified by the LGA is documented in the test report according to DIN EN 10204 required by the German professional insurance association.
Clearly, every user can install and secure loads above persons with these lifting ropes, safety bonds in all areas where the BGV C1 is required.
Use as attachment gear
These ropes are stamped with a WLL describing the maximum load when used for general lifting purposes. For all areas where the BGV C1 is required, the correct lifting rope must be selected only by calculating with safety-factor 12. According to this calculation, the maximum load of this rope is 450 kg (single-stranded).
Features

Corda di ancoraggio, corda di sicurezza, Safety

  • Corda a trefoli rotondi 6 x 19 con inserto in fibra

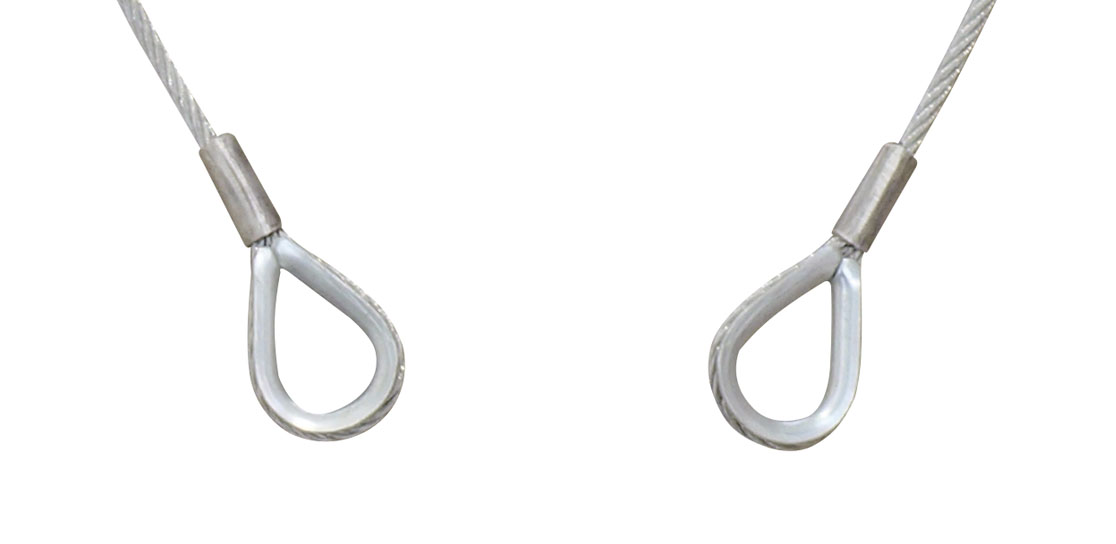

  • Con due redance
  • Per il fissaggio e la messa in sicurezza di carichi sopra le persone
  • Complies with DIN EN 12385-4:2008-06 and DIN 56927:2009-03
  • Fune con redancia
  • Verificato LGA
  • Per maggiori informazioni su questo prodotto, consultare "Download" nella scheda tecnica
Dati tecnici
Carico massimo WLL (5 volte sup.):1050 kg
Struttura funicolare:6 x 19 FC
Classe di resistenza della fune:1770
Norma:DIN EN 12385-4:2008-06, DIN 56927:2009-03
Resistenza nominale della fune:1770 N/mm²
Superficie dei fili:Zincato
Colore:Argento
Intervallo di temperatura:-40° C - +100° C
Misure:Lunghezza: 1 m
Diametro: Ø 1 cm
Peso:1,30 kg
Peso in lunghezza:0,359 kg/m
Unità di imballaggio
QPC EANPeso Dimensioni
140263971928961,30 kg20cm x 17cm x 8cm
15402639742010420,10 kg39cm x 27cm x 28cm
20402639719290226,70 kg51cm x 37cm x 21cm
Assistenza
Pezzi di ricambio
Nessun pezzo di ricambio disponibile.
Download
Caricamento documenti in corso. Attendi...
Informazioni sul produttore
Steinigke Showtechnic GmbH
Andreas-Bauer-Str. 5
D-97297 Waldbüttelbrunn

+49 931 4061 600
info@steinigke.de
www.steinigke.de/support
Istruzioni e avvertenze di sicurezza
Le istruzioni di sicurezza specifiche per il prodotto sono riportate nelle istruzioni per l'uso del prodotto.
