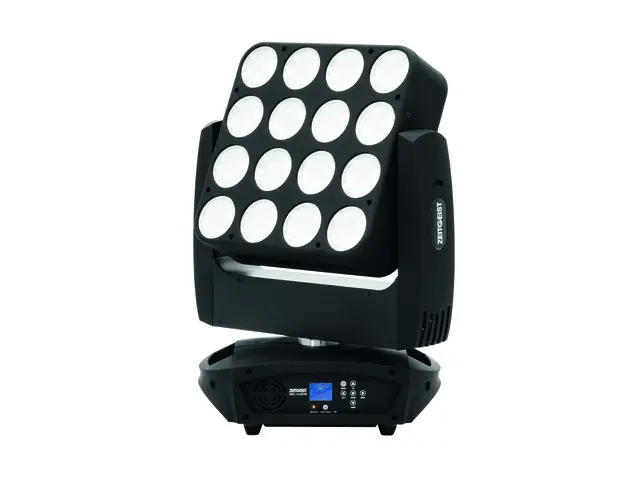

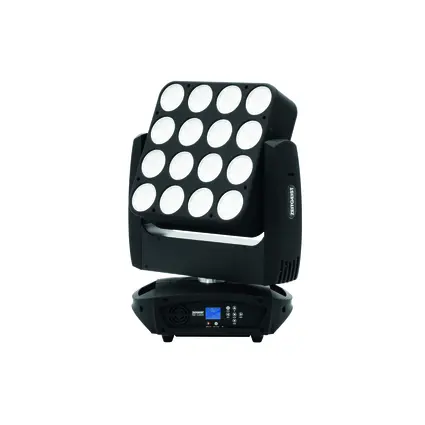

EUROLITE Zeitgeist PMC-16 MOVE
L'articolo non è più disponibile.
No. 41606440
15°
COB moving-panel with 4 x 4 Matrix
LED Performance Cluster for pixel mapping applications via Art-Net
Equipped with 16 x 30 W COB LED in the colors red, green and blue
Each LED can be controlled individually
Quick and easy control via Art-Net
For use via appropriate lighting control software supporting Art-Net
With integrated wireless receiver for WDMX operation (Wireless Solution - made in Sweden)
11, 13 or 58 DMX channels selectable
Functions: RGB color mixture, automatic color change, built-in programs and strobe effect with variable speed, dimmer, sound-control, Master/Slave operation
Automatic position correction
Exact positioning via 16 bit PAN/TILT movement resolution
PAN angle switchable between 540° and 630°
DMX-controlled operation or stand-alone operation with Master/Slave function
ESDC function (Easy Service Data Check) with battery-buffered control board for operation time readouts etc.
Control board with LC display and foil-keyboard for adjusting the DMX-starting address, PAN/TILT reverse, reset
The scenes can be modified via the Control Board or via an external controller and loaded into the memory
Number of scenes can be changed individually
Integrated web interface for firmware updates through a browser
EtherCon input and output
Switch-mode power supply for operation between 100 and 240 Volts
Power connection via Neutrik PowerCon jack and included power cable
Feed-through output allows to power up to 8 devices
DMX control via every standard DMX controller
25 LED 30 W COB (chip-on-board) 3in1 R/G/B (miscela di colori omogenea)
Angolo PAN commutabile tra 540°e 630°
Correzione posizione automatica (feedback)
Posizionamento esatto (risoluzione a 16 bit)
Il dispositivo è raffreddato tramite Ventola
Controllabile via stand-alone; Art-Net; DMX; RDM; controllo della musica via microfono
