Données techniques
Alimentation électrique:230 V AC, 50 Hz
Puissance totale de raccordement:5,00 W
Dimension:Largeur : 32 cm
Profondeur : 18 cm
Hauteur : 8 cm
via 12-20 V DC, 250 mA power unit included in the delivery
Number of control channels:16
Integrated programs:30
Sound-control:via built-in microphone or via audio-input
Audio-input:RCA
Audio-sensitivity:0.1-1 V
DMX512 output:3-pin XLR connector with polarity selector
imensions (L x W x H):320 x 180 x 80 mm
Weight:2 kg
Unités de conditionnement
UCEANPoidsDimension
140263971298233,15 kg45,5cm x 25cm x 15,5cm
4402639715249413,70 kg62,5cm x 48cm x 29,5cm
Téléchargements
Spécifications
Toutes les images
NomVersionLangue
70064650-Images-.zip

EUROLITE CLX-16 DMX lighting controller

EUROLITE

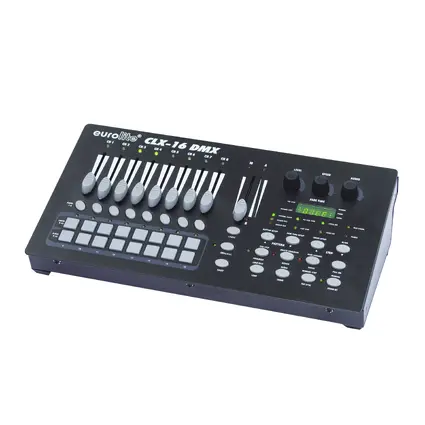

EUROLITE CLX-16 DMX lighting controller

No. 70064650

DMX lighting controller 16 channels

  • 8 channel-faders with LED
  • 8 channels switchable via Latch-buttons
  • Fade Time button for adjusting the step time
  • Master-fader with LED for adjusting the total output level
  • Audio-control with LED for adjusting the music sensitivity
  • Speed-control for adjusting the program-speed
  • Flash-button per channel and master-flash (Full On-button)
  • LED-display of all modes
  • 30 freely programmable programs
  • Dimmer: Manual control of the channels via sliders
  • Full On: all channels can be switched on together
  • Program speed adjustable via speed-fader or Tap Sync-button
  • Sound-control via external signal or integrated microphone
  • Sound to light via RCA socket
  • Foot switch connection via 9-pin Sub-D socket
  • Power supply via included power unit
