Données techniques

Tube porteur:	50 mm x 2 mm
Procédé de soudure:	Impulsion WIG
Matière de soudure:	AlMg 5
Matériau du tube:	AlMgSi 0,5
Couleur:	Couleurs alu
Entretoise diamètre x épaisseur:	12 x 2 mm
Poids:	2,65 kg

Unités de conditionnement

UC	EAN	Poids	Dimension
1	4026397085662	3,15 kg	59,5cm x 60cm x 22cm

Pièces de rechange

Téléchargements

Spécifications

Nom	Version	Langue
Spécifications en PDF
Étiquette de l'article
Spécifications en PDF neutre
Étiquette de l'article neutre

Illustration

Nom	Version	Langue
60300750-Illustration-51910-Illustrations-PBT-de.zip (8 MB)	0.0000	de

Toutes les images

Nom	Version	Langue
60300750-Images-.zip

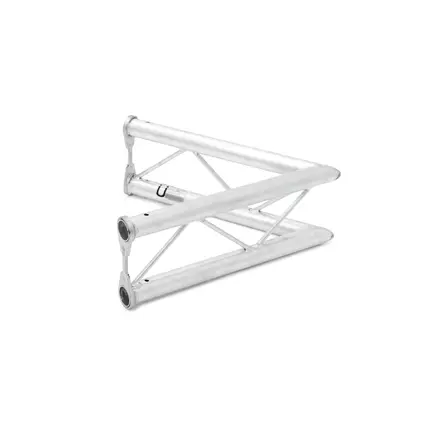

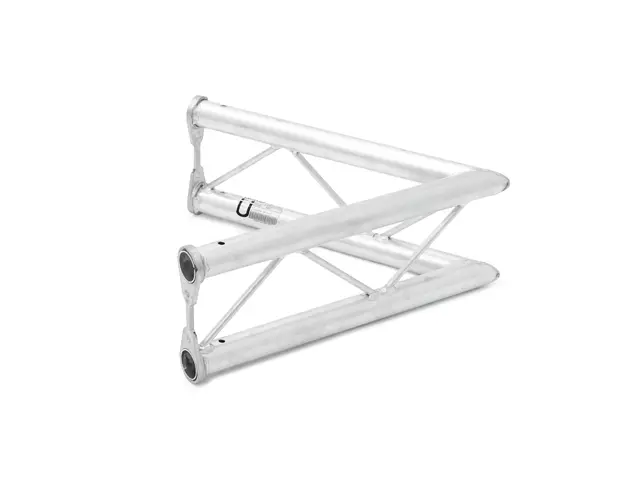

ALUTRUSS BISYSTEM PV-20 2-way 60° vertical

ALUTRUSS BISYSTEM PV-20 2-way 60° vertical

L'article n'est plus disponible.

No. 60300750

BISYSTEM 2-point truss system
BISYSTEM is a 2-point truss system made of aluminum. The individual elements are connected via two tube fasteners and two M10 bolts and nuts.

The two main chords are made of 50 mm aluminum tube with 2 mm wall thickness and offer a good relation between strength and weight. The braces have a diameter of 12 mm with 2 mm wall thickness and leave enough space for installing couplers, hooks and clamps.

With 238 mm outer dimensions, BISYSTEM is a relatively compact truss system for higher loads. BISYSTEM is mainly designed for permanent installations in shops, discotheques and theatres.

By using the optional rapid snap connectors, this system can also be used for fair installations and event installations.

Altogether a universal truss system impressing with its wide range of standard system lengths, corners and accessory.

Système de traverses 2 points

High-quality aluminum-tubes with 50 mm in diameter
Easy installation
Low weight
For exhibition and shop installers, discotheque and theatre installations
1 x Connection set included
Direction vertical
Tube porteur: 50 mm
Made in Europe
