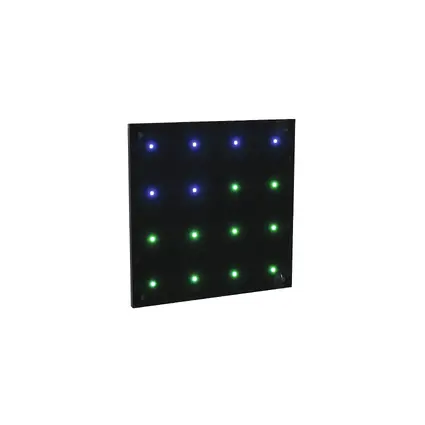

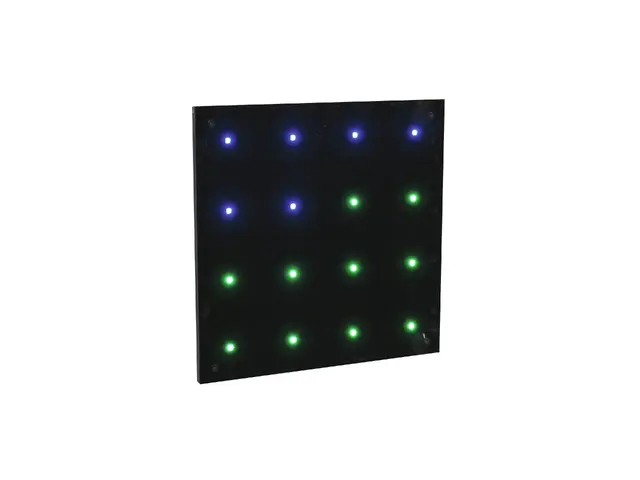

Pixel spot 3-en-1 avec 16 pixels
EUROLITE LED Pixel Spot 16 DMX

svg
svg
120°
svg
svg
svg
EUROLITE

Pixel spot 3-en-1 avec 16 pixels

EUROLITE LED Pixel Spot 16 DMX

Caractéristiques

Pixel spot 3-en-1 avec 16 pixels

  • Looks like a panel, is mounted like a spot
  • Operable in stand-alone mode with Master/Slave function or via DMX interface
  • DMX-512 control possible via any commercial DMX-controller (occupies 48 channels)
  • Sound-control via built-in microphone
  • Speed of the 22 internal programs and color change in Auto mode adjustable via dip switches
  • Each of the 16 Tricolor LEDs can be controlled individually
  • Mounting bracket for installation on a truss system
  • Locking possibility at the mounting bracket
  • Feed-through output allows to power another device
  • After every 8 LED Pixel Spots the fixtures must have a renewed connection with the power mains
  • Switch-mode power supply, automatic power supply adaption between 90 and 240 Volts without power selector
  • Connection via enclosed IEC power cord with safety-plug
  • Effet stroboscope
  • L'appareil est refroidi par refroidissement par convection passive
  • Commandé via stand-alone; DMX
  • Avec un Angle de départ de 120°
Données techniques
Alimentation électrique:100-240 V CA, 50/60 Hz
Puissance totale de raccordement:5,00 W
Type de protection:IP20
Type de lampe:Lampe LED
Refroidissement:Refroidissement par convection passive
Commande:Stand-alone; DMX
Angle de départ:120°
Angle de départ (1/2 pic):120°
Couleur du boîtier:Noir
Dimension:Largeur : 25 cm
Profondeur : 25 cm
Hauteur : 16,2 cm
Poids:1,5 kg
DMX channels:48
DMX connection:3-pin XLR
Sound-control:via built-in microphone
LED Type:Tricolor, SMD 5050
LED number:16
Beam angle:120°
Pixel pitch:62.5 mm
Dimensions (L x W x H):250 x 250 x 162 mm
Spécifications juridiques
Produit spécial:Non destiné à l'éclairage de la pièce dans les ménages
Utilisation:Éclairage pour effets de spectacle
Unités de conditionnement
UCEANPoidsDimension
140263975004171,80 kg29,5cm x 29,5cm x 15cm
440263975004248,25 kg33cm x 33cm x 62cm
