LED controller with wireless touch remote control for RGB LED strips 12-24V
EUROLITE TP-340 LED Controller

L'article n'est plus disponible.

Réf. 50533650

Caractéristiques

LED controller with wireless touch remote control for RGB LED strips 12-24V

Compact control unit for LEDs, in particular RGB LED strips 12-24 V
For controlling red, green and blue LEDs
3 separate control channels, thus individual color mixing possible (with RGB LEDs only)

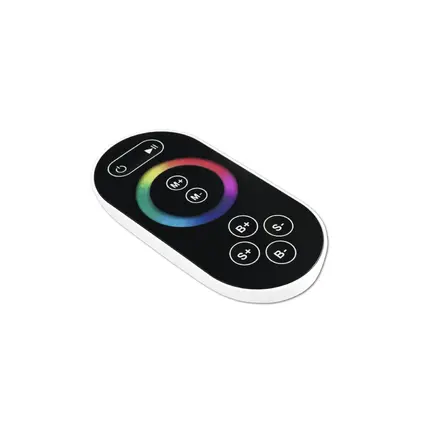

Ergonomic, user-friendly wireless remote control:
Color selection via touch-sensitive color wheel
Brightness can be adjusted via 2 push-buttons
Built-in programs for color change or color fade with pause function
Adjustable program speed and brightness
Automatic switch-off
Power supply via 2 x battery AAA size (not supplied)
Bare cable ends for connecting the LED strips
Matching power supply units E6505632 12V/1A, E6505631 12V/4A available as accessory (e.g. E6505632 12V/1A, E6505631 12V/4A)
License-free and approved in the EU

Données techniques

Batterie:	2 x Micro (AAA) (non incluse dans la livraison)
Dimension:	Largeur : 5 cm Profondeur : 3,5 cm Hauteur : 2,2 cm
Power supply:	12-24 V DC
Maximum load:	3 x 2 A
Control unit:
Weight:	30 g
Remote control:
Carrier frequency:	433 MHz
Range:	approx. 20 m
Dimensions (L x W x H):	113 x 55 x 18 mm
Weight:	110 g

Unités de conditionnement

UC	EAN	Poids	Dimension
1	4026397499155	0,13 kg	12cm x 8,5cm x 4cm
78	4026397500226	10,40 kg	51cm x 28cm x 31,5cm
85	4026397499162

Assistance

Pièces de rechange

Aucune pièce de rechange disponible.
