19" preamplifier with media player, DAB+, wireless audio, IR remote and RS485 control option
INTUSONIC PAA42+ Dual Output Stereo Media Preamplifier

svg
svg
svg
svg
svg
svg
svg
svg
INTUSONIC

19" preamplifier with media player, DAB+, wireless audio, IR remote and RS485 control option

INTUSONIC PAA42+ Dual Output Stereo Media Preamplifier

Disponible dans env. 2 semaines.
Prixsur demande
ajouter au panier
Trouver un revendeur
Prix de catalogue hors TVA 19%
Prix éventuellement différents dans les magasins spécialisés.
Réf. 12604186

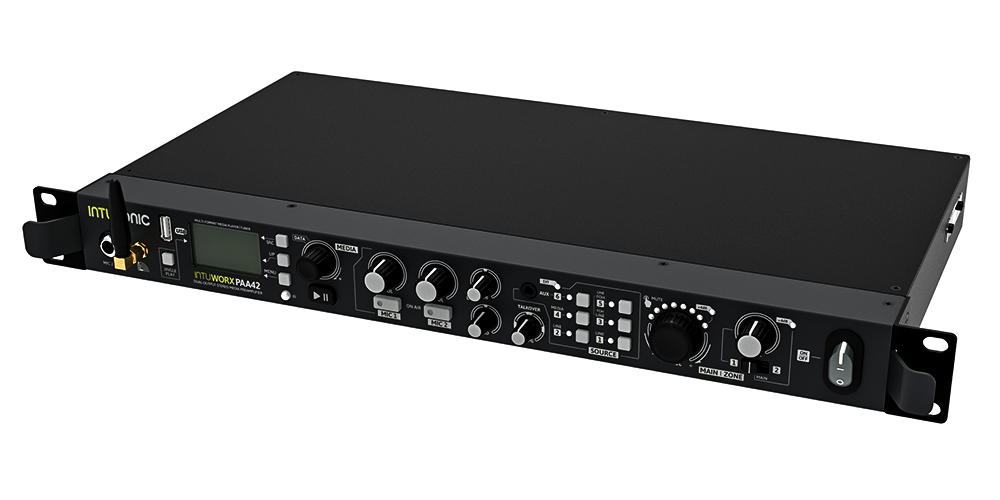

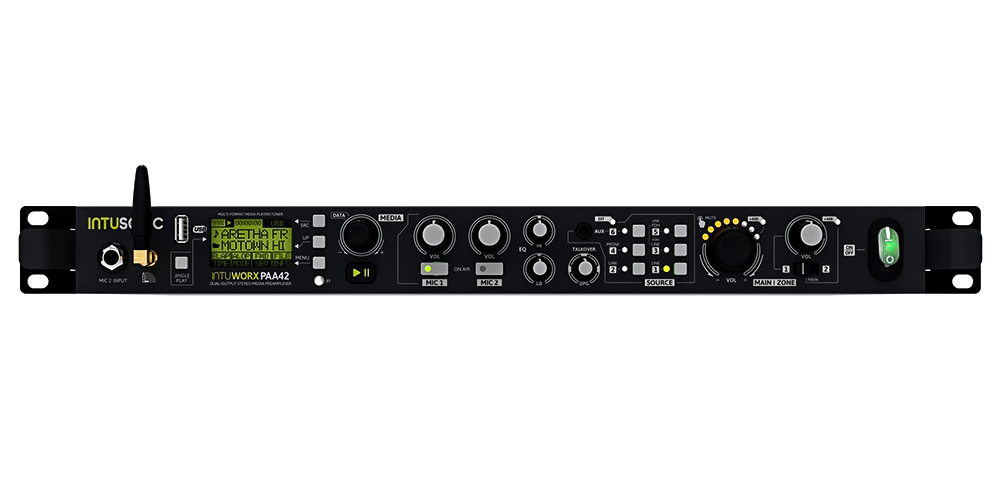

The INTUWORX PAA42+ is a media preamp/mixer which combines a 6-input stereo preamplifier with 2 microphone inputs and an internal media player. The microphone section features phantom power and high-pass filters, and allows automatic attenuation of the music signal (talkover/priority), making this unit a popular choice with fitness instructors. The internal media player offers USB replay, DAB+ and FM reception, LINKOUSTIC 5.0 wireless audio link and an IR remote control. The two master outputs with fire evacuation facilities can work mono or stereo, and the main output can be remotely controlled via RS485 with the optional VRE11 wall panel. The second output also offers the direct choice of selected inputs as sources, making it effectively a zone output. A dedicated priority line input for a chime or message player, as well as one of the stereo inputs being balanced for long cable runs, complete this unit.
Caractéristiques

19" preamplifier with media player, DAB+, wireless audio, IR remote and RS485 control option

  • Commandé via Télécommande infrarouge; RS 485; LINKOUSTIC 4.2 Wireless Audio Link
  • 2,4 GHz sans inscription et sans frais dans le monde entier
  • Écran LCD
  • (19") 48,3 cm installation en rack
  • Boîtier du pupitre
  • Pour des domaines d'application tels que: Installation; Restaurants, bars et hôtels
  • Vous trouverez de plus amples informations sur ce produit dans la rubrique « Téléchargements » de la fiche technique
Données techniques
Alimentation électrique:115/230 V CA, 50/60 Hz
Puissance totale de raccordement:Max. 12 W
Type de protection:IP20
Classe de protection:SK I
Branchement électrique:Alimentation électrique via Appareils froids (M) Câble d'alimentation à prise contact de protection (inclus dans la livraison)
Tramite
Plage de fréquence:20 - 20000 Hz
Rapport signal/bruit:>102 dB
Distorsion harmonique:<0,015 % avec 1 kHz
Commande:Télécommande infrarouge; RS 485; LINKOUSTIC 4.2 Wireless Audio Link
Bluetooth:Version: 5,0
Lecteur audio:USB + Bluetooth; DAB+; Radio FM
Bande de fréquences:2,4 GHz
Atténuation de la diaphonie:>63 dB
Type d'écran:Écran LCD
Éléments de commande:Interrupteur d'alimentation, Contrôle du volume, Talkover réglable, Commutateur d'alimentation fantôme

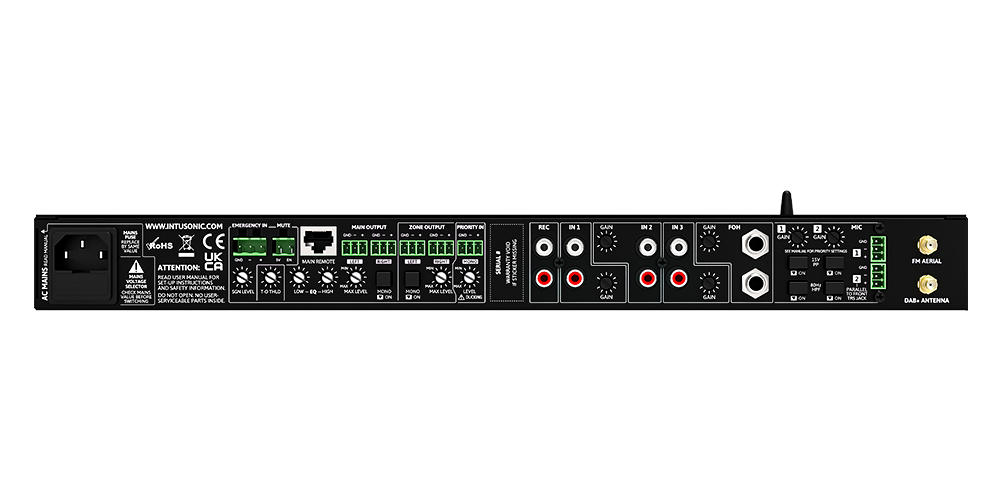

Connexions:Entrée: Line via 3 x RCA stéréo
Entrée: Line via 2 x Câble jack 6,3 mm (sym.)
Entrée: Microphone via 2 x Câble jack 6,3 mm (sym.)
Entrée: Microphone via Borne enfichable à vis
Sortie: Master via Borne enfichable à vis
Sortie: Zones via Borne enfichable à vis
Sortie: Rec. via RCA stéréo
Mise en sourdine via Borne enfichable à vis
RS 485 via 1 x RJ-45 (F) version encastrable
Emergency via Borne enfichable à vis
Priority via Borne enfichable à vis
Antenne via 2 x SMA (F) version encastrable
Format de la musique:MP3, WAV; FLAC, APE
Appareils de stockage appropriés:Appareils USB max. 64GB (FAT 32)
Port USB:USB 2.0, Typ B
Couleur:Noir
Conception du boîtier:(19") 48,3 cm installation en rack
Boîtier du pupitre
Dimension:Largeur : 48,3 cm
Profondeur : 25 cm
Hauteur : 4,4 cm
Poids:2,90 kg
Unités de conditionnement
UCEANPoidsDimension
150605029235233,50 kg53,5cm x 33cm x 9cm
44506050292352114,80 kg55,5cm x 39,5cm x 36cm
