Digital stereo active crossover with USB interface

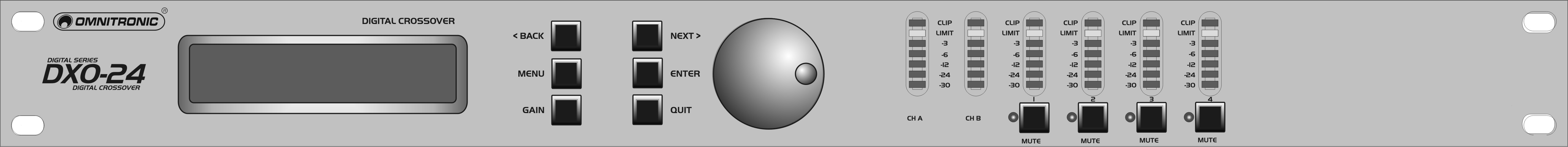

OMNITRONIC DXO-24 Digital crossover

L'article n'est plus disponible.

Réf. 10356320

Caractéristiques

Digital stereo active crossover with USB interface

2 analog inputs and 4 analog outputs (servo-balanced XLR connectors)
Active frequency filter with slopes up to 48 dB/octave split up the audio signal into different frequency bands
USB port, compatible to PCs (USB cable included)
Incl. software editor for remote control via PC: store, transfer, and manage your presets
4 basic configurations
5-band parametric EQ per output
Up to 7 ms signal delay for the inputs and outputs adustable
Delay displayed in milliseconds, meters, feet and frame/second
Output limiter with ajustable limits and automatic attack and release settings as overload protection for your amplifying system
Lock function for protecting the program settings
Phase invert switch per output
Switch-mode power supply
Rack installation, 1 U

Données techniques

Alimentation électrique:	100-240 V CA, 50/60 Hz
Puissance totale de raccordement:	30,00 W
Dimension:	Largeur : 48,3 cm Profondeur : 22,3 cm Hauteur : 4,45 cm
Poids:	2,30 kg
Inputs:	2 x XLR, active, balanced with automatic correction for unbalanced loading
Gain range:	±15 dB
Input impedance:	10 kohms
Frequency range:	15-20000 Hz, ±0.25 dB
	15-40000 Hz, ±3 dB
Outputs:	4 x XLR, active, balanced
Output impedance:	<50 mohms (electronically balanced)
Output gain range:	±21 dB
Maximum output level:	+20 dBu
Frequency range:	15-20000 Hz, ±0.25 dB
	15-40000 Hz, ±3 dB
Distorsion:	0,005 %, 20-20000 Hz
S/N ratio:	112 dB (22-22000 Hz)
Channel separation:	80 dB (30-20000 Hz)
Filter:
Slopes:	6, 12, 18, 24 or 48 dB/octave
Type:	Bessel, Butterworth or Linkwitz-Riley
Crossover frequency:	15-20000 Hz
Delay:	0~7 ms
Dimensions (WxHxD):	482 x 44 x 223 mm

Unités de conditionnement

UC	EAN	Poids	Dimension
1	4026397177756	2,75 kg	52cm x 24,5cm x 8cm
10	4026397179309	28,60 kg	54cm x 52,5cm x 44cm
