Passive CAT-5 extender for audio and video signals

EUROLITE AVLD-1 CAT-5 extender

The article is no longer in our assortment.

Item no. 81013020

Print product

Product badge

Here you find the manual and downloads for
EUROLITE AVLD-1 CAT-5 extender

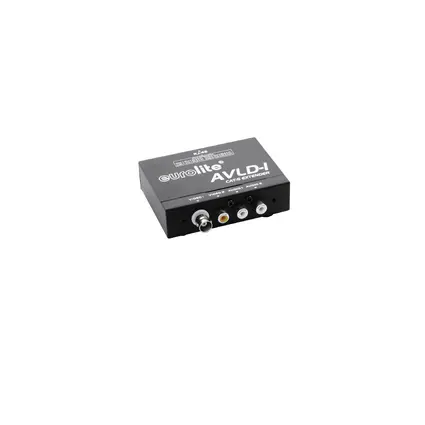

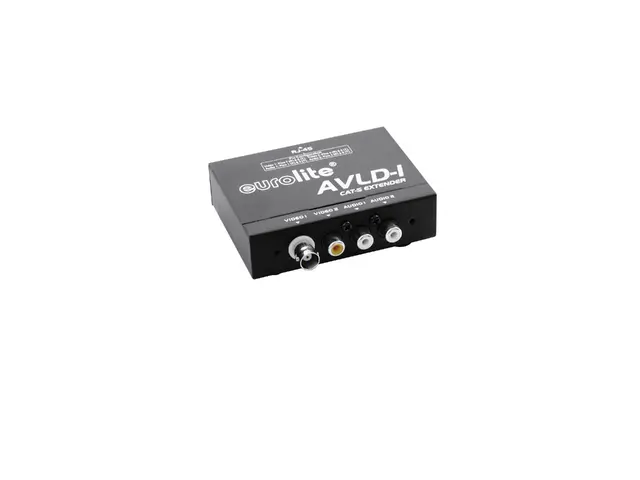

The EUROLITE AVLD-1 is a passive CAT-5 extender which allows transmission of composite video and stereo audio signals over a single network cable (UTP/CAT-5 and higher) in a point-to-point connection. Its compact design and easy installation makes the extender ideal for corporate, education and home cinema use or any other situation requiring AV distribution. For audio signals, a maximum distance of 600 meters is possible, for video signals a maximum of 300 meters.

Features

Passive CAT-5 extender for audio and video signals

Transmits audio signals up to 600 meters and video signals up to 300 meters
For universal applications as a transmitter or receiver
For unshielded twisted pair cables and CAT-5 or higher network cables
Cable connection via RJ45 terminal
Passive, no power supply required

Technical specifications

Dimensions:	Width: 9,3 cm Depth: 8,3 cm Height: 3,1 cm
Suitable transmission cable:	twisted pair cable, e.g. CAT-5/5e/6 0.25 mm² (AWG 24)
Impedance:	100 ohms/ 1 MHz
Max. capacitance:	200 pF/ft
Max. cable length:	600 m for audio signals, 300 m for video signals
Audio impedance:	600 ohms RCA
Video impedance:	75 ohms RCA/75 ohms BNC
Connections:	1 x stereo audio, RCA
	2 x video, RCA/BNC
Operating temperature:	0 to 55 °C
Power supply:	not required
Dimensions (L x W x H):	93 x 83 x 31 mm
Weight:	20 g

Packaging units

PU	EAN	Weight	Dimensions
1	4026397427318	0,28 kg	20cm x 15cm x 3,5cm
4	4026397438635	1,20 kg	21cm x 16cm x 18cm
12	4026397430479	4,00 kg	49,5cm x 22,5cm x 20cm

Support

Spare parts

No spare parts available.
