Passive speaker with 10" woofer, 1" driver and 200 W RMS

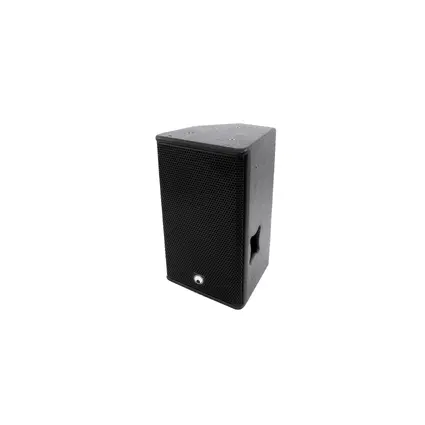

OMNITRONIC PAS-210-100V PA Speaker System

Passive speaker with 10" woofer, 1" driver and 200 W RMS-MainBild
download image
Detail images (7 overall)
Passive speaker with 10" woofer, 1" driver and 200 W RMS-Bild-1
Passive speaker with 10" woofer, 1" driver and 200 W RMS-Bild-2
Passive speaker with 10" woofer, 1" driver and 200 W RMS-Bild-3
Passive speaker with 10" woofer, 1" driver and 200 W RMS-Bild-4
Passive speaker with 10" woofer, 1" driver and 200 W RMS-Bild-5
Passive speaker with 10" woofer, 1" driver and 200 W RMS-Bild-6
Passive speaker with 10" woofer, 1" driver and 200 W RMS-Bild-7
OMNITRONIC

Passive speaker with 10" woofer, 1" driver and 200 W RMS

OMNITRONIC PAS-210-100V PA Speaker System

The article is no longer in our assortment.
Check out the alternatives:
11036961
OMNITRONIC ODP-208T Installation Speaker 100V white
Stock for approx. 12 wk(s)
269,00 €
11036960
OMNITRONIC ODP-208T Installation Speaker 100V black
Stock for approx. 12 wk(s)
269,00 €
Item no. 80710465
Print product
Product badge
Here you find the manual and downloads for
OMNITRONIC PAS-210-100V PA Speaker System
Features

Passive speaker with 10" woofer, 1" driver and 200 W RMS

  • Rugged full-range top speaker with 100 V technology
  • 2-way bass reflex system with 10" bass speaker and 2.5 cm tweeter (1")
  • Passive 2-way crossover
  • Constant directivity horn with coil driver
  • Balanced frequency range with high sound pressure
  • Very high articulation
  • Housing made of several layer, 18-mm birch plywood
  • Scratch-resistant lacquer surface
  • Impact-resistant steel grille with acoustic foam
  • Wall mounting kits optionally available
  • Suitable for stadiums or gyms where higher volumes are needed as with conventional 100 V systems
  • For further information about this product, please refer to the Data Sheet under "Downloads"
Technical specifications
Power:Program: 400W
Rated: 200W RMS
Frequency range:60 - 20000 Hz
Speaker:1 x woofer 10"
Tweeter 1"
Type of speaker:Compact cabinet speaker
Dimensions:Width: 32,5 cm
Depth: 29,5 cm
Height: 53 cm
Weight:19,40 kg
Input voltage:100 V
Connection: open wires (1 m)
Components:25 cm woofer (10"), 2.5 cm horn (1")
Sensitivity:97 dB
Maximum SPL:123 dB
Dispersion angle:50-100° x 55°
Dimensions (H x W x D):530 x 325 x 295 mm
Packaging units
PUEANWeightDimensions
1402639720335622,50 kg35cm x 33cm x 58cm
Accessories
Loading accessories. Please wait...
Support
Spare parts
E1000201
frontgrille for PAS-210
