Flexible LED pixel string
EUROLITE PSS-4/150 Pixel String

The article is no longer in our assortment.

Item no. 80503361

Features

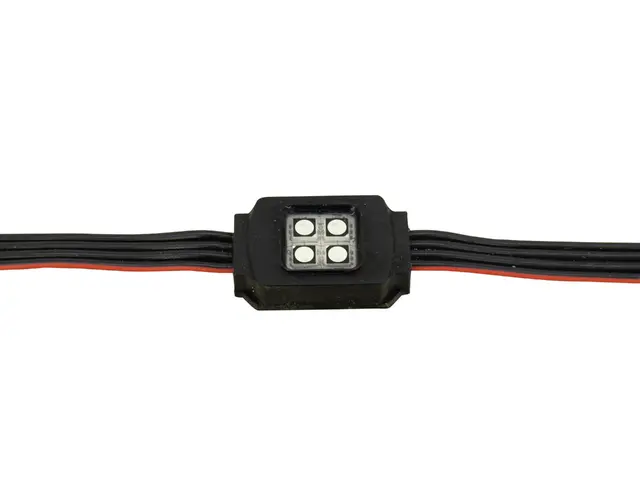

Flexible LED pixel string

Flexible pixel string with ultra-bright TCL LEDs
32 pixels with 4 LEDs each
Bright and colorful projection of videos and graphics
Can be arranged into virtually any form even on uncommon surfaces for creative freedom
Modular concept allows build-up of large video displays for clubs, stages, shops and various other environments - also for billboards on buildings
Can be extended up to 40 meters with 340 pixels
IP65 for indoor and outdoor use
Pixels individually controllable
Independent control of color, effects and animations
Control per network protocol with PC software or PSS media player (accessories)
Control also possible per MADRIX, DMX and Artnet
Large operating range from -20° to +50° C

Technical specifications

Power consumption:	260,00 W
IP classification:	IP65
Dimensions:	Width: 2,3 cm Depth: 1 cm Height: 3,8 cm
Weight:	400 g
Pixel pitch:	150 mm
Pixel configuration:	4 RGB LEDs (TCL)
Pixels per string:	32
Pixel size (W x D x H):	23 x 38 x 10 mm
String length:	5 m
Max. string length:	40 m
Total max. pixels:	340
Brightness:	2.5 cd per pixel
Bit depth per color:	16
Bit depth per pixel:	48
Viewing angle:	120° x 120°
Lifetime:	approx. 80000 hours
Control protocol:	TCP/IP
Control system:	PSS-4
Display mode:	synchronous to video source
Protection grade:	IP65
Material:	clear polycarbonate
	black cable
Operating temperature:	-20 to 50 °C
Power supply:	15 V DC via control system PSS-4
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting

Packaging units

PU	EAN	Weight	Dimensions
1	4026397423495	0,46 kg	30cm x 20cm x 8cm
2	4026397449419	1,15 kg	30cm x 21cm x 16cm

Support

Spare parts

No spare parts available.
