Receiver interface of network control system LED Studio

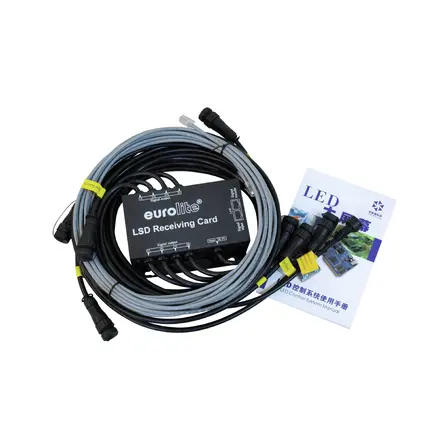

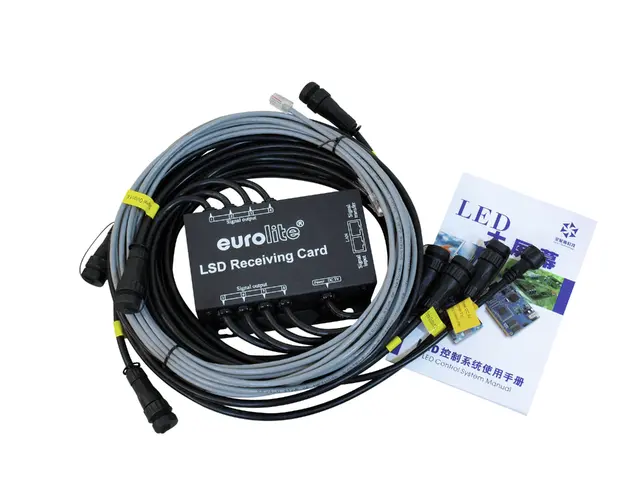

EUROLITE LSD Receiving card

Receiver interface of network control system LED Studio

• Receiving interface for controlling LED soft displays with a computer
• For operation, the optional control system consisting of sending card and software LED studio (80503130) is required
• 1 receiving interface allows control of 128 (W) x 128 (H) pixels
• Serial connection of receiving interfaces possible for control of up to 1280 (W) x 1024 (H) pixels
• Multiple receiving interfaces can be controlled by one sending card
• Maximum distance between sending card and receiving interface: approx. 100 m
• 8 data signal outputs (each controls 128 (W) x 16 (H) pixels) for connection to LED display panels
• Ethernet input and output
• Power supply via LED soft displays
• Supported files: text, word documents, all images (BMP, JPG, GIF, PCX...), all video (MPG, MPEG, MPV, AVI, VCD, DVD, SWF, RM, RMJ, ASF, MOV, etc.)
