LED soft displays
EUROLITE LSD-50 MK2 (H)2.4m x (W)1.6m

The article is no longer in our assortment.

Check out the alternatives:

No. 80503248

Features

LED soft displays

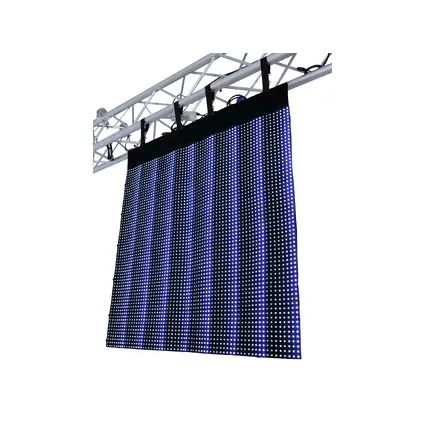

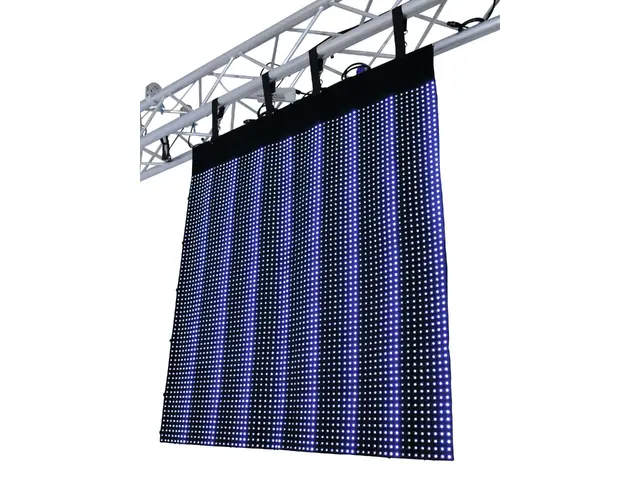

Flexible displays with tricolor RGB LEDs (type SMD 5050) for bright and colorful projection of videos and graphics
Improved version with even brighter LEDs
Proven connector system with push buttons and hook-and-loop connections
Modular display concept allows the build-up of large areas, ideal for outdoor use with large viewing distances
Bendable and foldable PVC material suitable for various shapes, e.g. columns, circles, angles
Fast and uncomplicated installation, indoor and outdoor (IP44)
Truss suspension via built-in belts
Water-repellent and flame-resistant
Low weight and small volume for convenient transport
Easy maintenance - LEDs can be replaced without difficulty
Controllable via optional network components and PC software
All-in-one control system T9 (80503301): network interface and software LED Show T9 - ideal system for mobile use with notebooks with 1-gigabit NIC
Control system LED studio: receiver interface (80503311), PCI sending card and software LED Studio (80503130)
Recommended media software: MADRIX
Switch-mode power supply for operation between 100 and 240 volts
Power output for passing on the power supply
Available in different sizes and pixel pitches
Custom sizes available upon request (in 0.8 m units)
1536 powerful LEDs SMD 5050 3in1 TCL RGB (homogenous color mix)

Technical specifications

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	12,00 W
IP classification:	IP44
LED type:	1536 x SMD 5050 3in1 TCL RGB (homogenous color mix)
Dimensions:	Width: 160 cm Height: 240 cm
Weight:	13,87 kg
Resolution (W x H):	32 x 48 pixels
Pixel pitch:	50 mm
Pixel density:	400/m²
Pixel configuration:	tricolor RGB LEDs, type SMD 5050
Lifetime:	approx. 100000 hours
Display port:	DVI/RJ45
Display mode:	synchronous to video source
Drive mode:	1/8 scan
Screen resolution:	max. 1280 x 1024 (LED Studio)
	max. 1024 x 896 (LED Show T9)
Brightness:	520 cd/m² (nits)
Viewing angle:	110°
Frame rate:	60 Hz
Data refresh rate:	600 Hz
Colors:	16.7 million (R 256, G 256, B 256)
Protection grade:	IP44
Operating temperature:	-10 to 45 °C
Humidity:	10 to 90 %
Dimensions (W x H):	1600 x 2400 mm
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting
