Simple controller for 4 RGB spotlights as well as RGB KLS systems

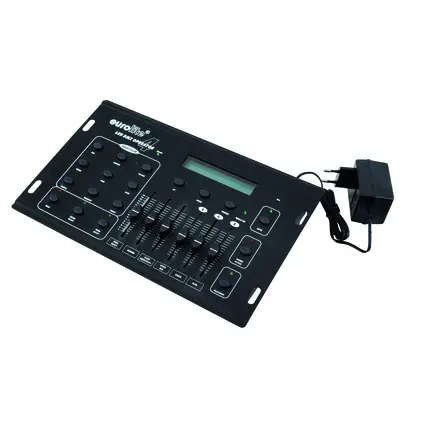

EUROLITE DMX LED Operator 4 Controller

The article is no longer in our assortment.

Item no. 70064504

Print product

Product badge

Here you find the manual and downloads for
EUROLITE DMX LED Operator 4 Controller

The easy way...
The EUROLITE DMX LED Operator 4 is a DMX controller especially designed for the EUROLITE LED spots and LED effects with 5 DMX channels plus KLS series, LED BAR RGB and a smoke-machine.

This controller features pre-programmed presets and colors, which can easily be displayed by pressing one button. Save your precious time for programming the individual DMX channels in order to display this color or that color.

Features

Simple controller for 4 RGB spotlights as well as RGB KLS systems

50 control channels only suitable for matching LED effects
4 LED parcans can be controlled individually
Select color mode for choosing single colors
Pause function
Blackout function
Program select fader for selecting the internal programs
Speed fader for adjusting the program speed
Strobe effect with adjustable speed
Additional fogger button for direct control of a DMX smoke machine (CH-49/50)
Rugged metal housing
Integrated show programs
Can transmit up to 50 DMX channels
Control via DMX; Sound to light via Microphone; Sound to light via RCA (F) mounting version; stand-alone
Desktop console housing
For further information about this product, please refer to the Data Sheet under "Downloads"

Technical specifications

Power supply:	230 V AC, 50 Hz 9-12 V DC 300 mA
Pin configuration:	Inside + / outside -
Power consumption:	4,00 W
IP classification:	IP20
Power connection:	Mains input via Coaxial power connector (M) mounting version power supply cord with AC adapter (provided)
DMX channels:	Output 50
DMX output:	1 x 3-pin XLR (F) mounting version
Control:	DMX; Sound to light via Microphone; Sound to light via RCA (F) mounting version; stand-alone
Housing color:	Black
Color:	Black
Housing design:	Desktop console housing
Dimensions:	Width: 32 cm Depth: 19 cm Height: 6 cm
Weight:	1,55 kg

Packaging units

PU	EAN	Weight	Dimensions
1	4026397389951	1,77 kg	43cm x 23,5cm x 11,5cm
4	4026397389944	8,00 kg	50cm x 44cm x 25,5cm

Accessories

Loading accessories. Please wait...

Support

Spare parts

Power Supply 12V/500mA

Power socket 2-pin bent supply input

CPU LED Operator 4 Ver. 2.0

More 5 spare parts
