Dimmer bar for chaser or DMX operation
EUROLITE DTB-405 4-channel Dimmerbar 5A

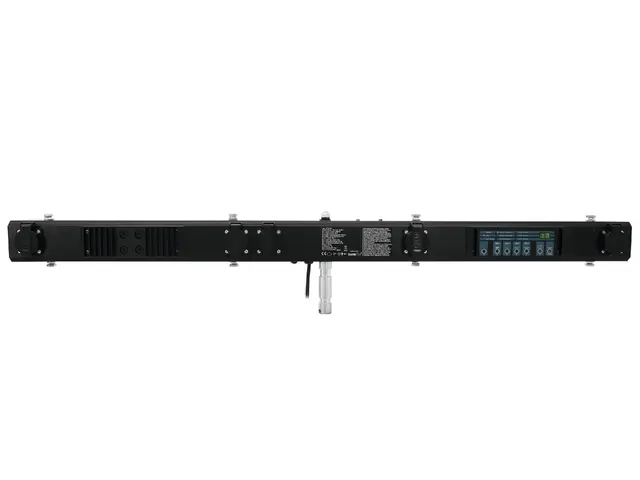

Dimmer bar for chaser or DMX operation-MainBild
download image
Detail images (3 overall)

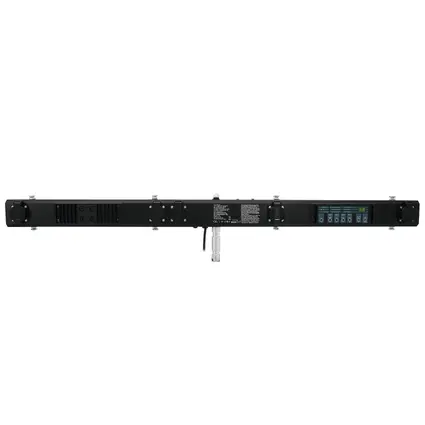

Dimmer bar for chaser or DMX operation-Bild-1
Dimmer bar for chaser or DMX operation-Bild-2
Dimmer bar for chaser or DMX operation-Bild-3
EUROLITE

Dimmer bar for chaser or DMX operation

EUROLITE DTB-405 4-channel Dimmerbar 5A

The article is no longer in our assortment.
Item no. 70064420
Print product
Product badge
Here you find the manual and downloads for
EUROLITE DTB-405 4-channel Dimmerbar 5A
Features

Dimmer bar for chaser or DMX operation

  • Makes the installation of your lighting system really easy
  • Installed directly on the stand or crossbeam
  • With 4 spot connections
  • Outputs via 4 safety sockets
  • Can be used either as a 4-channel chaser controller or a DMX dimmer pack
  • 6 different operation modes
  • 16 pre-programmed chaser patterns
  • Chaser direction can be inverted
  • Chaser speed controllable or sound-controlled
  • Sound control via built-in microphone
  • Remote control via optional footswitch
  • Only for professional use

device

  • Cordless, flexible and versatile

Package contents

  • 1 x device
Technical specifications
Power supply:230 V AC, 50 Hz
Output current:Max. 5 A per channal
Dimensions:Width: 1,3 m
Depth: 10 cm
Height: 10,5 cm
Weight:5,05 kg
Device
Battery pack type:1 x nickel metal hydride 3,6 V,
Max. power output:3680 W
Max. total current:16 A
Max. output/channel:1150 W
Max. current/channel:5 A
Fuse:F 6.3 A, 250 V
Maximum load per fixation point:4 kg
Max. spaced braceload:16 kg
Max. centered braceload:25 kg
TV spigot:D = 28 mm
Dimensions (L x W x H):1300 x 100 x 105 mm
Packaging units
PUEANWeightDimensions
140263971080576,00 kg135cm x 21cm x 27cm
4402639710836127,35 kg136cm x 44cm x 58cm
Accessories
Loading accessories. Please wait...
Support
Spare parts
E2011130
Contact-switch DTB-405 (4pol/9mm) small
Triac BTA 16-600 B 600V/16A TO-220
E2011105
Fuse 5x20MM 300mA DTB-405
More 4 spare parts
