Installation rope, safety bond, safety

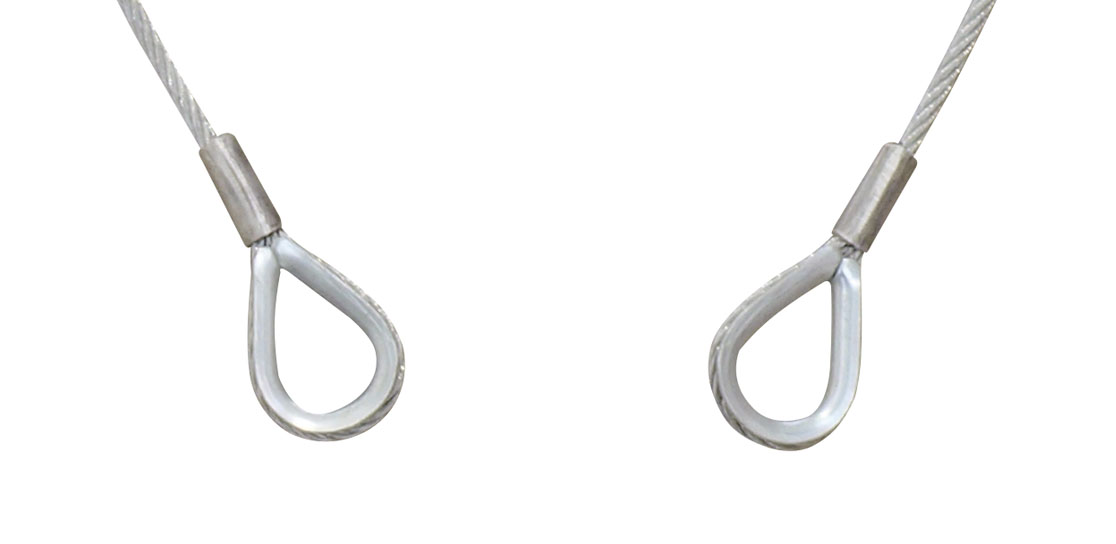

EUROLITE Steel Rope 1000x6mm black with Thimbles

svg
6 mm
EUROLITE

Installation rope, safety bond, safety

EUROLITE Steel Rope 1000x6mm black with Thimbles

Stock for approx. 12 wk(s)
6,90
add to cart
Find a dealer
List price excl. 19% VAT
Prices in retail stores may vary.
Item no. 5801049E
EUROLITE Lifting ropes, safety bonds
The EUROLITE lifting ropes, safety bonds comply with the current regulation of the German professional insurance association as summed up in BGI 810-3:2007-03 Loads above persons. The lifting ropes, safety bonds are constructed in accordance with the European standards DIN EN 12385-4:2008-06 and DIN 56927:2009-03.
The lifting ropes, safety bonds are tested by the LGA, an independent and accredited testing institute. The breaking load testified by the LGA is documented in the test report according to DIN EN 10204 required by the German professional insurance association.
Clearly, every user can install and secure loads above persons with these lifting ropes, safety bonds in all areas where the BGV C1 is required.
Use as attachment gear
These ropes are stamped with a WLL describing the maximum load when used for general lifting purposes. For all areas where the BGV C1 is required, the correct lifting rope must be selected only by table 2 of BGI 810-3:2007-03. According to this table, the maximum load of this rope is 165 kg (single-stranded).
Use as safety bond
The correct safety bond must be selected only by table 9 of BGI 810-3:2007-03. According to this table, the maximum load of this safety bond is 35 kg.
Features

Installation rope, safety bond, safety

  • Round strand rope 6 x 19 with fibre core
  • With two thimbles
  • Suitable for installing and securing loads above persons
  • Complies with DIN EN 12385-4:2008-06 and DIN 56927:2009-03
  • Rope with thimble
  • For further information about this product, please refer to the Data Sheet under "Downloads"
Technical specifications
Maximum load WLL (5-fold):400 kg
Design of the core:6 x 19 FC
Strength classification:1960
Standard:DIN EN 12385-4:2008-06, DIN 56927:2009-03
Nominal tensile strenght of rope:1770 N/mm²
Wire surface:Zinc-plated
Color:Black
Temperature range:-40° C - +100° C
Dimensions:Length: 1 m
Diameter: Ø 6 mm
Weight:200 g
Length weigth:0,0554 kg/m
Packaging units
PUEANWeightDimensions
140263973761280,20 kg14cm x 10,5cm x 6cm
404026397376548
100402639740700620,35 kg51cm x 37cm x 21cm
