Lifting rope, safety bond, safety
EUROLITE Lifting Rope 1500x10mm

svg
1 cm
EUROLITE

Lifting rope, safety bond, safety

EUROLITE Lifting Rope 1500x10mm

available in approx. 12 wk(s)
30,90
add to cart
Find a dealer
List price excl. 19% VAT
Prices in retail stores may vary.
Item no. 58010491
EUROLITE Lifting ropes, safety bonds
The EUROLITE lifting ropes, safety bonds comply with the current regulation of the German professional insurance association as summed up in BGI 810-3:2007-03 Loads above persons. The lifting ropes, safety bonds are constructed in accordance with the European standards DIN EN 12385-4:2008-06 and DIN 56927:2009-03.
The lifting ropes, safety bonds are tested by the LGA, an independent and accredited testing institute. The breaking load testified by the LGA is documented in the test report according to DIN EN 10204 required by the German professional insurance association.
Clearly, every user can install and secure loads above persons with these lifting ropes, safety bonds in all areas where the BGV C1 is required.
Use as attachment gear
These ropes are stamped with a WLL describing the maximum load when used for general lifting purposes. For all areas where the BGV C1 is required, the correct lifting rope must be selected only by calculating with safety-factor 12. According to this calculation, the maximum load of this rope is 450 kg (single-stranded).
Features

Lifting rope, safety bond, safety

  • Round strand rope 6 x 19 with fibre core

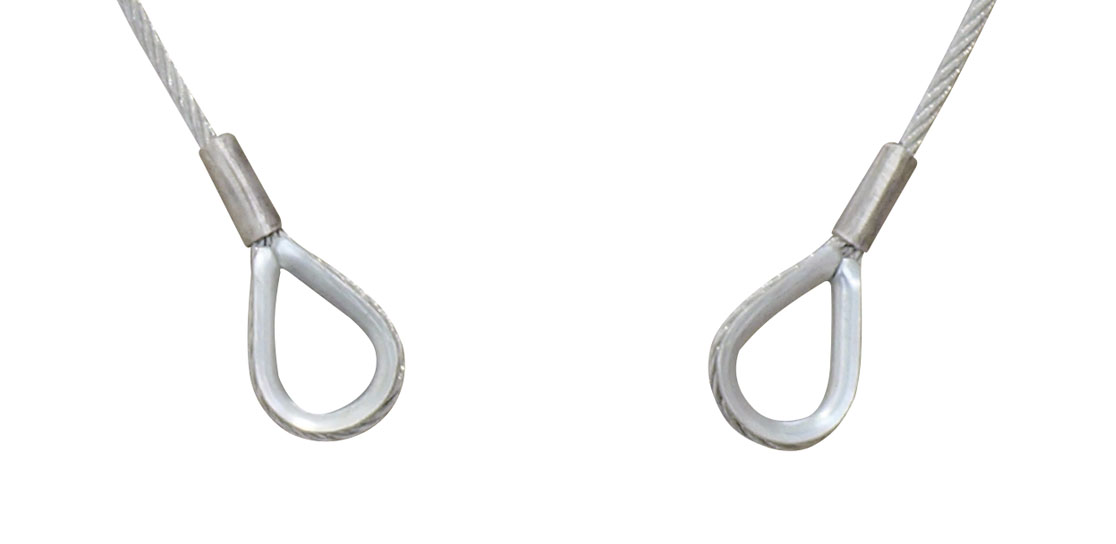

  • With two thimbles
  • Suitable for installing and securing loads above persons
  • Complies with DIN EN 12385-4:2008-06 and DIN 56927:2009-03
  • Rope with thimble and connector
  • LGA tested
  • For further information about this product, please refer to the Data Sheet under "Downloads"
Technical specifications
Maximum load WLL (5-fold):1050 kg
Design of the core:6 x 19 FC
Strength classification:1770
Standard:DIN EN 12385-4:2008-06, DIN 56927:2009-03
Nominal tensile strenght of rope:1770 N/mm²
Wire surface:Zinc-plated
Color:Silver
Temperature range:-40° C - +100° C
Dimensions:Length: 1,5 m
Diameter: Ø 1 cm
Weight:1,47 kg
Length weigth:0,359 kg/m
Packaging units
PUEANWeightDimensions
140263971929191,48 kg31cm x 23cm x 6cm
15402639719292622,25 kg38cm x 28cm x 28cm
20402639757139429,75 kg39cm x 40cm x 28cm
Support
Spare parts
No spare parts available.
Downloads
Loading the documents. Please wait...
Manufacturer information
Steinigke Showtechnic GmbH
Andreas-Bauer-Str. 5
D-97297 Waldbüttelbrunn

+49 931 4061 600
info@steinigke.de
www.steinigke.de/Produktanfrage
Safety instructions and warnings
Specific safety instructions that apply to the product can be found in the operating instructions for the product.
