High-quality safety rope
EUROLITE Safety Bond AG-5 3x600mm up to 5kg sil

svg
3 mm
EUROLITE

High-quality safety rope

EUROLITE Safety Bond AG-5 3x600mm up to 5kg sil

Stock for approx. 12 wk(s)
6,90
add to cart
Find a dealer
List price excl. 19% VAT
Prices in retail stores may vary.
Item no. 58010360
EUROLITE Safety bonds
The EUROLITE safety bonds comply with the current regulation of the German professional insurance association as summed up in BGI 810-3:2007-03 Loads above persons. The safety bonds are constructed in accordance with the European standards DIN EN 12385-4:2008-06 and DIN 56927:2009-03.
The safety bonds are manufactured by a renowned German supplier and are tested by the LGA, an independent and accredited testing institute. The breaking load testified by the LGA is documented in the test report according to DIN EN 10204 required by the German professional insurance association.
Clearly, every user can secure loads above persons with these safety bonds in all areas where the BGV C1 is required.
Features

High-quality safety rope

  • For securing loads over people
  • Round strand rope 6 x 19 with fibre core

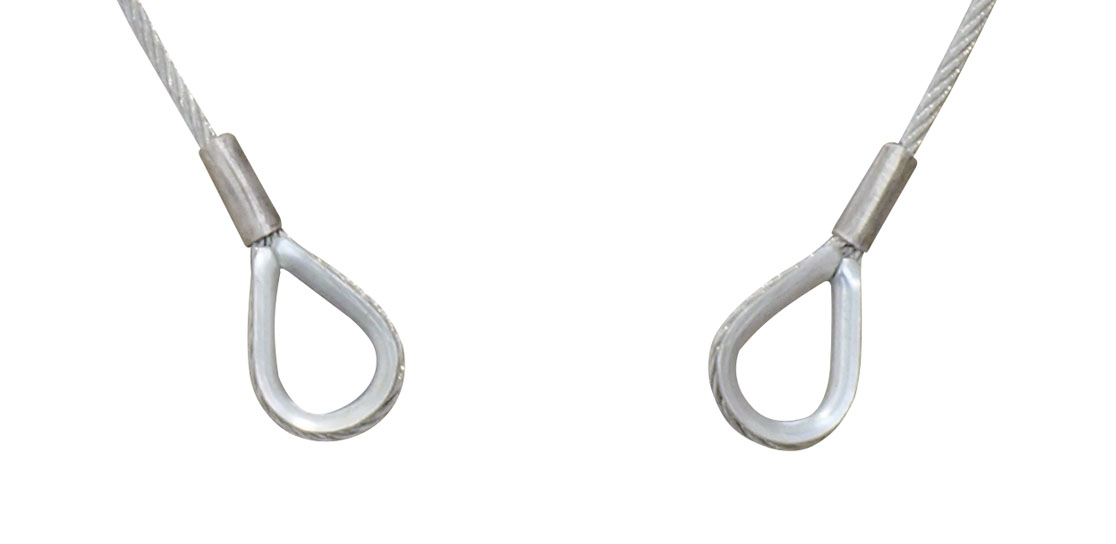

  • With two thimbles
  • 4 mm quick link (form A) included
  • Complies with DIN EN 12385-4:2008-06 and DIN 56927:2009-03
  • Rope with thimble and connector
  • For further information about this product, please refer to the Data Sheet under "Downloads"

Package contents

  • 1 x chain link
Technical specifications
Secured weight (BGV C1):Max. 5 kg
Maximum load WLL (5-fold):100 kg
Design of the core:6 x 19 FC
Strength classification:1770
Standard:DIN EN 12385-4:2008-06, DIN 56927:2009-03
Nominal tensile strenght of rope:1770 N/mm²
Wire surface:Zinc-plated
Color:Silver
Temperature range:-40° C - +100° C
Dimensions:Length: 60 cm
Diameter: Ø 3 mm
Weight:50 g
Length weigth:0,0311 kg/m
Packaging units
PUEANWeightDimensions
140263974912960,05 kg65cm x 2cm x 0,5cm
Support
Spare parts
No spare parts available.
Downloads
Loading the documents. Please wait...
Manufacturer information
Steinigke Showtechnic GmbH
Andreas-Bauer-Str. 5
D-97297 Waldbüttelbrunn

+49 931 4061 600
info@steinigke.de
www.steinigke.de/Produktanfrage
Safety instructions and warnings
Specific safety instructions that apply to the product can be found in the operating instructions for the product.
