PRO mounting clamp for 50 mm tube, maximum load WLL 200 kg

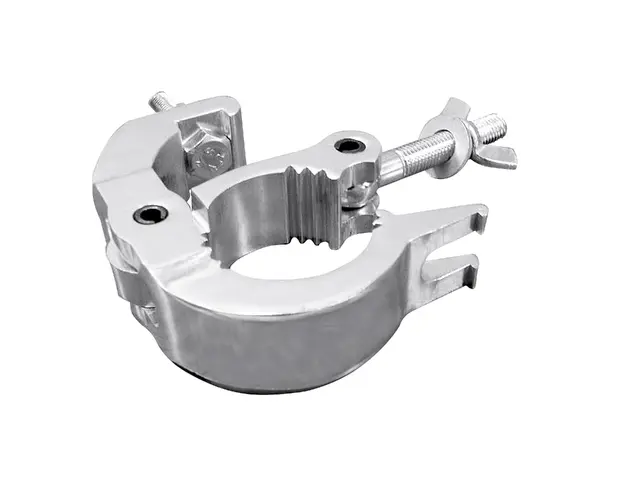

EUROLITE TH-100N Theatre Clamp silver

The article is no longer in our assortment.

Check out the alternatives:

Item no. 58000732

Features

PRO mounting clamp for 50 mm tube, maximum load WLL 200 kg

Hook for installing projectors, lighting effects etc. via a truss system
For the installation at horizontal and vertical truss
For further information about this product, please refer to the Data Sheet under "Downloads"

Technical specifications

Maximum load BGV C1 (8-fold):	100 kg
Max. load WLL (4-fold):	200 kg
Tube diameter sector:	48 - 50 mm
Material:	Aluminum casting
Color:	Silver
Mounting screw:	M10
Dimensions:	Length: 13 cm Width: 3,50 cm Depth: 10,50 cm Height: 3,50 cm
Weight:	490 g

Packaging units

PU	EAN	Weight	Dimensions
1	4026397377316	0,49 kg	13cm x 9,5cm x 3,5cm
10	4026397377323	5,00 kg	46cm x 15cm x 8cm
30	4026397598872	15,50 kg	58cm x 24,5cm x 16cm
40	4026397377330	20,45 kg	48cm x 30,5cm x 19cm
