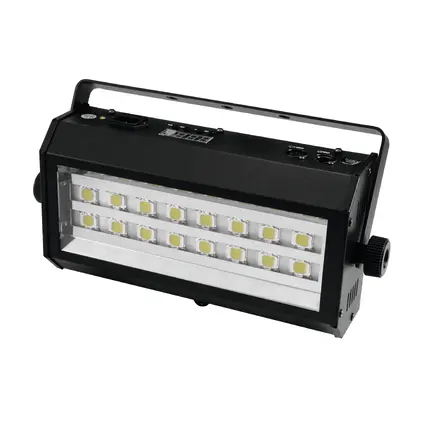

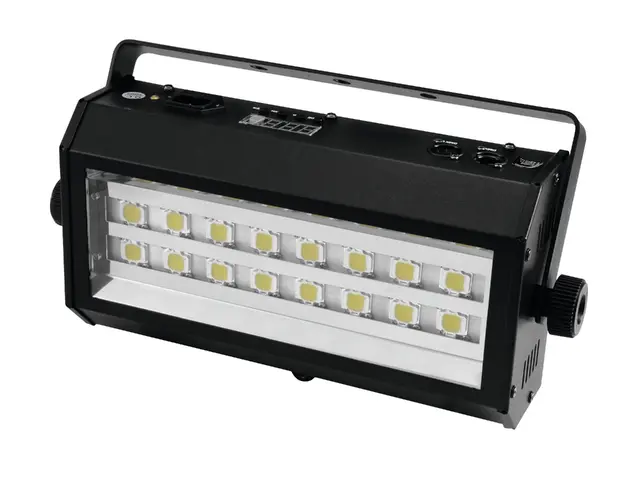

Strobe with 16 x 10 W COB LED and adjustable flash freuquency
EUROLITE LED Strobe COB PRO 16x10W DMX

Strobe with 16 x 10 W COB LED and adjustable flash freuquency-MainBild

Strobe with 16 x 10 W COB LED and adjustable flash freuquency

EUROLITE LED Strobe COB PRO 16x10W DMX

The article is no longer in our assortment.

No. 52200878

Print product

Product badge

Here you find the manual and downloads for
EUROLITE LED Strobe COB PRO 16x10W DMX

This LED strobe is equipped with 16 x 10-watt cold white COB LEDs and combines strobe, chase and blinder effects. It lets you create both dynamic stage shows and the more low-key effects in between with a single fixture.

You can choose from three different operation modes: master-slave, stand-alone and DMX mode (5 DMX channels). The integrated microphone makes for great light effects to the rhythm of the music.
The fixture has 3-pin DMX connectors as well as an IEC input to connect it to the mains.

Features

Strobe with 16 x 10 W COB LED and adjustable flash freuquency

Brightness and flash rate steplessly adjustable
Elaborate reflector system
16 powerful LEDs 10 W COB (chip-on-board) cold white (CW)
Strobe effect
Control via stand-alone; DMX; sound to light via microphone
Preprogrammed in LED PC-Control 512; Light Captain; Light´J
With mounting bracket

Technical specifications

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	165 W
Power connection:	Fixed power supply cord with safety plug
Lamp type:	LED lamp
LED type:	16 x 10 W COB (chip-on-board) cold white (CW)
DMX channels:	5
DMX input:	1 x 3-pin XLR (M) mounting version
DMX output:	1 x 3-pin XLR (F) mounting version
Control:	Stand-alone; DMX; sound to light via microphone
Preprogrammed in:	LED PC-Control 512; Light Captain; Light´J
Attachment system:	Mounting bracket
Dimensions:	Width: 36,5 cm Depth: 8,8 cm Height: 22 cm
Weight:	2,82 kg

Packaging units

PU	EAN	Weight	Dimensions
1	4026397588491	3,17 kg	39cm x 24cm x 18cm
6	4026397588507	20,20 kg	74cm x 41cm x 40cm

Accessories

Loading accessories. Please wait...

Support

Spare parts

LED COB 10W cw (PL-1039-W)

FUTURELIGHT Fan 24V/0,08A/ 80x80x25/ME80252V1

Downloads

Loading the documents. Please wait...

Manufacturer information

Steinigke Showtechnic GmbH
Andreas-Bauer-Str. 5
D-97297 Waldbüttelbrunn

+49 931 4061 600
info@steinigke.de
www.steinigke.de/support
