Technical specifications

Weight:	7.70 kg
Noise classification:	Class 2 (slight noise)
EUROLITE LED Space Ball 35 MK2 for HST Hoist
Power supply:	24V
IP classification:	IP20
Power connection:	Via 4-pin screw plug connector (M) mounting version
Lamp type:	LED lamp
LED type:	6 x 7 W high-power 3in1 TCL RGB (homogenous color mix)
DMX channels:	7; 8
Cooling:	Passive convection cooling
Control:	DMX
Housing color:	White
Dimensions:	Diameter: Ø 35 cm
Weight:	1.8 kg
EUROLITE HST-200 Hoist
Power supply:	230 V AC, 50 Hz
Power consumption:	50 W
Protection class:	Protection class I
Power connection:	Fixed power supply cord with safety plug
Fuse:	T 1.5 A
DMX channels:	8
DMX input:	3-pin XLR (M) mounting version
DMX output:	3-pin XLR (F) mounting version
Control:	DMX
Fixtures available for:	LED PC-Control 512
Attachment system:	Omega bracket
Display type:	3 digit 7-segment LED display
Lifting height:	2 m
Dimensions:	Width: 23.5 cm Depth: 11 cm Height: 21 cm
Weight:	6.25 kg
Noise classification:	Class 2 (slight noise)

Packaging units

PU	EAN	Weight	Dimensions
1	4026397699371	10,20 kg	82cm x 41cm x 52cm

Spare parts

Downloads

Spezifications

Name	Version	Language
Spezifications as PDF
Product badge
Specifications as PDF neutral
Product badge neutral

All images

Name	Version	Language
51930476-Images-.zip

Publications

On page: 38

Size: 45 MB

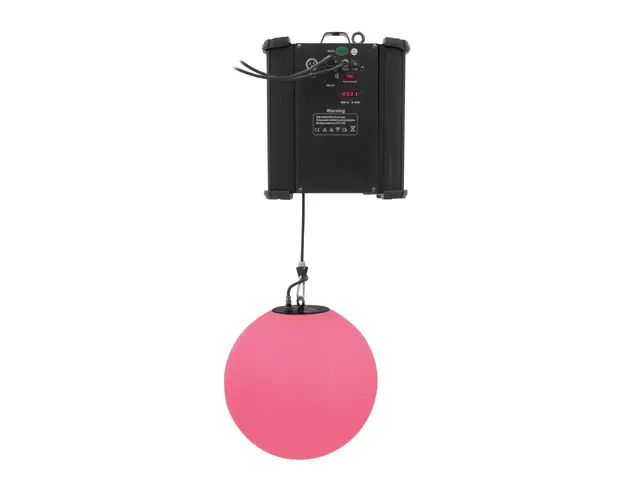

EUROLITE LED Space Ball 35 MK2 + HST-200

The article is no longer in our assortment.

No. 51930476

For application areas such as: Clubs/dancing school; wedding/gala/events; restaurants, bars and hotels
Application possibility: Suspended

EUROLITE LED Space Ball 35 MK2 for HST Hoist

Modern LED ambient light with DMX control

Particularly impressive when used in larger quantities
6 LEDs 7 W high-power 3in1 TCL RGB (homogenous color mix)
Color blend stepless; Dimmer electronic; effect speed adjustable
The device is cooled by passive convection cooling
Control via DMX
For application areas such as: Wedding/gala/events; clubs/dancing school; restaurants, bars and hotels

EUROLITE HST-200 Hoist

Lifting height: 2 m
Control via DMX
Fixtures available for LED PC-Control 512
With omega bracket
3 digit 7-segment LED display
For application areas such as: Clubs/dancing school; wedding/gala/events; restaurants, bars and hotels
Application possibility: Suspended
