Technical specifications

Power supply:	230 V AC, 50 Hz
Power consumption:	24 W
Lamp type:	LED lamp
DMX channels:	6; 4
Control:	Stand-alone; DMX
Fixtures available for:	Light´J; LED PC-Control 512
Beam angle (1/2 peak):	40°
Housing color:	Black
Dimensions:	Length: 108 cm Depth: 6.5 cm Height: 9 cm
Weight:	2.60 kg
DMX channels:	max. 19: 4 / 6 / 19
DMX connection:	3-pin XLR
Sound-control:	via built-in microphone
LED type:	10 mm
LED number:	252
Beam angle:	40°
Dimensions (L x W x H):	1075 x 65 x 90 mm
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting

Packaging units

PU	EAN	Weight	Dimensions
1	4026397397048	3,00 kg	109cm x 13cm x 13cm
4	4026397397062	12,90 kg	110,5cm x 27,5cm x 30cm

Spare parts

Downloads

Spezifications

Name	Version	Language
Spezifications as PDF
Product badge
Specifications as PDF neutral
Product badge neutral

Support

Name	Version	Language
51930419-Support-53098-1.0000-de_en_es_fr.dsp (8 KB)	1.0000	de_en_es_fr
51930419-Support-64030-1.0000-For-DMX-Wizard-software-de.dsp (5 KB)	1.0000	de
51930419-Support-105956-1.0000-51930419-LED-PC-Control-fixtures-de.zip (898 B)	1.0000	de
51930419-Support-107148-1.0000-51930419-LED-PC-Control-fixtures-de.zip (2 KB)	1.0000	de

Video file

Name	Version	Language
51930419-Video-53083-de_en_es_fr.flv (16 MB)	0.0000	de_en_es_fr

All images

Name	Version	Language
51930419-Images-.zip

Video link

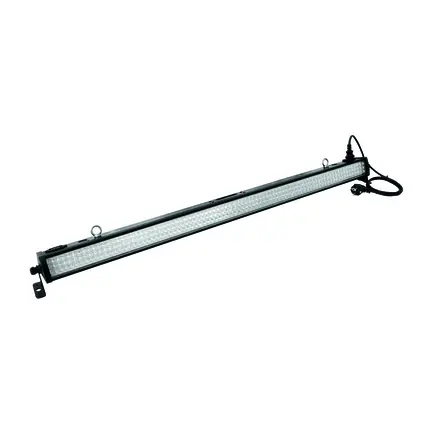

EUROLITE LED BAR-252 RGBA 10mm 40°

The article is no longer in our assortment.

Check out the alternatives:

No. 51930419

40°

Versatile LED-RGBA color changer

Operable in stand-alone mode or via DMX
DMX512 control possible via any commercial DMX controller (occupies max.19 channels)
4, 6 or 19 DMX channels selectable for numerous applications
Sound-control via built-in microphone
Comfortable addressing and setting via control panel with LCD display and four operating buttons
Functions: Static colors, RGBA color blend, internal programs, dimmer and strobe settings via DMX, Master/Slave
Equipped with 252 x 10 mm LEDs
Locking possibility at the mounting bracket
Ready for connection with power cord and safety plug
Available in 2 LED beam angles: 20° or 40°
Advantages of high-power LED technology: extreme light output, long life, low power consumption, defacto maintenance free with brilliant light radiation
Strobe effect
Control via stand-alone; DMX
