LED light effect column with RGB color mixing, incl. IR remote control
EUROLITE LED CBT-6 COB TCL Tower

Name: EUROLITE LED CBT-6 COB TCL Tower
Uploaded: 2022-01-01
Description: LED light effect column with RGB color mixing, incl. IR remote control

LED light effect column with RGB color mixing, incl. IR remote control-MainBild

LED light effect column with RGB color mixing, incl. IR remote control-Bild-1

38°

LED light effect column with RGB color mixing, incl. IR remote control

EUROLITE LED CBT-6 COB TCL Tower

Stock for approx. 12 wk(s)

399,00 €

Find a dealer

List price excl. 19% VAT
Prices in retail stores may vary.

Item no. 51930281

Print product

Product badge

Here you find the manual and downloads for
EUROLITE LED CBT-6 COB TCL Tower

Eurolite CBT-6 COB TCL Tower

AN EYE-CATCHER FOR YOUR PARTY

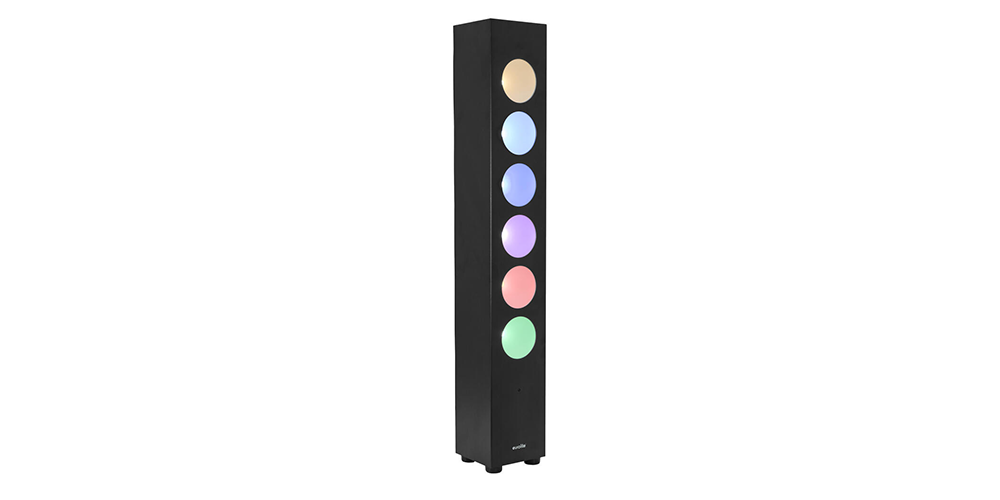

The LED-Tower CBT-6 by Eurolite is the ideal eye-catcher especially for mobile DJs, small bands and solo entertainers: Mounted right and left of the DJ desk or band, the vertical effect gives your performance a professional look.

EQUIPMENT

The LED Tower is equipped with six powerful 30 Watt COB LEDs in RGB. Thanks to its slim design and the included carrying bag, it is especially suitable for mobile applications. Thanks to the tripod sleeve it can be mounted on a stand; however, you can also place the CBT-6 directly on the ground.

CONTROL

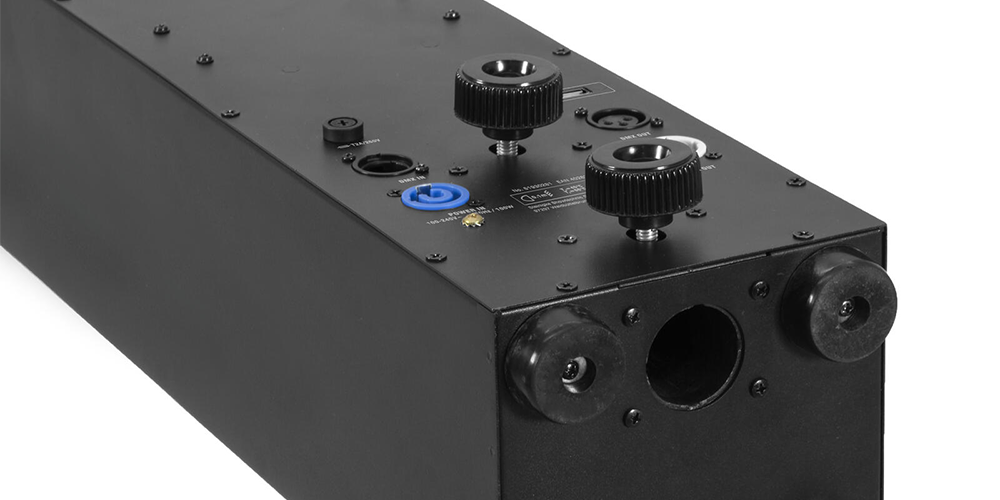

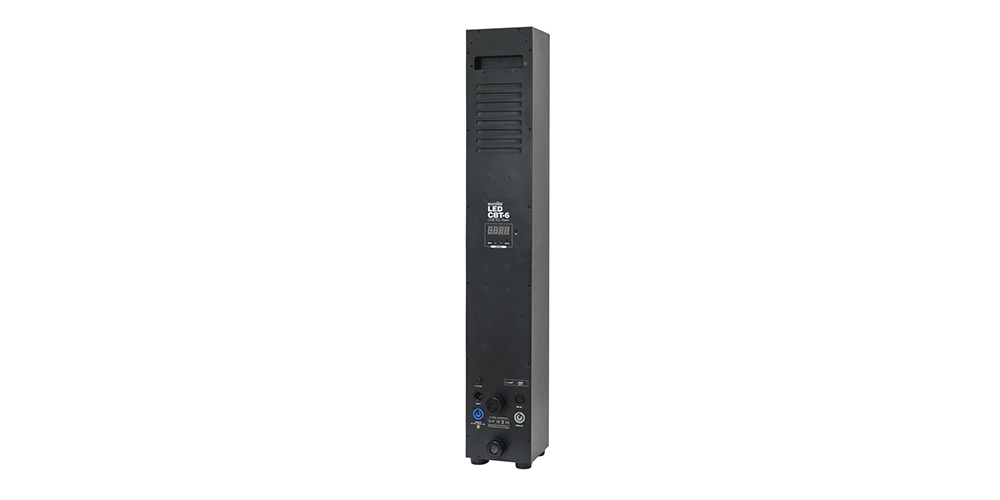

The tower can be controlled by DMX. In auto and music mode you can use integrated show programs. The direct color selection for 18 colors and further functions such as color change, color fading as well as dimmer and strobe effects give you a lot of design freedom. The LED light effect column is compatible with QuickDMX, the wireless DMX system from Eurolite. A phantom-powered USB socket for wireless transmission of the DMX signal via a QuickDMX receiver is located on the back of the device. P-Con power connections allow you to easily connect up to eight devices in series.

Features

LED light effect column with RGB color mixing, incl. IR remote control

LED tower with integrated DMX control unit and stand sleeve for tripod installation
6 powerful LEDs COB (chip-on-board) 3in1 TCL RGB
Color blend stepless; color change adjustable; color fade adjustable; Dimmer electronic
Strobe effect; multi beam effect
Integrated show programs
Direct color selection for 18 preset colors
The device is cooled by low-noise cooling fan
Control via DMX; IR remote control; stand-alone; sound to light via microphone; master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Flicker-free
With a beam angle of 38°
Preprogrammed in LED PC-Control 512; EASY SHOW 1; Light Captain
Mains input and output for power linking up to 8 units
For application areas such as: Wedding/gala/events; party room; mobile djs / entertainer
Application possibility: Standing; on stand

Package contents

1 x light effect, 1 x power cord, 1 x user manual, 1 x remote control, 1 x battery, 1 x bag

Technical specifications

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	100 W
IP classification:	IP20
Power connection:	Mains input via P-Con (blue), mounting version
Power output:	1 x P-Con (gray), mounting version
Fuse:	5 x 20 mm, T 2 A
Lamp type:	LED lamp
LED type:	6 x COB (chip-on-board) 3in1 TCL RGB
Flash rate:	0 - 20 Hz
DMX channels:	2; 3; 5; 18; 9; 21
DMX input:	3-pin XLR (M) mounting version
DMX output:	3-pin XLR (F) mounting version
Cooling:	Low-noise cooling fan
Control:	DMX; IR remote control; stand-alone; sound to light via microphone; master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Preprogrammed in:	LED PC-Control 512; EASY SHOW 1; Light Captain
Projection:	Flicker-free
Beam angle:	38°
Beam angle (1/2 peak):	38°
Beam angle (1/10 peak):	70°
Housing color:	Black
Dimensions:	Width: 17 cm Depth: 15 cm Height: 96 cm
Weight:	7,60 kg
Noise classification:	Class 2 (slight noise)
Photobiological safety:	Risk Group 0
Remote control
Battery:	1 x button cell 3.0 V CR2025 lithium manganese built-in
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting

Packaging units

PU	EAN	Weight	Dimensions
1	4026397670776	9,20 kg	104,5cm x 25,5cm x 26cm

Accessories

Loading accessories. Please wait...

Support

Spare parts

cover (LED/front) LED CBT-6 COB TCL (660x 100x 2 mm)

LED COB 30W RGB LED CBB (TX-RGB10C180-501 WKF-BC0025) 10pin

Downloads

Loading the documents. Please wait...

Manufacturer information

Steinigke Showtechnic GmbH
Andreas-Bauer-Str. 5
D-97297 Waldbüttelbrunn

+49 931 4061 600
info@steinigke.de
www.steinigke.de/support

Safety instructions and warnings

Specific safety instructions that apply to the product can be found in the operating instructions for the product.
