Technical specifications

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	17.00 W
Cooling:	Passive convection cooling
Control:	Stand-alone; DMX
Fixtures available for:	LED PC-Control 512
Beam angle (1/2 peak):	120°
Housing color:	Black
Dimensions:	Width: 25 cm Depth: 25 cm Height: 5 cm
Weight:	1.30 kg
DMX channels:	48
DMX connection:	3-pin XLR
Sound-control:	via built-in microphone
LED type:	Tricolor, SMD 5050
LED number:	16
Beam angle:	120°
Pixel pitch:	62.5 mm
Dimensions (L x W x H):	250 x 250 x 50 mm
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting

Packaging units

PU	EAN	Weight	Dimensions
1	4026397395051	1,55 kg	30,5cm x 30,5cm x 11cm
4	4026397395068	7,20 kg	33cm x 34cm x 48cm
4	4026397401981	7,30 kg	33,5cm x 33,5cm x 48cm

Spare parts

Downloads

Spezifications

Name	Version	Language
Spezifications as PDF
Product badge
Specifications as PDF neutral
Product badge neutral

Support

Name	Version	Language
51928739-Support-105963-1.0000-51928739-LED-PC-Control-fixtures-de.zip (947 B)	1.0000	de

Press report

Name	Version	Language
51928739-Press-55563-de.pdf (62 KB)	0.0000	de
51928739-Press-55564-en.pdf (60 KB)	0.0000	en
51928739-Press-58397-Testbericht-Soundcheck-112010-de_en_es_fr.pdf (2 MB)	0.0000	de_en_es_fr
51928739-Press-60669-Light-Tool-des-Jahres-2011-de.pdf (151 KB)	0.0000	de
51928739-Press-60670-Light-Tool-of-the-year-2011-en.pdf (159 KB)	0.0000	en

Video file

Name	Version	Language
51928739-Video-53061-de_en_es_fr.flv (14 MB)	0.0000	de_en_es_fr

All images

Name	Version	Language
51928739-Images-.zip

Video link

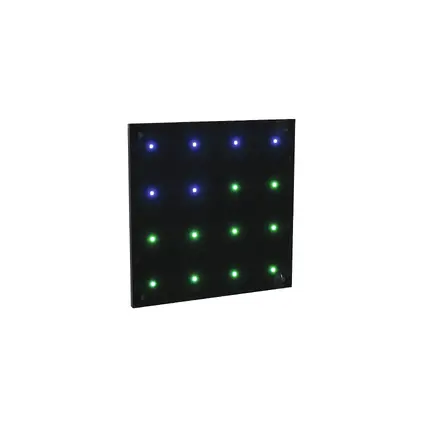

EUROLITE LED Pixel Panel 16 DMX

The article is no longer in our assortment.

No. 51928739

120°

DMX controlled pixel panel with 3in1 LEDs

Operable in stand-alone mode with Master/Slave function or via DMX interface
DMX512 control possible via any commercial DMX controller (occupies 48 channels)
Sound-control via built-in microphone
Speed of the 22 internal programs and color change in Auto mode adjustable via DIP switches
Each of the 16 TCL LEDs can be controlled individually
Through the close chip placement of the multichip technology, an exquisite color mix even with short distances to the illuminated surface is provided
Perfect solution as decorative lighting for shops, display windows, hotels, bars, clubs or interior furnishings
Installation on a wall or on a truss system possible
Create sensational light effect walls by connecting several LED panels
Feed-through output allows to power up to 8 devices
Switch-mode power supply for operation between 90 and 240 Volts
Connection via IEC power cord with safety-plug (not included in delivery)
The device is cooled by passive convection cooling
Control via stand-alone; DMX
