Compact mirror ball effect with a radiating dome and DMX
EUROLITE LED BC-6 Beam Effect

Name: EUROLITE LED BC-6 Beam Effect
Uploaded: 2022-01-01
Description: Compact mirror ball effect with a radiating dome and DMX

Compact mirror ball effect with a radiating dome and DMX-MainBild

Compact mirror ball effect with a radiating dome and DMX-Bild-1

Compact mirror ball effect with a radiating dome and DMX

EUROLITE LED BC-6 Beam Effect

Stock for approx. 12 wk(s)

49,90 €

41,93 €

-16% valid until 31.12.2024

Find a dealer

List price excl. 19% VAT
Prices in retail stores may vary.

Item no. 51918806

Print product

Product badge

Here you find the manual and downloads for
EUROLITE LED BC-6 Beam Effect

The LED BC-6 Beam Effect by Eurolite offers stunningly bright and room-filling color effects and multiple functions:
The acrylic glass dome with six bright LEDs in the colors red, green, blue, amber and white produces circular light effects with thrilling color mixtures, rapid color changes, dimmed light as well as dynamic strobe effects - easily controllable in stand-alone, master/slave, automatic, DMX (9 DMX channels) or sound control mode via the integrated microphone. Motor rotation can be manually adjusted between 0 and 50 rotations per minute. Thanks its ultralight plastic enclosure, you can easily take this effect with you and set it up everywhere. The base plate also allows for wall mounting.

Features

Compact mirror ball effect with a radiating dome and DMX

Rotating LEDs fill the room with countless colorful beams
Memory function saves last setting when switching off
Plastic housing with mounting brackets
6 powerful LEDs 1 W high-power R/G/B/W/A
Color change adjustable; color fade adjustable; Dimmer electronic; Rotation speed stepless
Flower effect; strobe effect
12 integrated show programs
The device is cooled by cooling fan
Control via stand-alone; DMX; sound to light via microphone
4 digit 7-segment LED display
Preprogrammed in LED PC-Control 512; Light Captain
For application areas such as: Party room; advertisement/Shop window
Very quiet working noise
Application possibility: Standing; wall mounting

Package contents

1 x device, 1 x user manual

Technical specifications

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	14,00 W
IP classification:	IP20
Protection class:	Protection class II
Power connection:	Fixed power supply cord with Euro plug
Cable length:	Approx. 1 m
Lamp type:	LED lamp

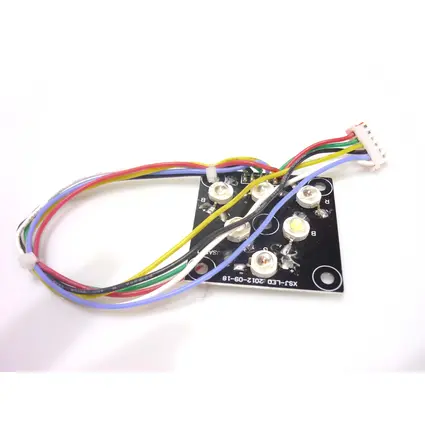

LED type:	6 x 1 W high-power R/G/B/W/A
Speed:	50 RPM - 10 RPM , 180 °
DMX channels:	9

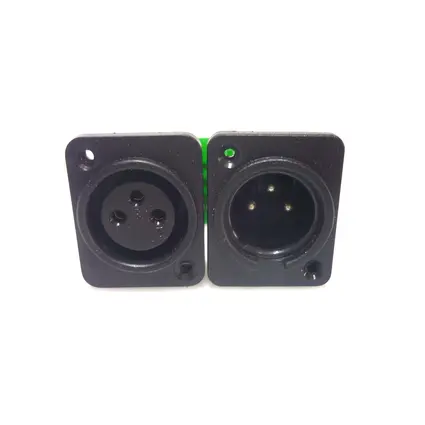

DMX input:	1 x 3-pin XLR (M) mounting version
DMX output:	1 x 3-pin XLR (F) mounting version

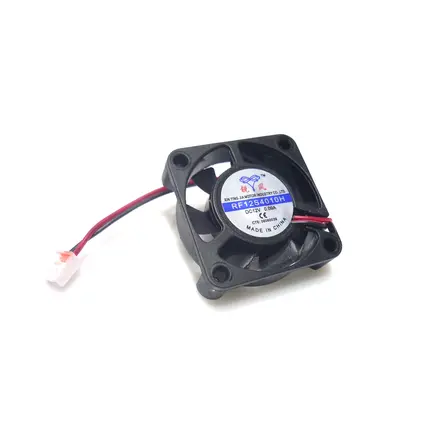

Cooling:	Cooling fan
Control:	Stand-alone; DMX; sound to light via microphone
Preprogrammed in:	LED PC-Control 512; Light Captain
Housing color:	Black
Display type:	4 digit 7-segment LED display
Diameter mounting holes:	6 x Ø4mm
Dimensions:	Width: 18,5 cm Depth: 18,5 cm Height: 15 cm
Weight:	430 g
Noise classification:	Class 1 (very slight noise, suitable for noise-sensitive environments)
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting

Packaging units

PU	EAN	Weight	Dimensions
1	4026397500301	0,58 kg	19cm x 19cm x 16,5cm
18	4026397500318	11,80 kg	58cm x 40cm x 50cm

Accessories

Loading accessories. Please wait...

Support

Spare parts

Diode 1000V/1A 1N4007

Pcb (Power supply) 12V/2A (DK-DC-12V2A)

Pcb (Control) (LXF112_C REV:1.00)

More 3 spare parts

Downloads

Loading the documents. Please wait...

Manufacturer information

Steinigke Showtechnic GmbH
Andreas-Bauer-Str. 5
D-97297 Waldbüttelbrunn

+49 931 4061 600
info@steinigke.de
www.steinigke.de/Produktanfrage

Safety instructions and warnings

Specific safety instructions that apply to the product can be found in the operating instructions for the product.
