Color intensive beam effect with 6in1 LEDs in RGBWA+UV
EUROLITE LED D-25 Beam Effect

Color intensive beam effect with 6in1 LEDs in RGBWA+UV-MainBild

Color intensive beam effect with 6in1 LEDs in RGBWA+UV-Bild-1

Color intensive beam effect with 6in1 LEDs in RGBWA+UV

EUROLITE LED D-25 Beam Effect

The article is no longer in our assortment.

Check out the alternatives:

EUROLITE LED Mini D-5 Beam Effect

interesting alternative, take a look!

Stock for approx. 12 wk(s)

79,90 €

Item no. 51918664

Print product

Product badge

Here you find the manual and downloads for
EUROLITE LED D-25 Beam Effect

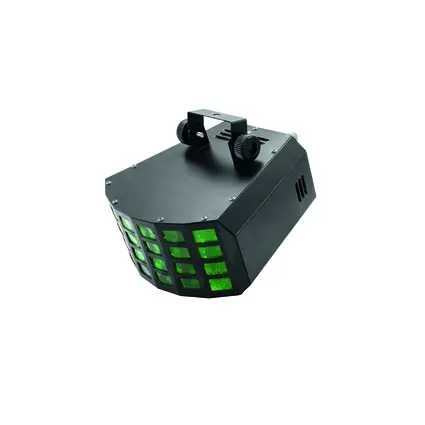

The LED D-25 by Eurolite is a classic derby beam effect with two high-power 18-watt hex-color LEDs that generate intense RGBAW mixes and blacklight.

The device works with a preset program which can be played either fully automatically in automatic mode or sound-controlled via the integrated microphone. The emanating beams then move in circles and change their direction with each bass beat.
Changing color patterns, strobe effects and the adjustable running speed and microphone sensitivity complete the package.

Features

Color intensive beam effect with 6in1 LEDs in RGBWA+UV

Precision lenses fill the room with countless rotating beams
2 powerful LEDs 18 W high-power 6in1 HCL RGBWA/UV
Multi beam effect; flower effect; UV effect; strobe effect
Control via stand-alone; sound to light via microphone
With mounting bracket
Program speed adjustable; color macros changing

Package contents

1 x light effect, 1 x user manual, 1 x power cord

Technical specifications

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	24 W
IP classification:	IP20
Power connection:	Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Lamp type:	LED lamp
LED type:	2 x 18 W high-power 6in1 HCL RGBWA/UV
Control:	Stand-alone; sound to light via microphone
Housing color:	Black
Attachment system:	Mounting bracket
Dimensions:	Width: 29 cm Depth: 28,5 cm Height: 18,5 cm
Weight:	2,10 kg
Noise classification:	Class 2 (slight noise)
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting

Packaging units

PU	EAN	Weight	Dimensions
1	4026397530308	2,50 kg	33,5cm x 34cm x 22cm
4	4026397532791	11,00 kg	69cm x 36cm x 46,5cm

Accessories

Loading accessories. Please wait...

Support

Spare parts

Pcb (Power supply) 12V/2A (HS-U25S12NC)

EUROLITE Pcb (Control) D-25 (H3-035 Ver1.1)

Downloads

Loading the documents. Please wait...

Manufacturer information

Steinigke Showtechnic GmbH
Andreas-Bauer-Str. 5
D-97297 Waldbüttelbrunn

+49 931 4061 600
info@steinigke.de
www.steinigke.de/support

Safety instructions and warnings

Specific safety instructions that apply to the product can be found in the operating instructions for the product.
