LED projector with RGB designs

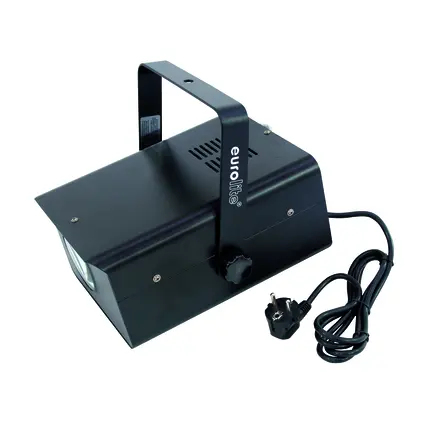

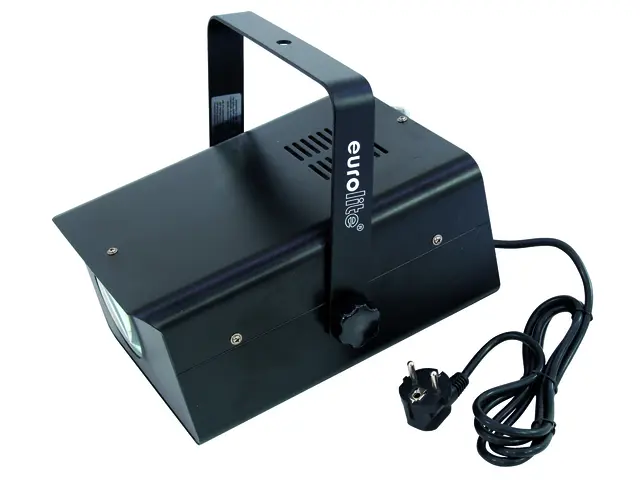

EUROLITE LED MAT-64 Matrix projector

LED projector with RGB designs

EUROLITE LED MAT-64 Matrix projector

The article is no longer in our assortment.

No. 51918550

Print product

Product badge

Here you find the manual and downloads for
EUROLITE LED MAT-64 Matrix projector

If you turn off the light, turn on the spots and add some smoke, you will experience an unbelievable light-effect. "Although" its LED-technique you will be convinced to see a laser, performing a show with its beams. This lightwonder is compact and it is fitted with 64 highpower LEDs, that are blessed with a very impressive brilliance. 25 programms can be played over the control station. They "dance" to the music when they are told to do so. Compared to his laser-opponents the LED Mat-64 is cheaper, but as well as persuasive.

Features

LED projector with RGB designs

Creates various RGB patterns via LED matrix
Equipped with 64 LEDs: 32 x red, 20 x blue, 12 x green
DMX-controlled operation or stand-alone operation with Master/Slave function
DMX control via every standard DMX controller
Sound-controlled via built-in microphone
Patterns and speed and adjustable via DIP switches
Ready for connection with safety plug
Rugged housing with mounting bracket
Advantages of LED technology: long life, low power consumption, minimal heat emission, defacto maintenance free with brilliant light radiation

Technical specifications

Power supply:	230 V AC, 50 Hz
Power consumption:	23,00 W
Dimensions:	Width: 28 cm Depth: 24 cm Height: 22,5 cm
Weight:	3,10 kg
DMX channels:	3
DMX connection:	3-pin XLR
Sound-control:	via built-in microphone
LED type:	5 mm
LED number:	64
Dimensions (L x W x H):	280 x 240 x 225 mm
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting
