Technical specifications

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	40 W
Protection class:	Protection class II
Power connection:	Mains input via IEC connector (M) mounting version power supply cord with safety plug
Power output:	IEC connector (F) mounting version
Fuse:	T 1 A
Lamp type:	LED lamp

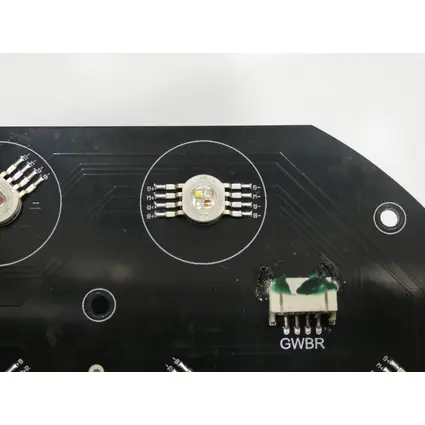

LED type:	12 x 8 W 4in1 RGBW (homogenous color mix)
Flash rate:	0.5 - 23 Hz
DMX channels:	4; 6; 8
Cooling:	1 x cooling fan
Control:	QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); IR remote control; stand-alone; sound to light; DMX; master/slave function
Fixtures available for:	EASY SHOW 1; Light Captain; EASY SHOW 2; EASY SHOW 3; Light´J; Colorchief
PWM frequency:	2000 Hz
Beam angle (1/2 peak):	16°
Beam angle:	16°°
Beam angle (1/10 peak):	34
Housing color:	Black
Attachment system:	Double bracket
Display type:	4 digit 7-segment LED display
Material:	ABS Acrylonitrile butadiene styrene
Dimensions:	Width: 26.0 cm Depth: 12.5 cm Height: 23.3 cm
Weight:	1.70 kg
Noise classification:	Class 2 (slight noise)
Photobiological safety:	Risk Group 0
Mounting bracket
Diameter mounting holes:	1 x Ø11mm
Material:	Metal, 2 mm
Power cord
Cable construction:	3 x 0.75 mm² H05VV-F
Cable length:	Approx. 1.2 m
Remote control
Battery:	Button cell 3.0 V CR2025 lithium manganese built-in
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting

Packaging units

PU	EAN	Weight	Dimensions
1	4026397696714	1,95 kg	23cm x 23cm x 23cm
8	4026397696721	16,80 kg	48cm x 47cm x 49cm

Spare parts

Downloads

Spezifications

Name	Version	Language
Spezifications as PDF
Product badge
Specifications as PDF neutral
Product badge neutral

Support

Name	Version	Language
51915383-Support-161396-Fixture-fuer-Colorchief-V2-de.zip (213 B)	0.0000	de

All images

Name	Version	Language
51915383-Images-.zip

Publications

On page: 84

Size: 42 MB

Video link

EUROLITE LED SLS-12 QCL Floor

Name: EUROLITE LED SLS-12 QCL Floor
Uploaded: 2022-01-01
Description: LED floor spot with 4in1 RGBW color mixing, incl. IR remote control

Stock for approx. 12 wk(s)

129,00 €

Find a dealer

Stock for approx. 12 wk(s)

List price excl. 19% VAT
Prices in retail stores may vary.

No. 51915383

16°

LED floor spot with 4in1 RGBW color mixing, incl. IR remote control

Slim design for space-saving applications
12 LEDs 8 W 4in1 RGBW (homogenous color mix)
Color blend stepless; color change adjustable; color fade adjustable; Dimmer electronic
Strobe effect
2 integrated show programs
Direct color selection for 18 preset colors
Can be operated in 4; 6; 8 CH mode
The device is cooled by cooling fan
Control via QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); IR remote control; stand-alone; sound to light; DMX; master/slave function
With a beam angle of 16°
With double bracket
4 digit 7-segment LED display
Mains input and output for power linking up to 8 units
For application areas such as: Stage; clubs/dancing school; wedding/gala/events; mobile djs / entertainer; party room; restaurants, bars and hotels; advertisement/Shop window
Application possibility: Standing; suspended; on stand
