Technical specifications

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	75 W
IP classification:	IP65
Protection class:	Protection class I
Power connection:	Mains input via IP T-Con (M) mounting version power supply cord with safety plug
Cable construction:	3 x 1.0 mm² H05RN-F
Power output:	IP T-Con (F) mounting version
Lamp type:	LED lamp
LED type:	18 x 8 W SMD 9080 4in1 QCL RGBW (homogenous color mix)
Flash rate:	0.5 - 24 Hz
DMX channels:	3; 4; 6; 9; 22; 24; 36; 72
DMX input:	3-pin XLR (M) mounting version IP
DMX output:	3-pin XLR (F) mounting version IP
Cooling:	Passive convection cooling
Control:	Stand-alone; IR remote control; DMX; master/slave function
Fixtures available for:	Light Captain
Projection:	Flicker-free
PWM frequency:	4100 Hz
DMX fail mode:	Blackout; hold; full on; static; auto
Beam angle:	18°
Beam angle (1/2 peak):	18°
Beam angle (1/10 peak):	38°
Lamp life:	50000 h
Housing color:	Black
Attachment system:	Mounting bracket 2x bracket for floor use
Display type:	4 digit 7-segment LED display
Use of brands:	Built with SEETRONIC connector
Material:	Aluminum casting
Dimensions:	Width: 106.5 cm Depth: 13.3 cm Height: 21.0 cm
Weight:	6.40 kg
Noise classification:	Class 0 (no noise at all)
Remote control
Battery:	1 x button cell 3.0 V CR2025 lithium manganese built-in
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting

Packaging units

PU	EAN	Weight	Dimensions
1	4026397751413	7,00 kg	103,5cm x 14,3cm x 17,5cm
2	4026397751840	14,75 kg	104cm x 30cm x 20cm

Spare parts

Downloads

Spezifications

Name	Version	Language
Spezifications as PDF
Product badge
Specifications as PDF neutral
Product badge neutral

Dimensional drawing

Name	Version	Language
51914129-Dimensions-163654-en.pdf (57 KB)	0.0000	en

All images

Name	Version	Language
51914129-Images-.zip

Video link

https://www.youtube-nocookie.com/embed/Fpk6-LAIN28

EUROLITE LED IP T-PIX 18 QCL Bar

Name: EUROLITE LED IP T-PIX 18 QCL Bar
Uploaded: 2022-01-01
Description: Weatherproof (IP65) bar with RGBW color mixing and pixel control, incl. IR remote control

Weatherproof (IP65) bar with RGBW color mixing and pixel control, incl. IR remote control-MainBild

Weatherproof (IP65) bar with RGBW color mixing and pixel control, incl. IR remote control-Bild-1

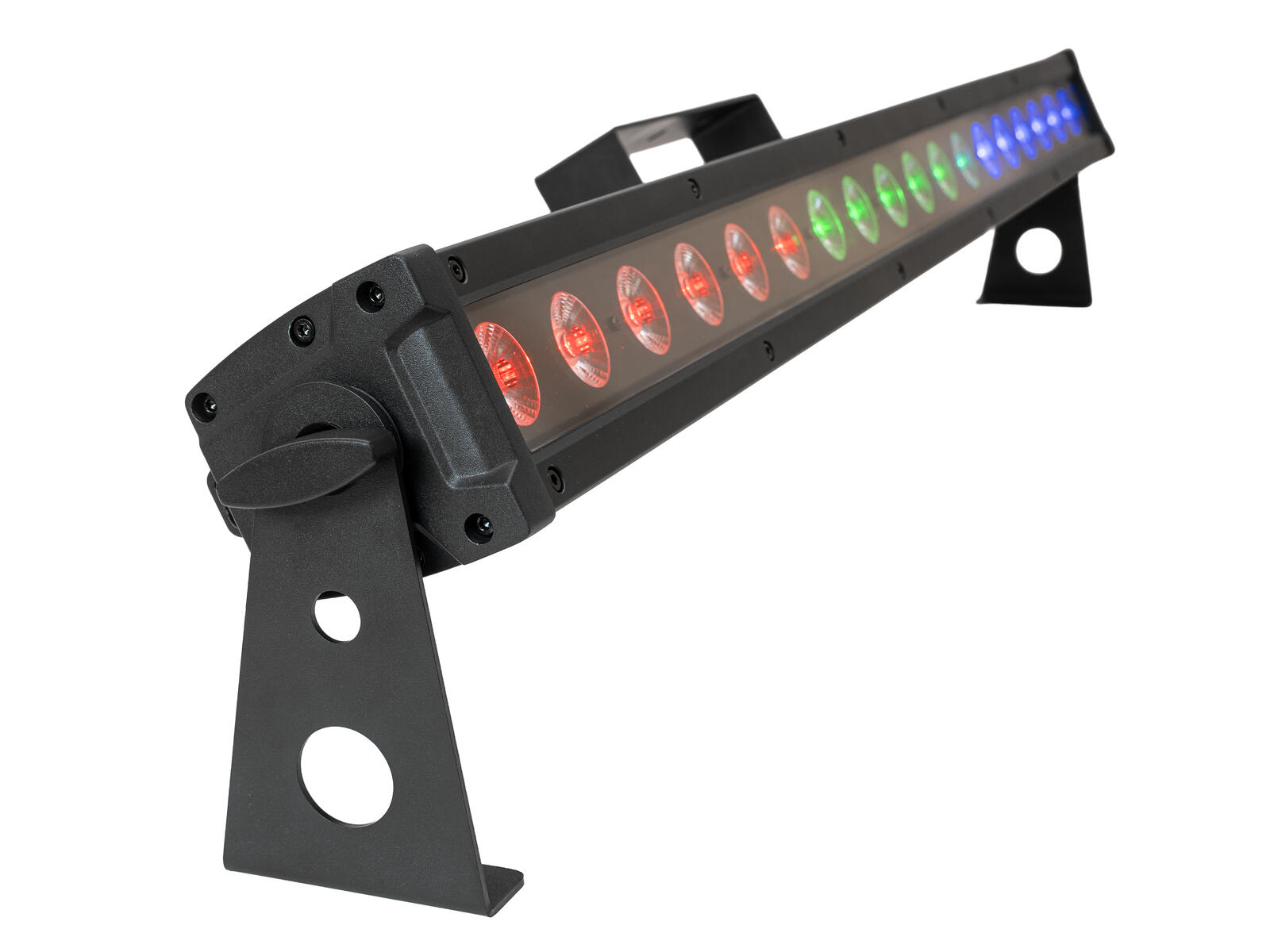

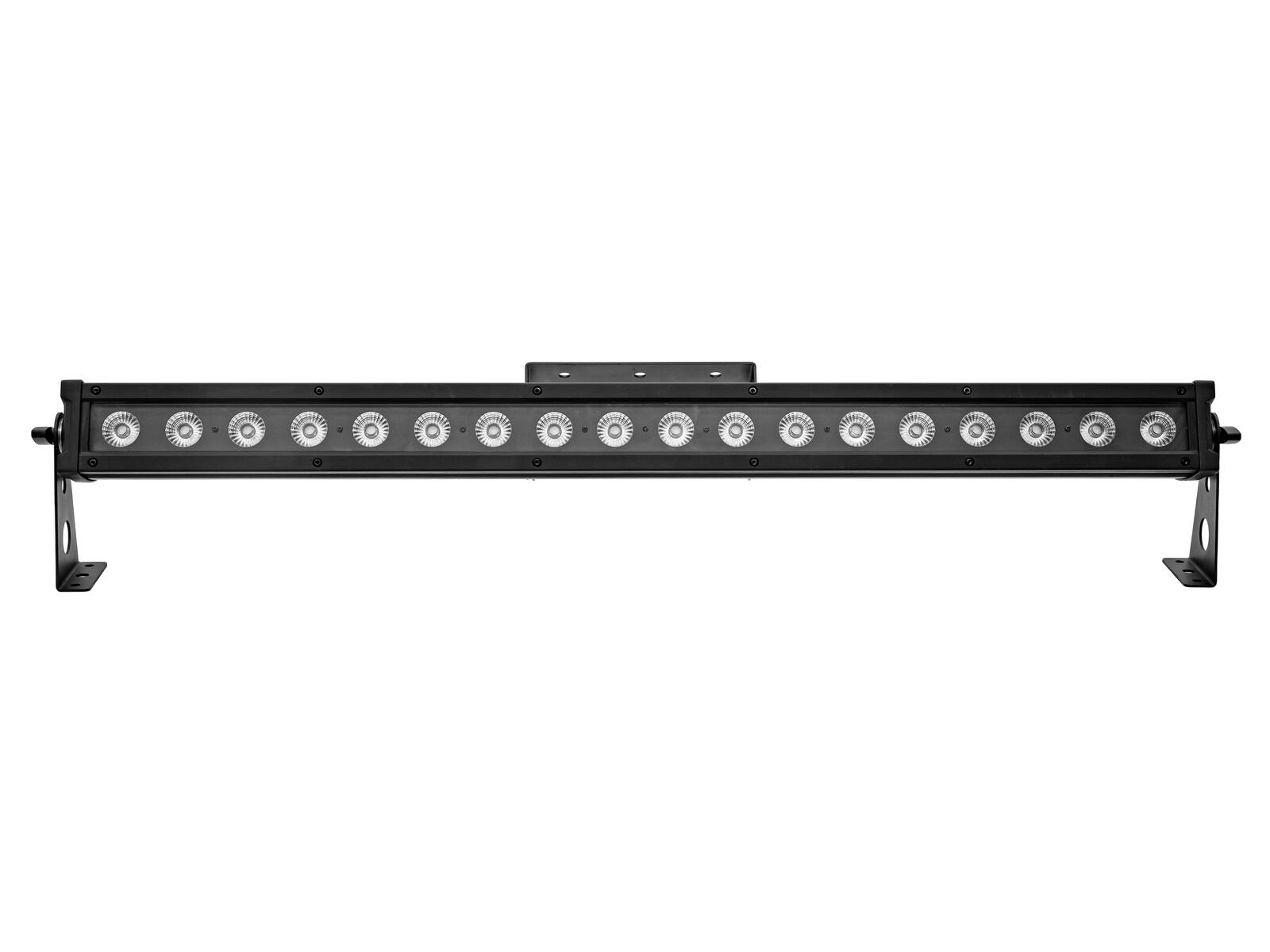

EUROLITE LED IP T-PIX 18 QCL Bar

Stock for approx. 12 wk(s)

399,00 €

Find a dealer

Stock for approx. 12 wk(s)

List price excl. 19% VAT
Prices in retail stores may vary.

No. 51914129

18°

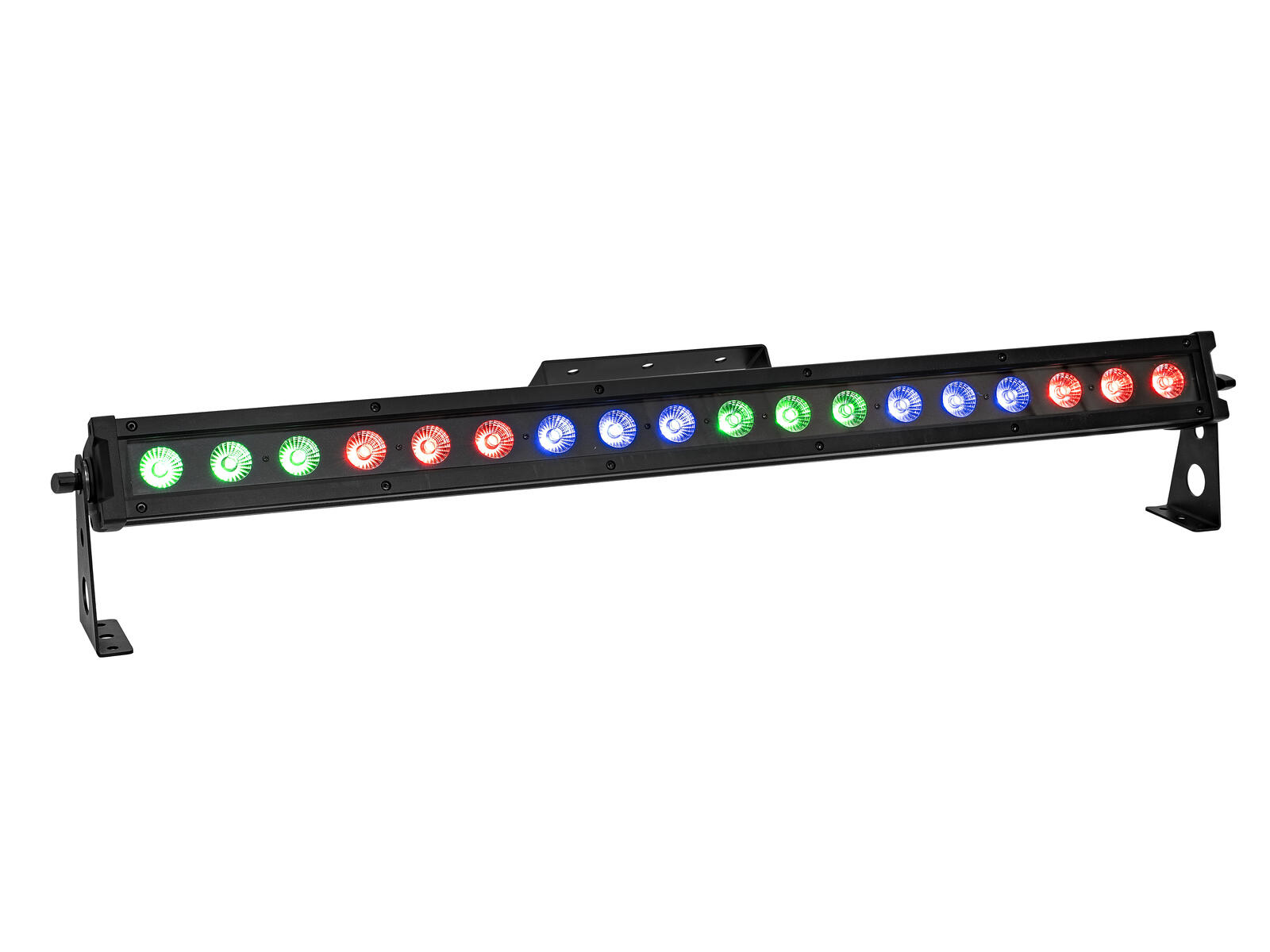

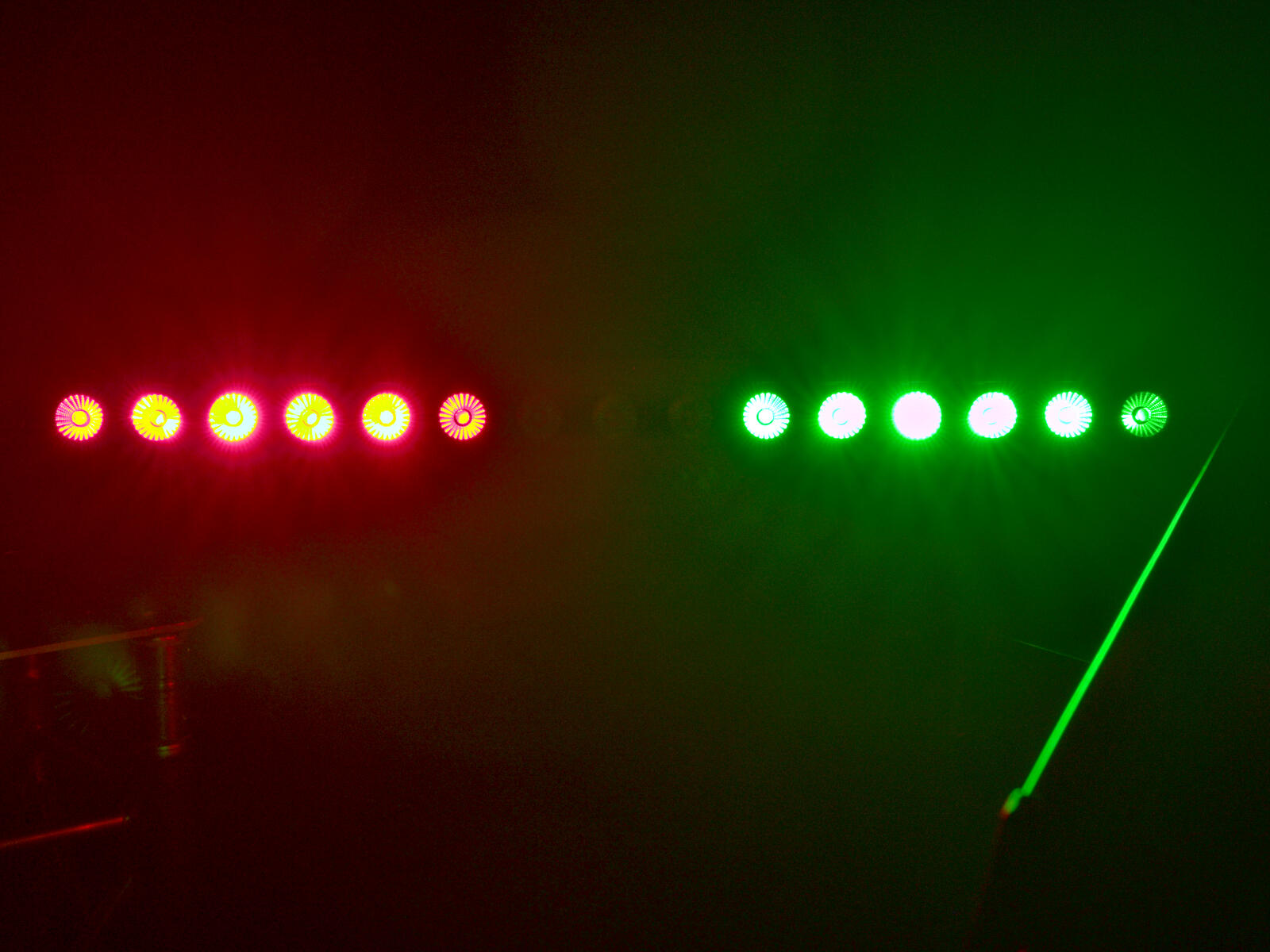

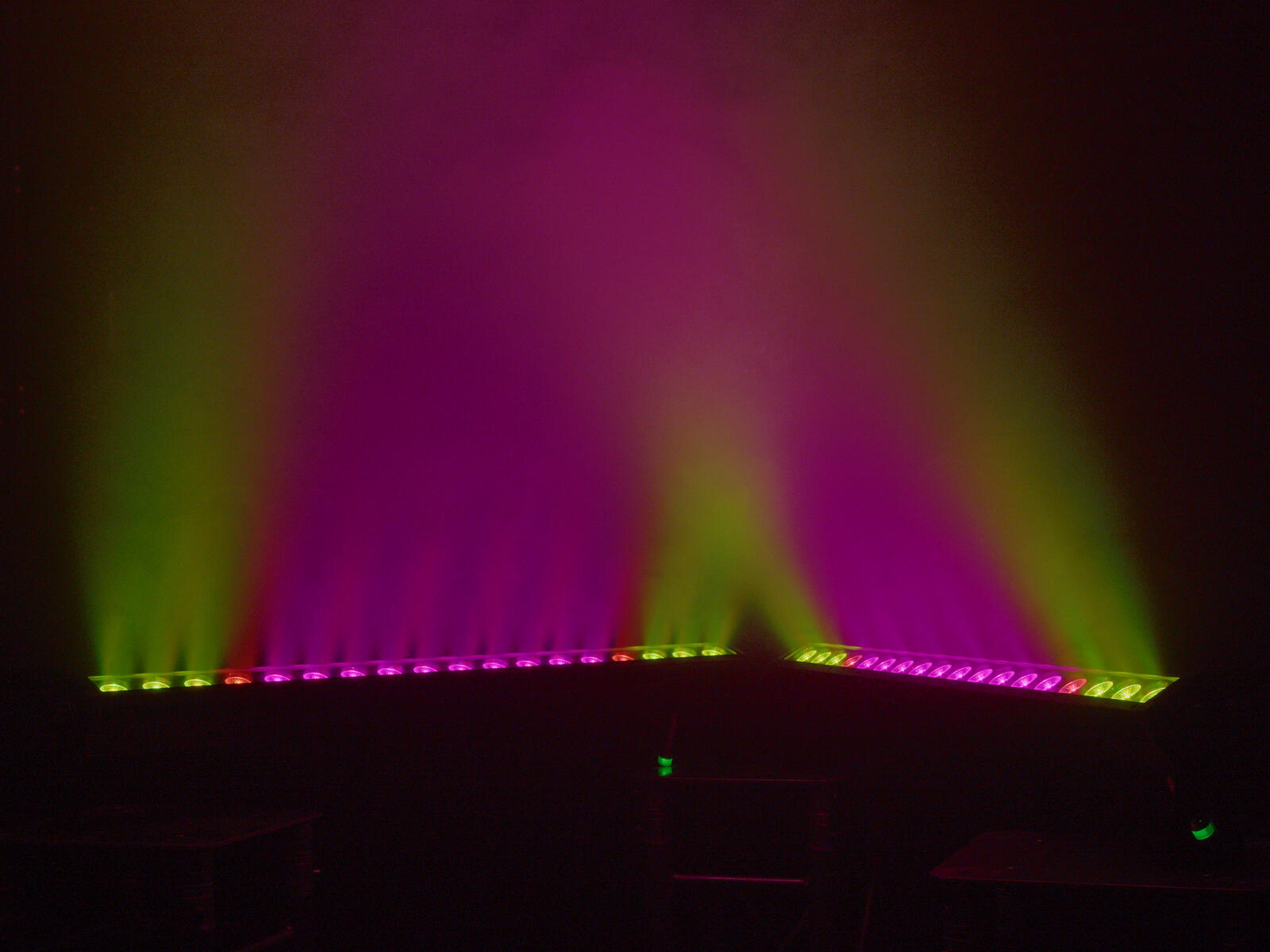

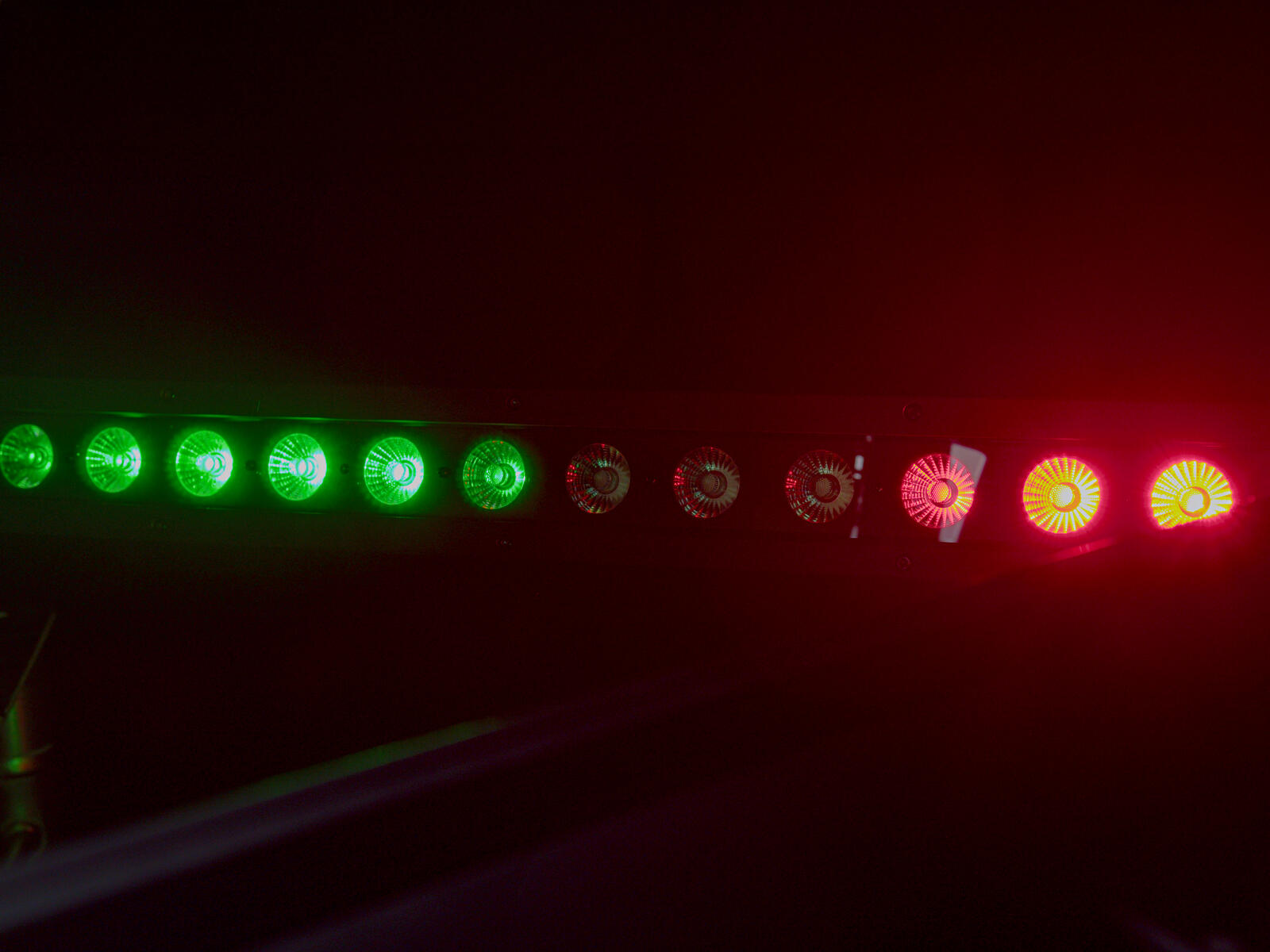

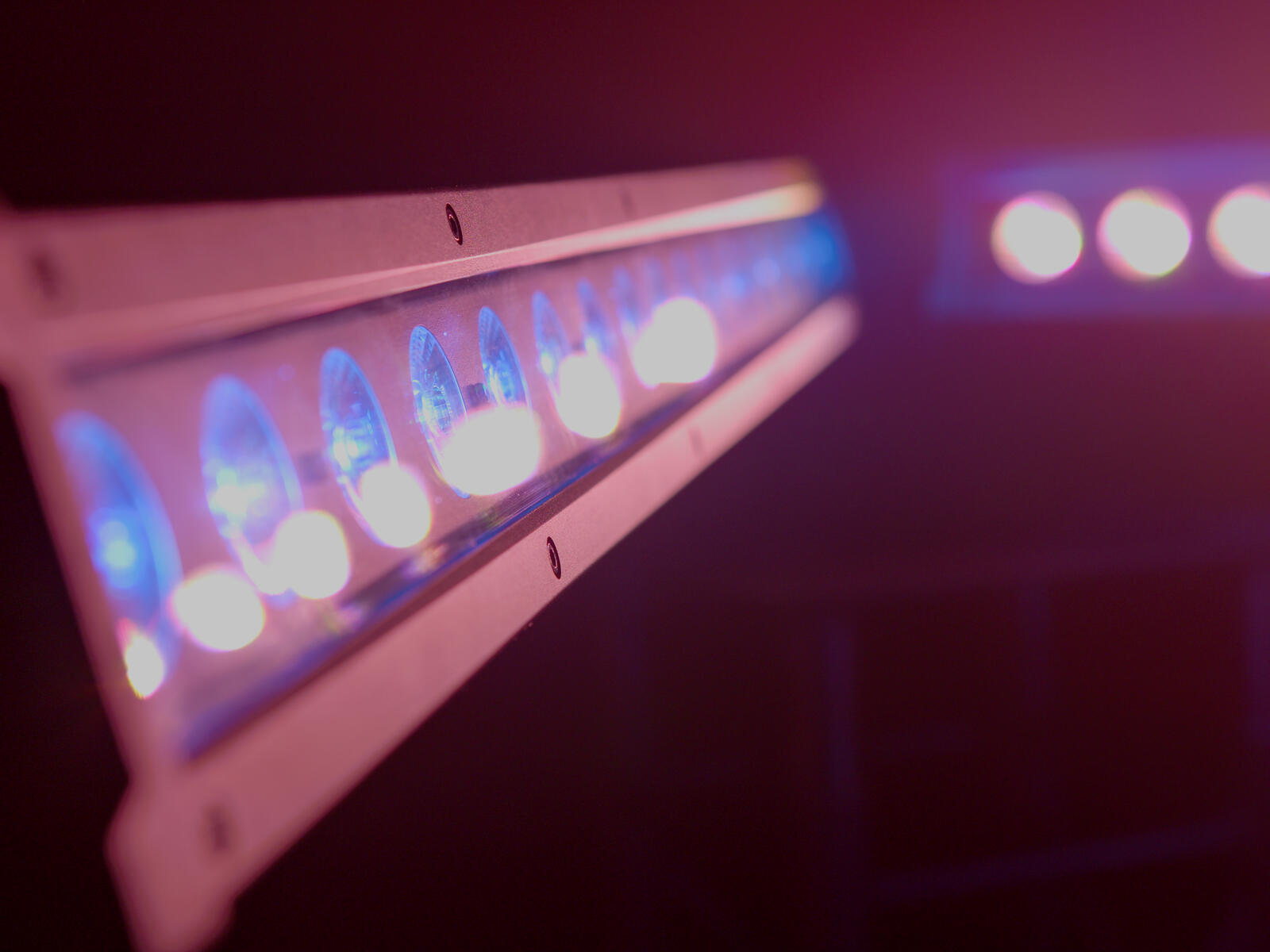

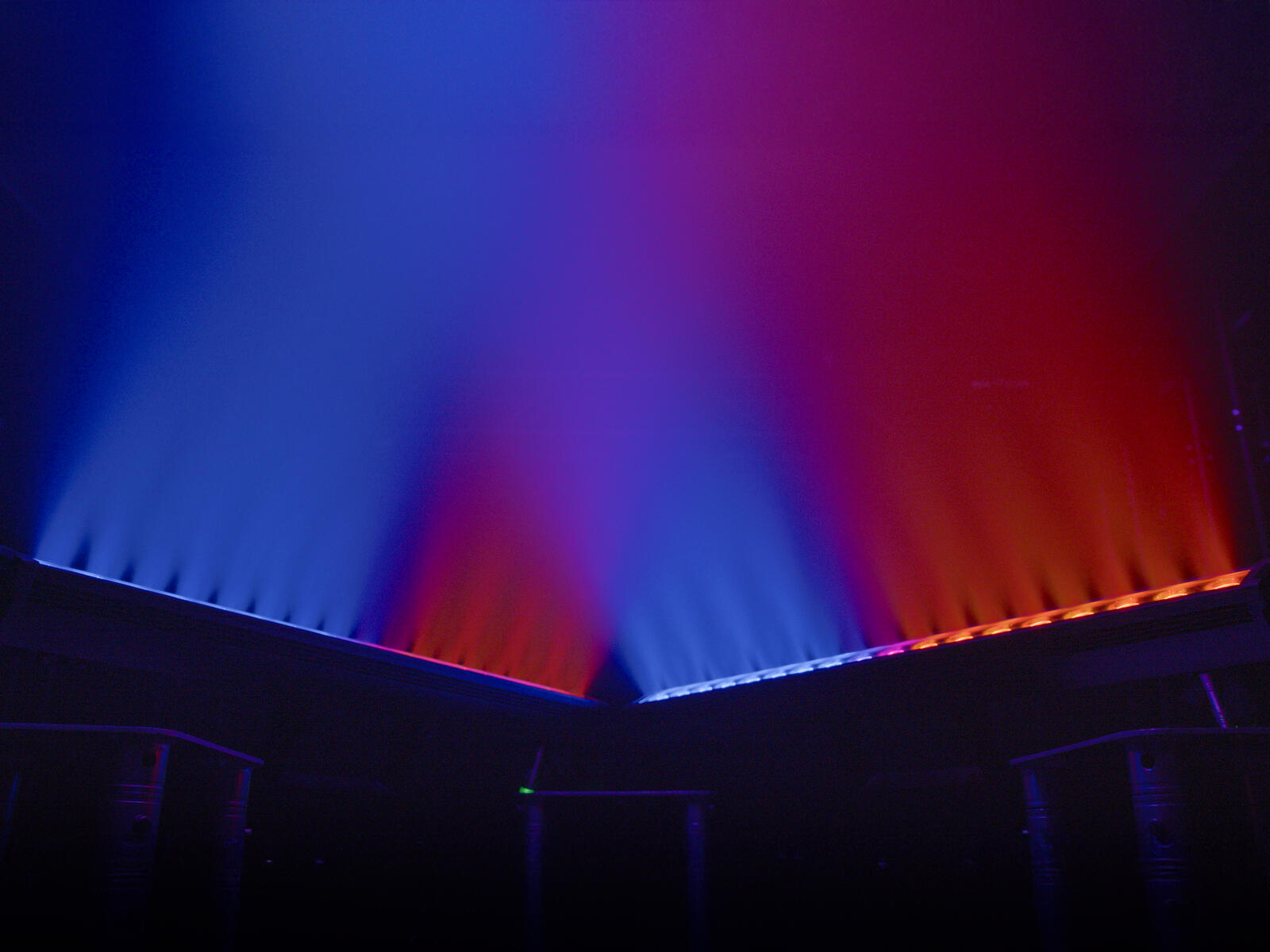

This weatherproof bar delivers versatile pixel effects across a length of 106.5 centimeters. It features 18 individually controllable LEDs with RGBW color mixing, enabling creative lighting designs. For easier operation, reduced DMX modes with fewer pixels are also available.

With an IP65 rating, the bar is suitable for both permanent installations and outdoor events, even in heavy rain.

Thanks to its fanless design, it operates whisper-quiet and prevents dust from entering the unit, making it an excellent choice for many indoor installation scenarios as well.

Weatherproof (IP65) bar with RGBW color mixing and pixel control, incl. IR remote control

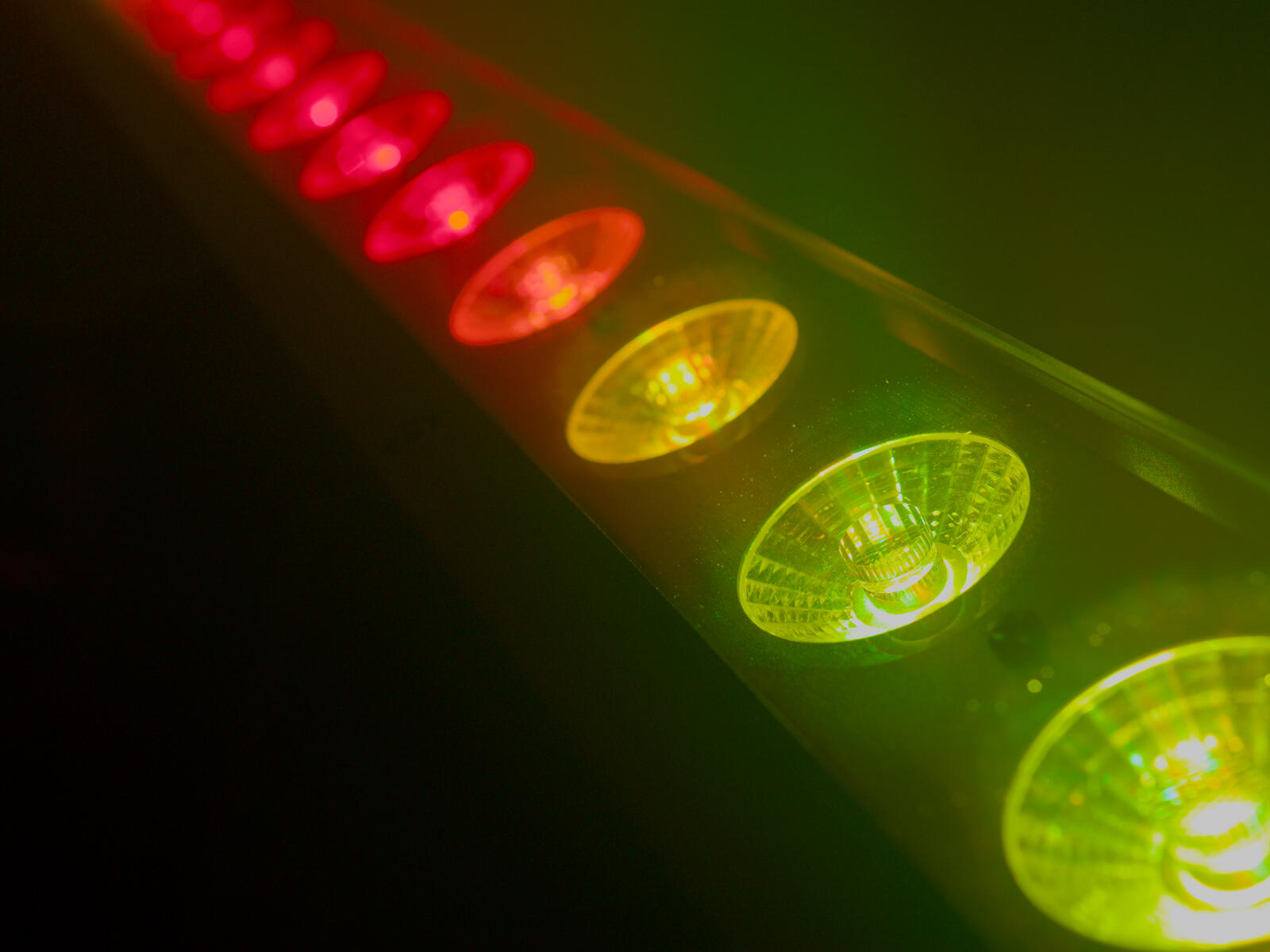

18 LEDs 8 W SMD 9080 4in1 QCL RGBW (homogenous color mix)
LEDs controlled separately
Dimmer electronic; color change adjustable
Wash effect; strobe effect
12 integrated show programs
Direct color selection for 19 preset colors
The device is cooled by passive convection cooling
Control via stand-alone; IR remote control; DMX; master/slave function
Flicker-free
DMX fail mode (blackout; hold; full on; static; auto)
With a beam angle of 18°
With mounting bracket; with bracket for floor use

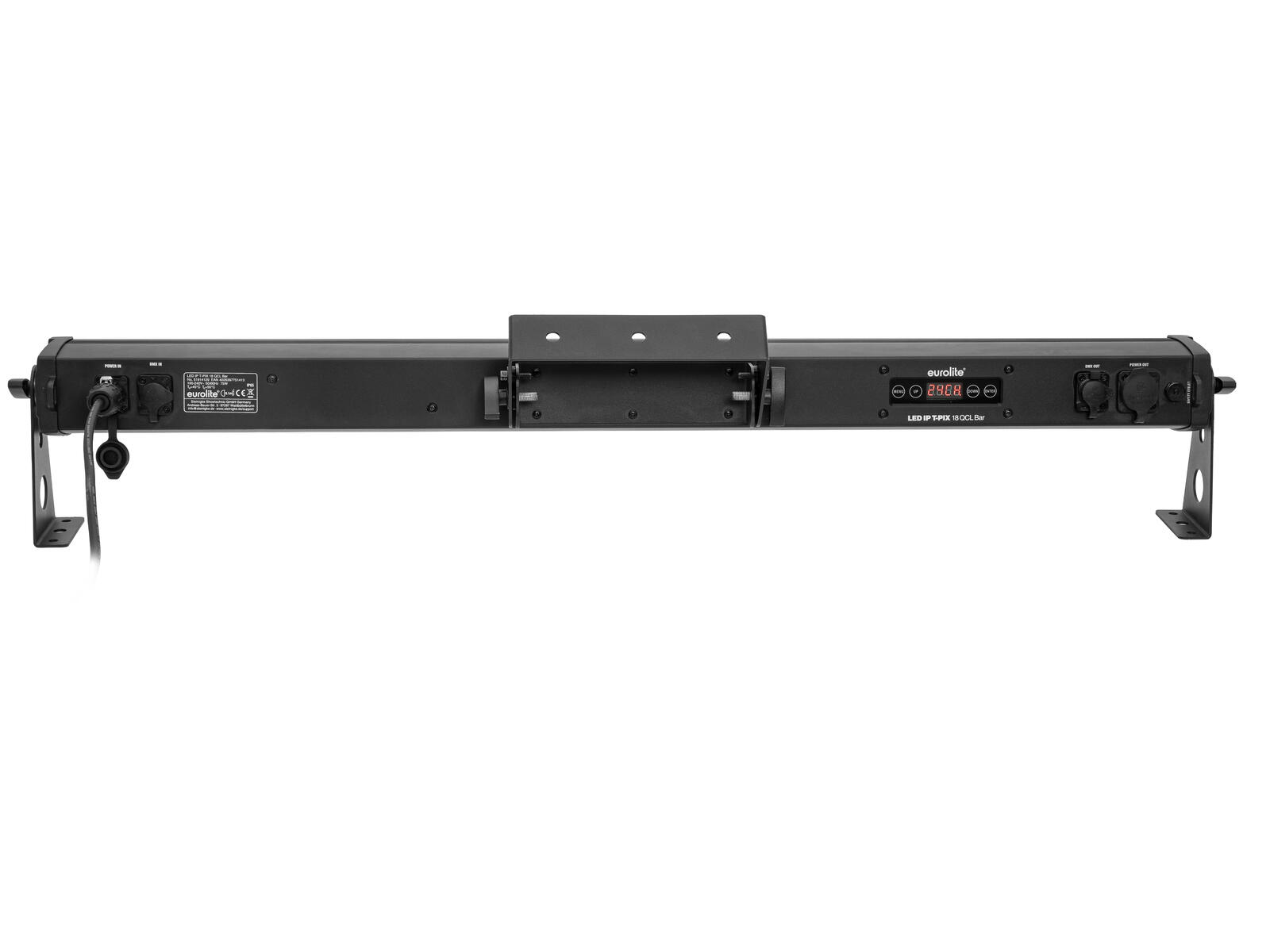

4 digit 7-segment LED display

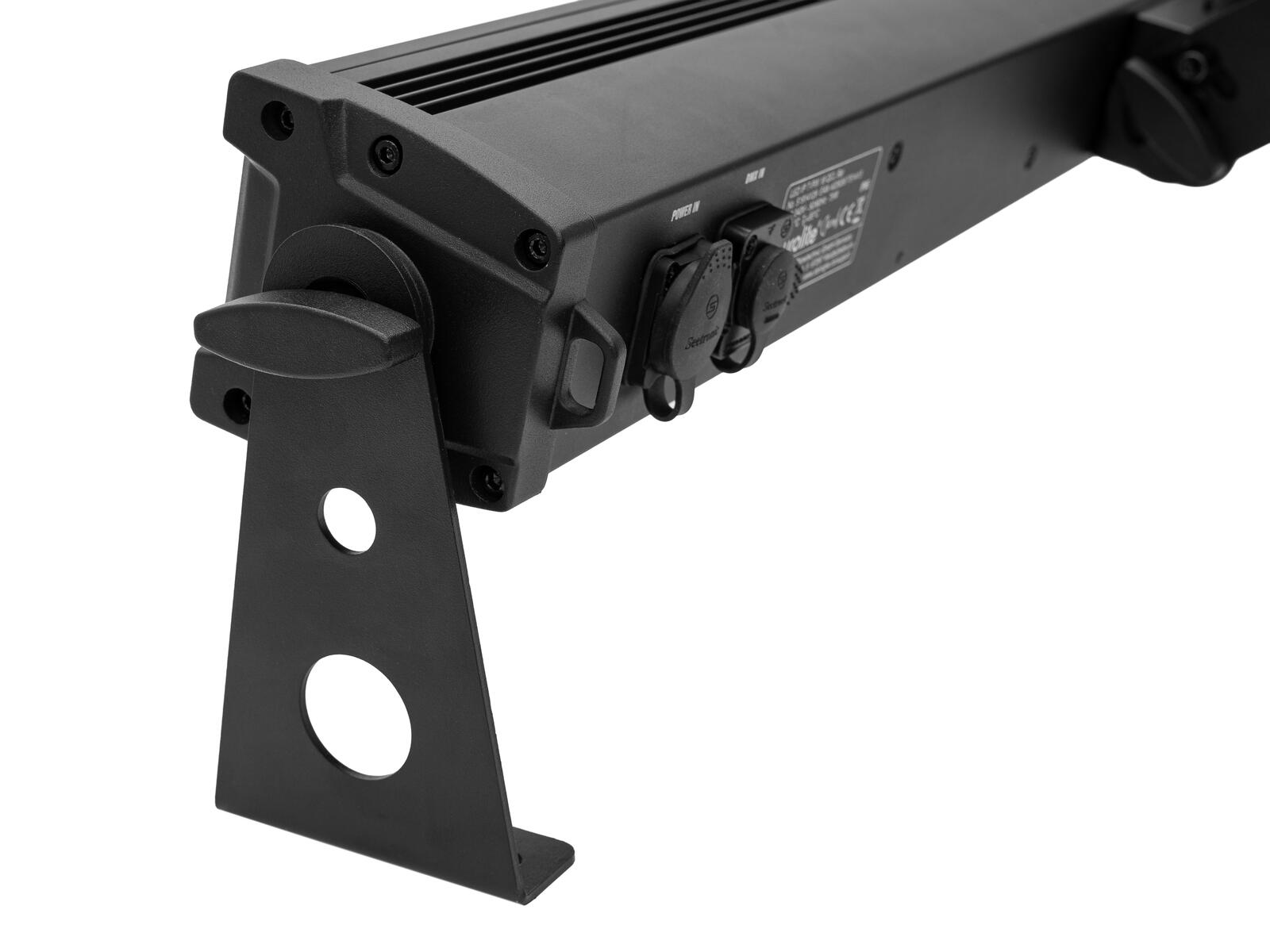

Mains input and output for power linking up to 8 units
Built with SEETRONIC connector
Suitable for outdoor use IP65
With pressure compensation membrane
For application areas such as: Clubs/dancing school; stage; restaurants, bars and hotels; installation
Silent operation
Application possibility: Suspended
Fixtures available for Light Captain
