PAR spot with 12 x 8 W 4in1 LED and RGBW color mixing
EUROLITE LED PAR-64 QCL 12x8W floor bl

PAR spot with 12 x 8 W 4in1 LED and RGBW color mixing-MainBild

14°

PAR spot with 12 x 8 W 4in1 LED and RGBW color mixing

EUROLITE LED PAR-64 QCL 12x8W floor bl

The article is no longer in our assortment.

No. 51914030

Print product

Product badge

Here you find the manual and downloads for
EUROLITE LED PAR-64 QCL 12x8W floor bl

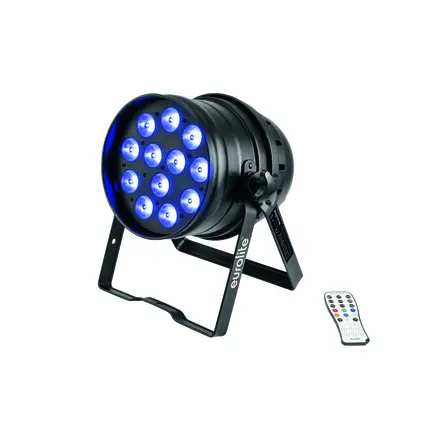

PAR spotlight with RGBW color mixing incl. remote control

The Eurolite LED PAR-64 is equipped with 12 powerful RGBW-LEDs (4in1) of 8 Watt each. You can use it on stage, in the club lighting area or as a floor spot, thanks to its additional bracket for placement.
The color temperature of the white tone is adjustable in six steps, the RGBW color mixing is stepless. 24 colors can be selected directly. The spotlight has a dimmer and strobe effect.

The effect spot can be controlled via DMX, standalone or via music control via the built-in microphone with adjustable microphone sensitivity. In auto and music mode you can play the integrated show programs.
Addressing and settings are possible via a control unit with four-digit LED display. Up to eight devices can be easily interconnected using the existing IEC mains connections.

The Eurolite LED PAR-64 can be easily remote controlled with the supplied infrared remote control.

Features

PAR spot with 12 x 8 W 4in1 LED and RGBW color mixing

Stepless color blend, color change, color fade, dimmer and strobe effect
Mains input and output for power linking up to 8 units
12 powerful LEDs 8 W high-power 4in1 QCL RGBW (homogenous color mix)
Strobe effect
Integrated show programs
Direct color selection for 24 preset colors
Control via stand-alone; DMX; IR remote control; sound to light via microphone; master/slave function
Preprogrammed in Light´J; LED PC-Control 512; EASY SHOW 1; LED EASY OPERATOR 4x4; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE; Light Captain
Flicker-free
With a beam angle of 14°
With double bracket

Package contents

1 x spotlight, 1 x user manual, 1 x power cord, 1 x remote control, 1 x battery

Technical specifications

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	70 W
IP classification:	IP20
Protection class:	Protection class I
Power connection:	Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Power output:	1 x IEC connector (F) mounting version
Lamp type:	LED lamp
LED type:	12 x 8 W high-power 4in1 QCL RGBW (homogenous color mix)
DMX channels:	2; 3; 4; 5; 6; 9
DMX input:	1 x 3-pin XLR (M) mounting version
DMX output:	1 x 3-pin XLR (F) mounting version
Control:	Stand-alone; DMX; IR remote control; sound to light via microphone; master/slave function
Preprogrammed in:	Light´J; LED PC-Control 512; EASY SHOW 1; LED EASY OPERATOR 4x4; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE; Light Captain
Projection:	Flicker-free
Beam angle:	14°
Beam angle (1/2 peak):	14°
Beam angle (1/10 peak):	29°
Housing color:	Black
Attachment system:	Double bracket
Dimensions:	Width: 29,6 cm Depth: 27,3 cm Height: 34 cm
Weight:	2,70 kg
Remote control
Battery:	1 x button cell 3.0 V CR2025 lithium manganese built-in
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting

Packaging units

PU	EAN	Weight	Dimensions
1	4026397613827	3,11 kg	25,5cm x 25,5cm x 34cm
4	4026397613834	13,55 kg	53,5cm x 53,5cm x 38cm

Accessories

Loading accessories. Please wait...

Support

Spare parts

LED QCL 8W RGBW (TX-BRWG2B140)

Pcb (Power supply) 24V/3A LED PAR-64 QCL 12x8W (FX-PFC1-AB RVE1.1)

PCB (Control) LED PAR-64 QCL (P4-016V2.2)

More 1 spare parts

Downloads

Loading the documents. Please wait...

Manufacturer information

Steinigke Showtechnic GmbH
Andreas-Bauer-Str. 5
D-97297 Waldbüttelbrunn

+49 931 4061 600
info@steinigke.de
www.steinigke.de/support
