Advanced lighting-control recorder and stand-alone playback unit for 1024 channels
MADRIX AURA 2

Advanced lighting-control recorder and stand-alone playback unit for 1024 channels-MainBild

Advanced lighting-control recorder and stand-alone playback unit for 1024 channels-Bild-1

Advanced lighting-control recorder and stand-alone playback unit for 1024 channels

MADRIX AURA 2

Stock for approx. 12 wk(s)

Priceon demand

Find a dealer

List price excl. 19% VAT
Prices in retail stores may vary.

Item no. 51860391

Print product

Product badge

Here you find the manual and downloads for
MADRIX AURA 2

MADRIX AURA

MADRIX AURA is the advanced recorder and stand-alone playback unit for your lighting.
It is small in size, but mighty in features.

Record any Art-Net or Streaming ACN network stream. MADRIX AURA can then play back sophisticated light shows, effects, and visuals from SD card. Run a scheduled playlist, or trigger scenes externally with tools like MADRIX ORION.

Stand-Alone Playback

Run the most sophisticated light shows from this energy-efficient playback unit via Art-Net or Streaming ACN. Easily control up to 2, 8, or 32 universes per device.

Live Recording

Record any Art-Net or Streaming ACN network stream onto the inserted memory card. Unlike any other solution, recording a beautiful light show with MADRIX 5 is as easy as pressing record and play.

Time-Controlled Shows

Run scenes automatically with the help of the internal clock as well as the available sunrise and sunset timers.

Master-Slave synchronization & scalability

Manage large projects by connecting several units. The entire group is automatically synchronized across all DMX universes for smooth and uninterrupted playback.

Web Configuration

Use the built-in web configuration page to access and change specific device settings, such as the important IP address, universes, playlist settings, and much more.

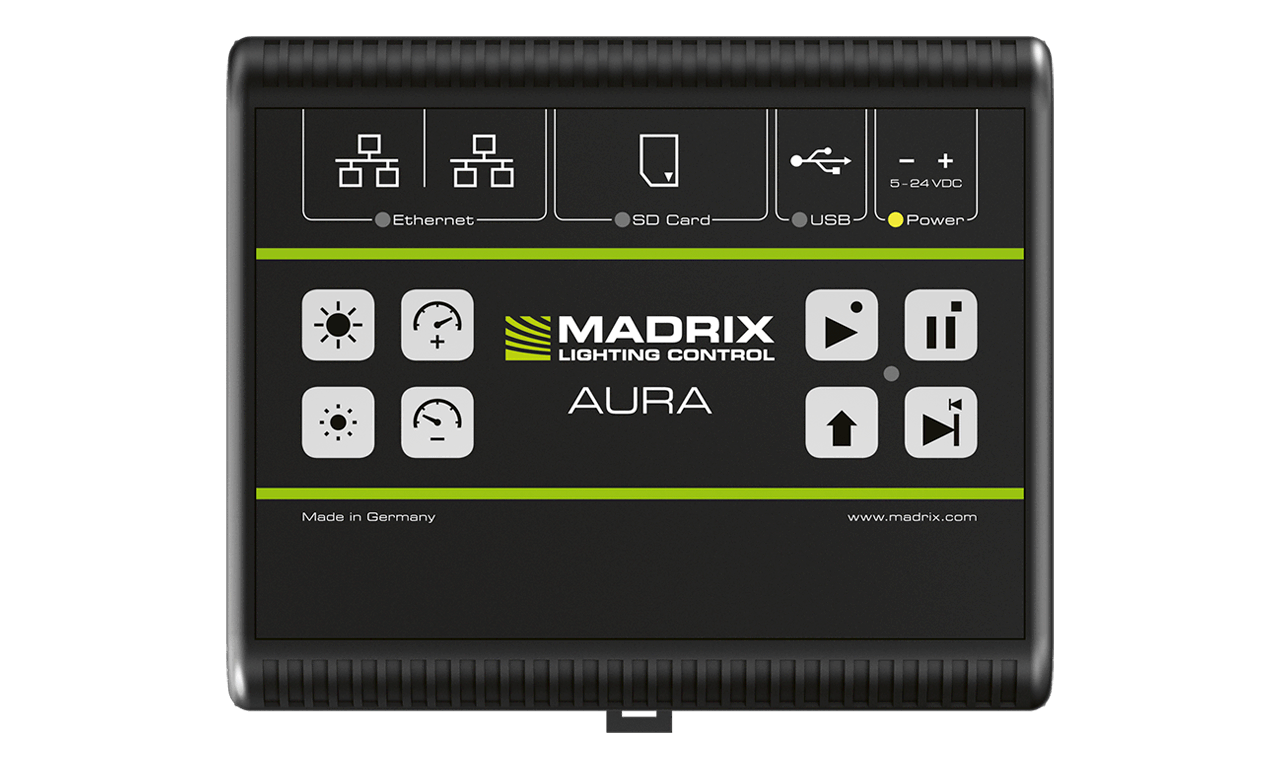

Live Control

Encased in a non-conductive design for DIN rails or wall mounting, 8 on-device buttons allow for quick playback and recording control. You can also directly adjust the overall speed and intensity.

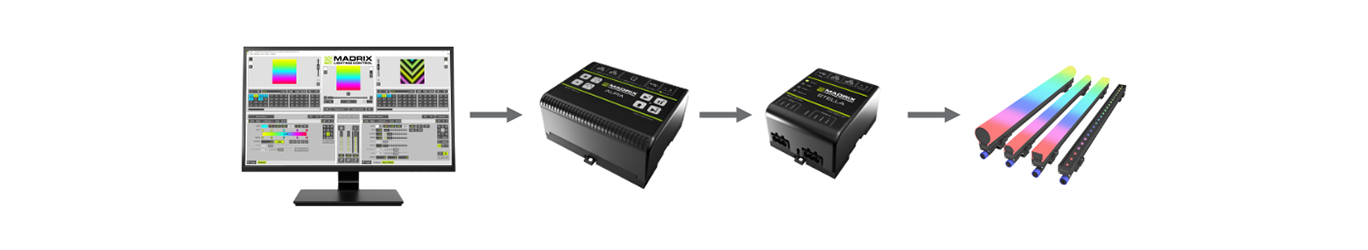

Central Hub

Simply connect compatible MADRIX hardware interfaces or third-party nodes to provide the correct output for your lighting fixtures.

LED Lighting Control

MADRIX 5 is the ultimate tool for pixel mapping in 2D or 3D. Use it as the source and content provider for MADRIX AURA, or record any Art-Net or Streaming ACN network stream onto the inserted memory card.

Remote Control

Trigger MADRIX AURA via user-definable HTTP commands and the built-in web server or use Art-Net/sACN. You can also add MADRIX ORION for interactive installations.

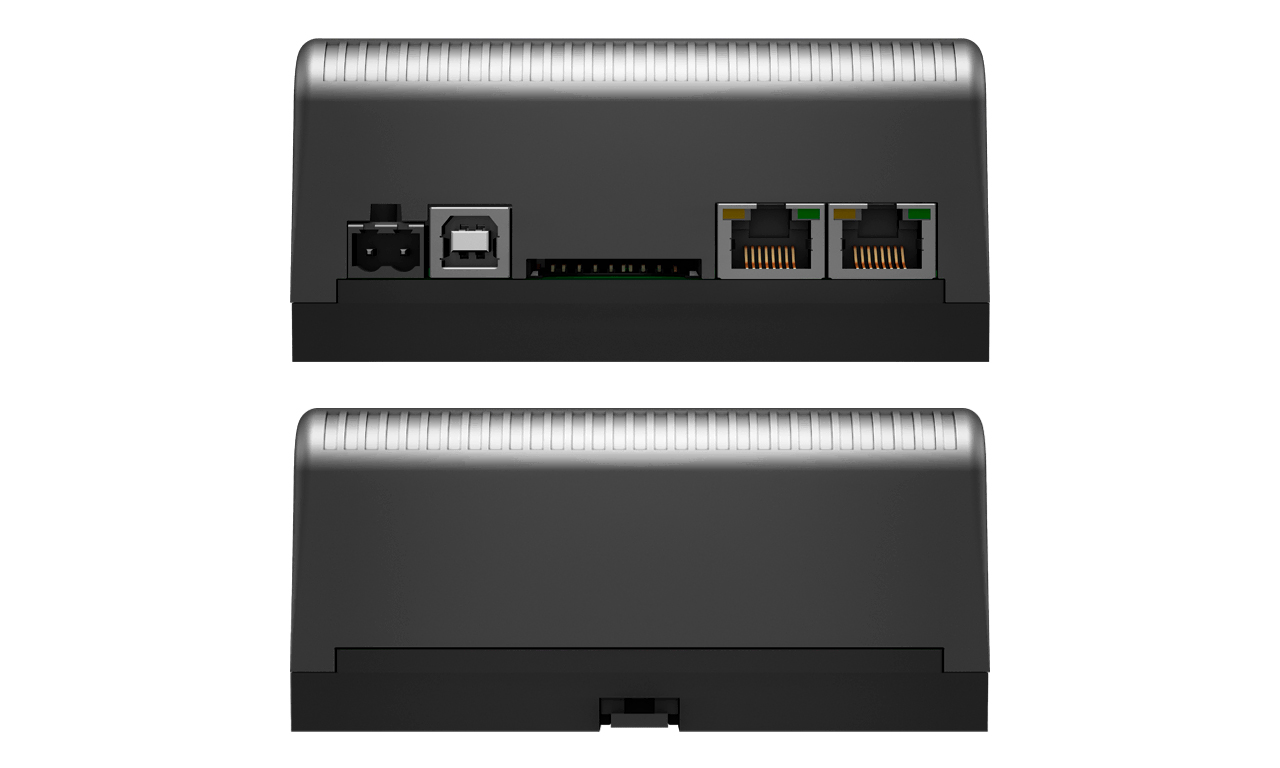

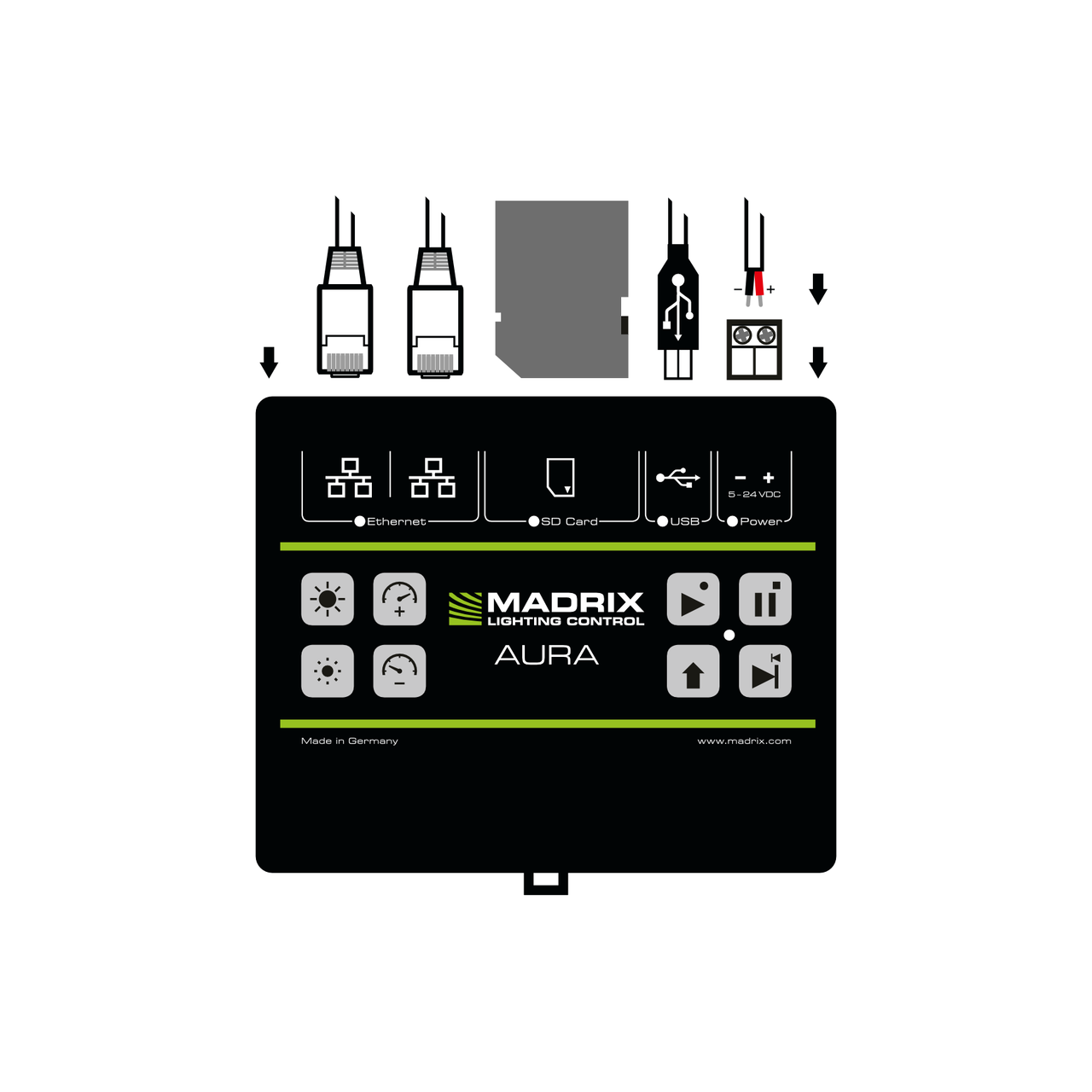

Connectivity

• 2x RJ45 Ethernet ports
• 1x SD-Card slot
• 1x USB port
• 1x Power (via pluggable screw terminal)

Package Contents

• 1x MADRIX AURA
• 1x SDHC card (inserted into the device)
• 1x Network cable
• 1x Pluggable screw terminal (2-pin)
• 2x Wall-mount brackets
• 1x Technical manual / quick start guide

Features

Advanced lighting-control recorder and stand-alone playback unit for 1024 channels

Can transmit up to 1024 DMX channels
Made in Europe
For application areas such as: Clubs/dancing school; Trade fair and shop fitting; installation; stage; restaurants, bars and hotels; architecture
For further information about this product, please refer to the Data Sheet under "Downloads"

Technical specifications

Power supply:	5-24 V DC 300 mA
Power consumption:	1,5 W
IP classification:	IP20
Power connection:	Mains input via special connector recessed mounting Mains input via USB, type B
DMX channels:	Output 1024
Network connection:	Protocol: ArtNet 3 via 2x RJ-45 (F) mounting version, 10/100/1000 Mbit/s; protocol: Streaming ACN (sACN / ANSI E1.31) via RJ-45 (F) mounting version, 10/100/1000 Mbit/s
USB port:	1 x USB 2.0, type B

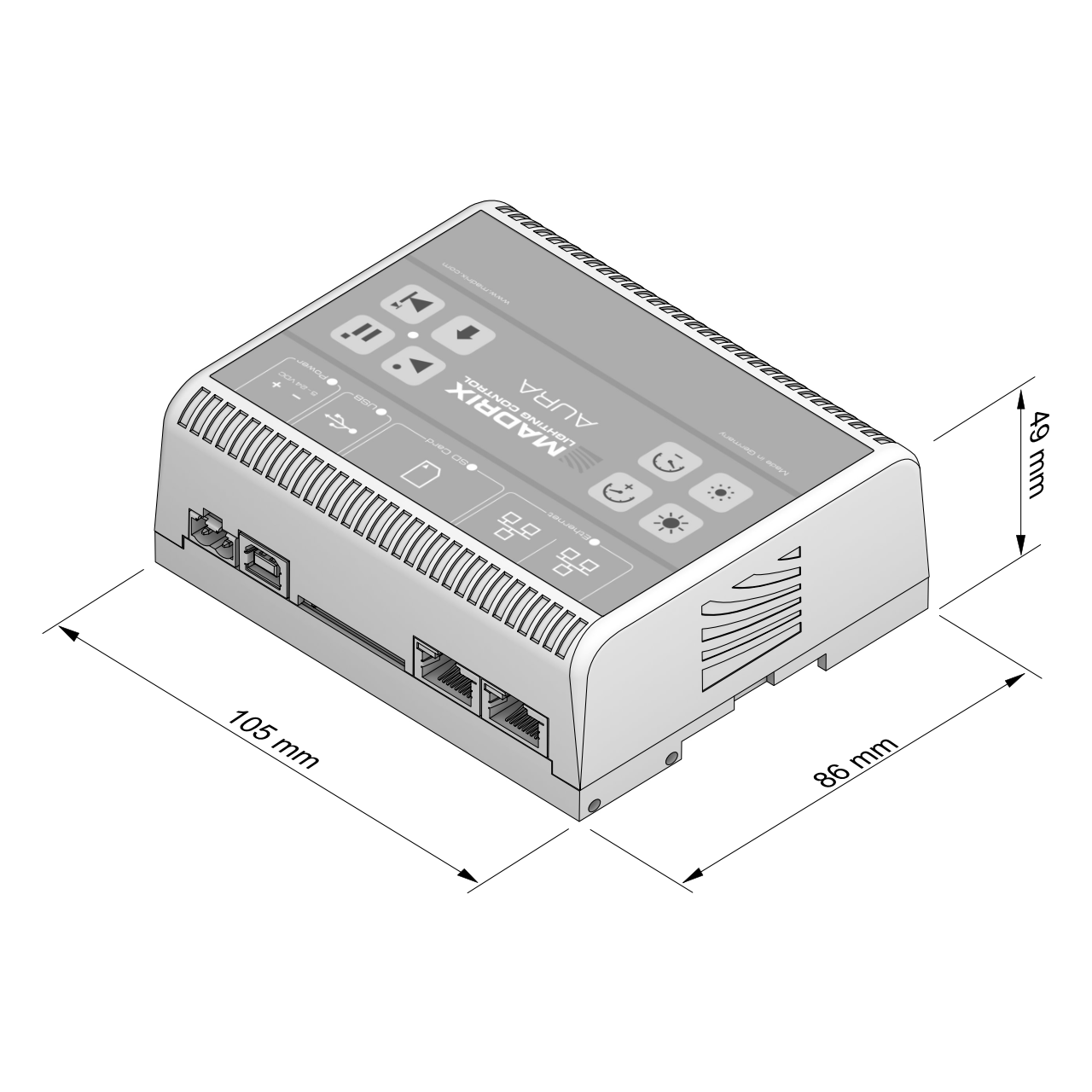

Dimensions:	Length: 10,5 cm Width: 8,6 cm Depth: 4,9 cm
Weight:	148 g

Packaging units

PU	EAN	Weight	Dimensions
1	4260263421295	0,34 kg	19,5cm x 14cm x 70cm
1	4026397685435	0,34 kg	19,5cm x 14cm x 7cm
