Technical specifications

Power supply:	5-24V AC
DMX channels:	Output 4096
Network connection:	Protocol: Art-Net 1,2,3,4 incl. ArtSync via 2x RJ-45 (F) mounting version, 10/100/1000 Mbit/s Protocol: Streaming ACN (sACN / ANSI E1.31) via 2x RJ-45 (F) mounting version, 10/100/1000 Mbit/s
Cooling:	Passive convection cooling
Control:	DMX; RDM; Art-Net
USB port:	2 x USB 2.0, type C
PC connect:	MADRIX software via USB
Dimensions:	Width: 15.63 cm Depth: 8.6 cm Height: 3.179 cm
Weight:	0.32 kg

Packaging units

PU	EAN	Weight	Dimensions
1	4260263421332	0,43 kg	19,5cm x 13cm x 4,5cm

Spare parts

Downloads

Spezifications

Name	Version	Language
Spezifications as PDF
Product badge
Specifications as PDF neutral
Product badge neutral

Data sheet

Name	Version	Language
51860366-Datasheet-163261-1.0000-en.pdf (388 KB)	1.0000	en

All images

Name	Version	Language
51860366-Images-.zip

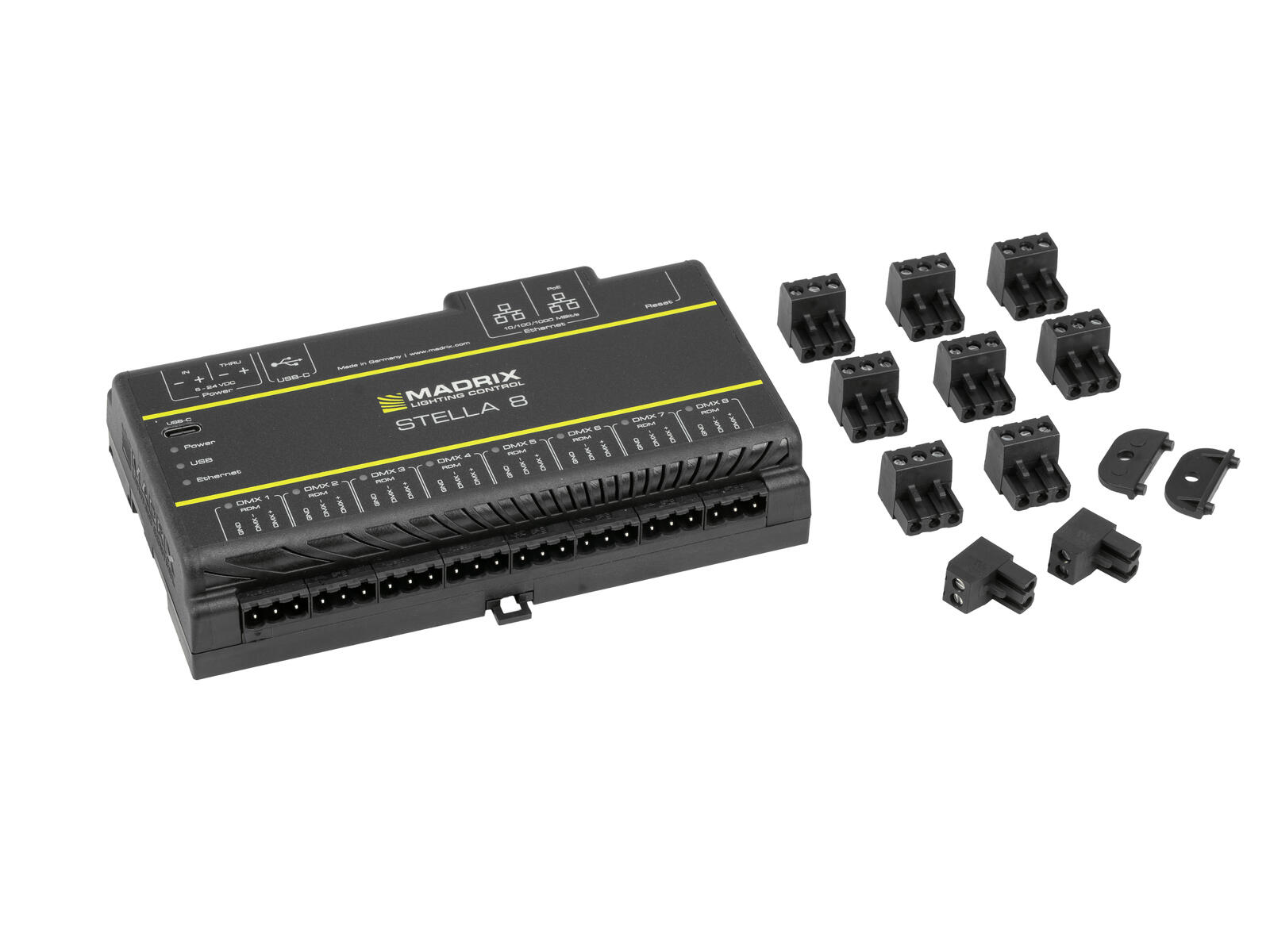

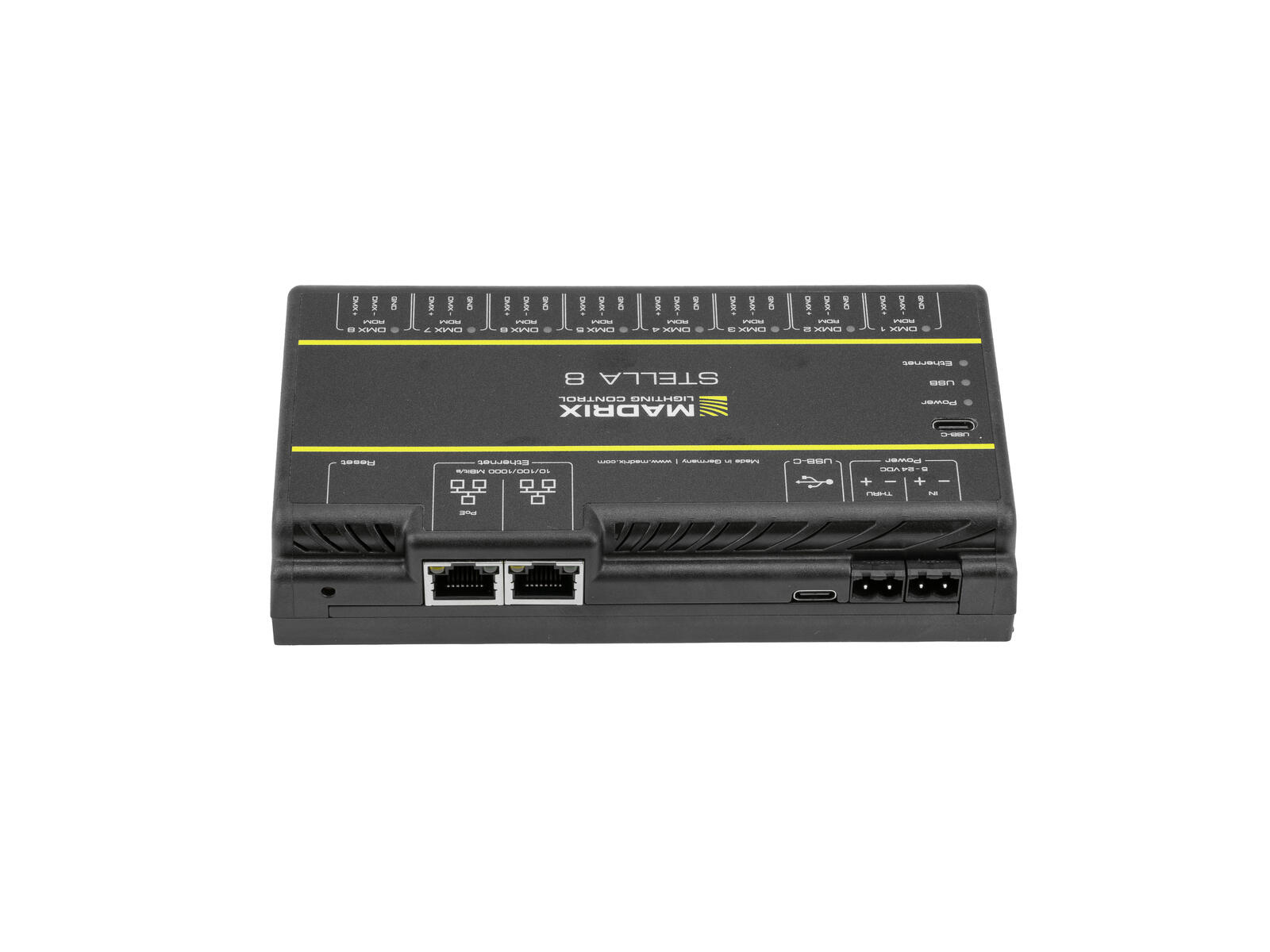

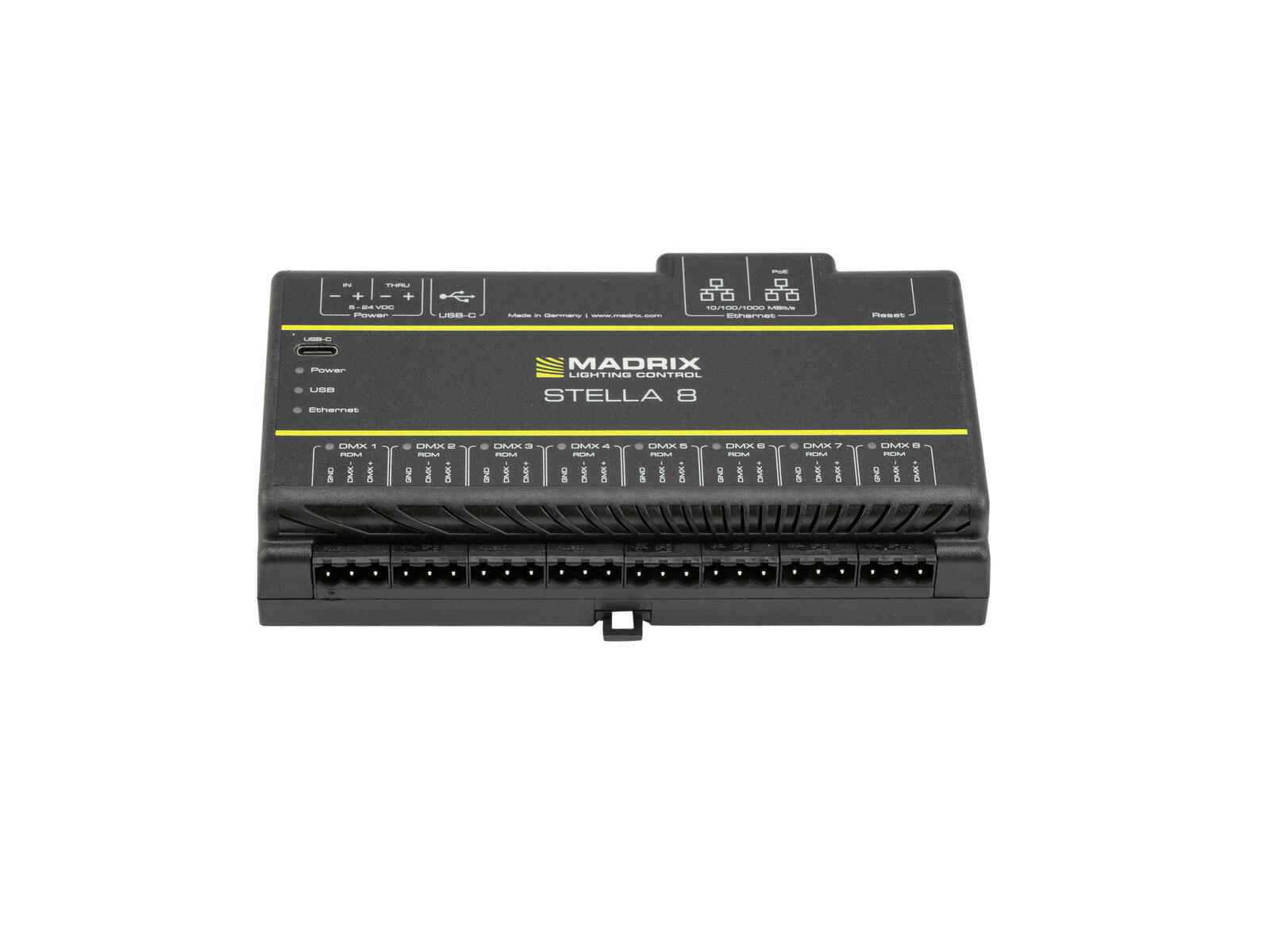

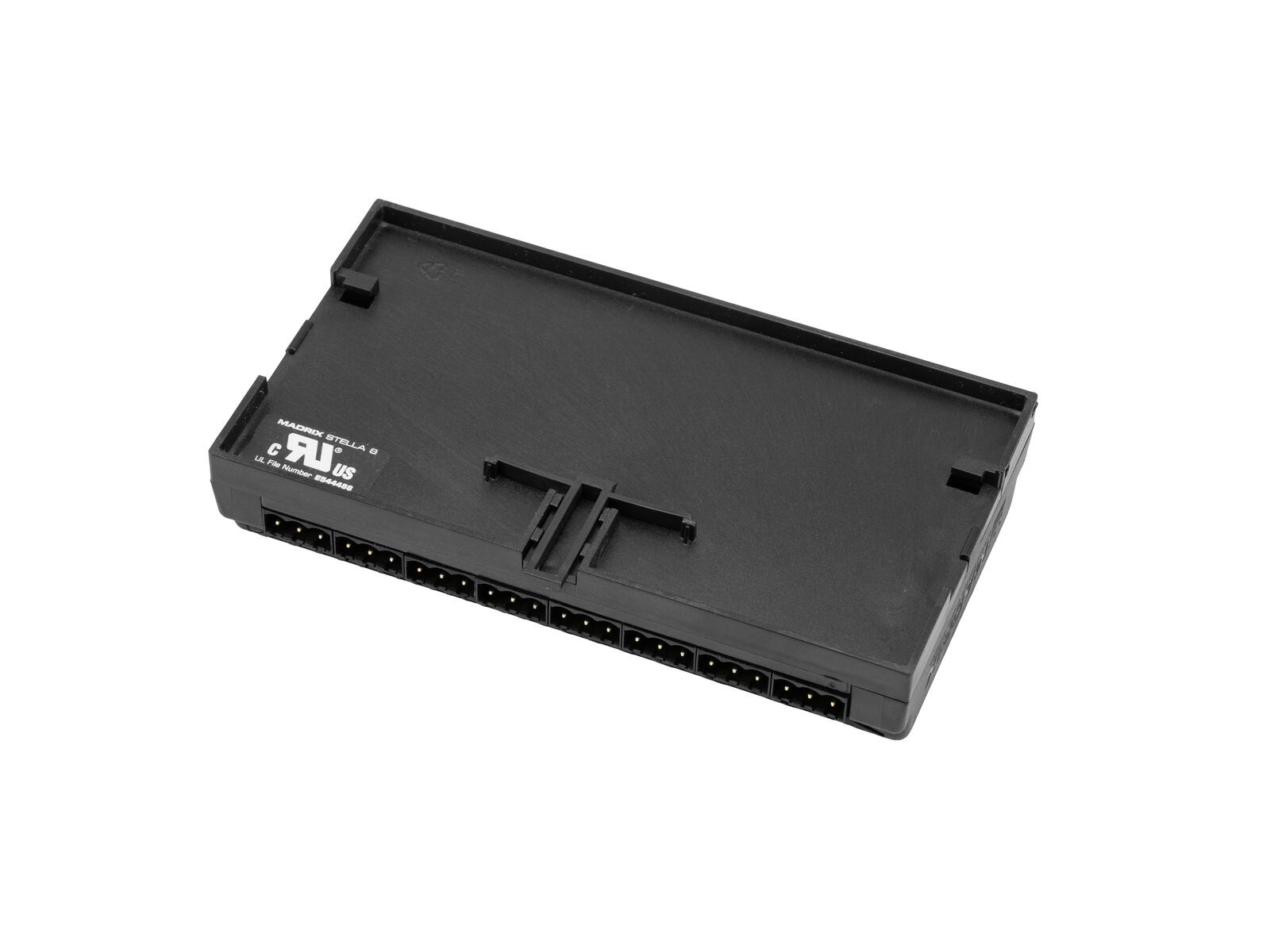

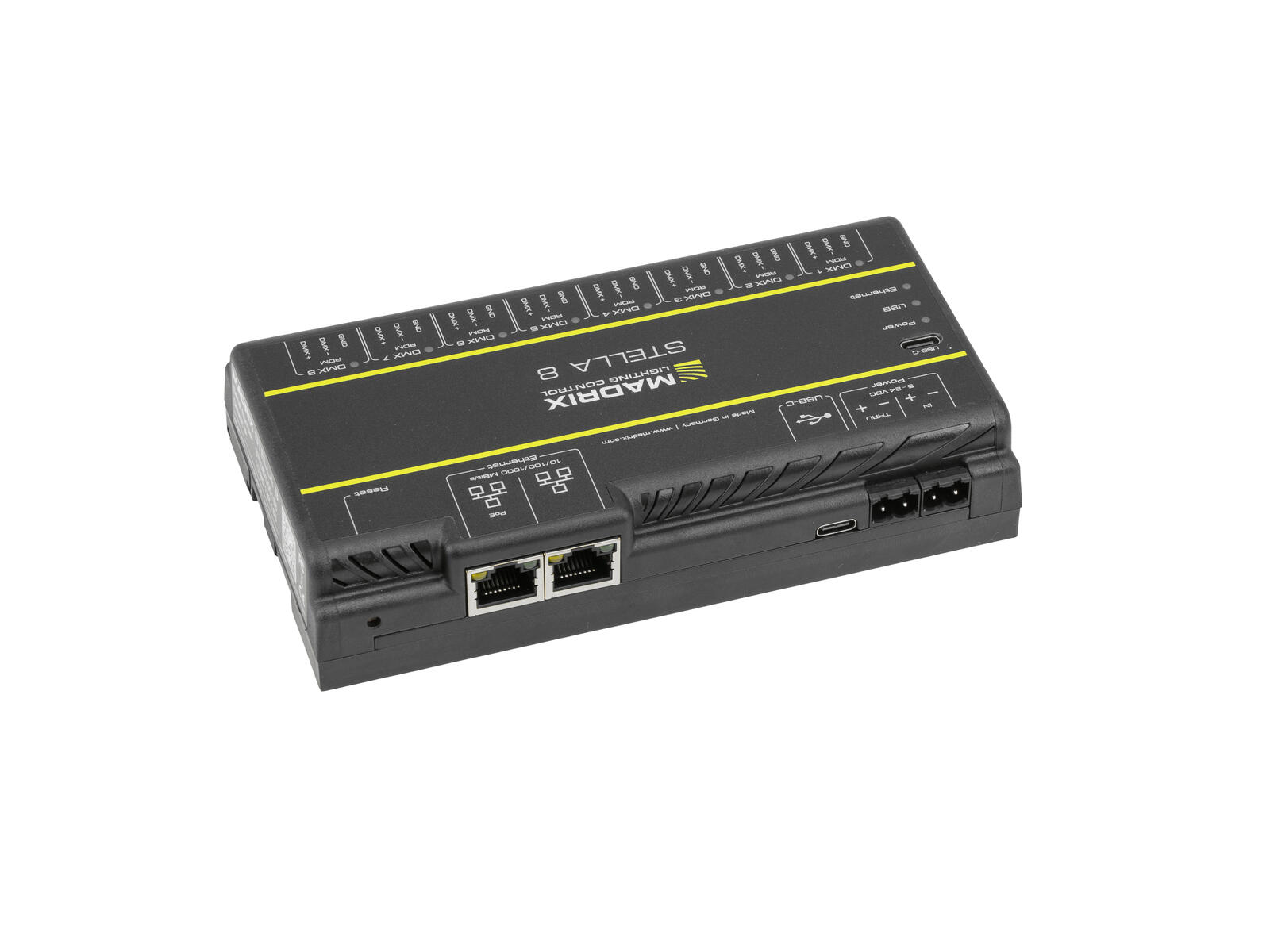

MADRIX STELLA 8

Stock for approx. 12 wk(s)

Priceon demand

Find a dealer

Stock for approx. 12 wk(s)

List price excl. 19% VAT
Prices in retail stores may vary.

No. 51860366

Art-Net and USB interface for output of 4096 channels

Can transmit up to 4096 DMX channels
The device is cooled by passive convection cooling
Control via DMX; RDM; Art-Net
The device can be connected via USB to the PC in connection with MADRIX software
Made in Germany
For application areas such as: Clubs/dancing school; Trade fair and shop fitting; installation; restaurants, bars and hotels; architecture
For further information about this product, please refer to the Data Sheet under "Downloads"
