Profile moving head with 640 W COB LED, motorized shutter blades, large zoom, CMY+CTO color mixing and animation wheel
FUTURELIGHT DMH-640 Profile CMY Moving Head Spot

download image

Detail images (22 overall)

10 - 47°

Profile moving head with 640 W COB LED, motorized shutter blades, large zoom, CMY+CTO color mixing and animation wheel

FUTURELIGHT DMH-640 Profile CMY Moving Head Spot

Stock for approx. 12 wk(s)

Priceon demand

Save money: This article is available in a bundle.

Find a dealer

Due to the dimensions of this article, different shipping conditions apply.

List price excl. 19% VAT
Prices in retail stores may vary.

Item no. 51841990

Print product

Product badge

Here you find the manual and downloads for
FUTURELIGHT DMH-640 Profile CMY Moving Head Spot

FUTURELIGHT DMH-640:

Powerful LED moving spotlight

With the DMH-640, Futurelight offers an LED moving spotlight that impresses in terms of performance and features. This versatile device is suitable for a wide range of applications, from live concerts to theater productions.

Features

The DMH-640 has a 640-watt LED that provides high light output. With CMY color mixing, frost filter and two gobo wheels, the DMH-640 offers a wide range of creative possibilities.

The CMY color mixing enables smooth color transitions and an almost unlimited selection of colors. In addition, the gobo wheels create impressive visual effects that give every show that certain something.

Shutter sliders and zoom

Four motorized shutters can precisely limit the light by means of retractable and rotatable shutters, which is particularly advantageous for theatrical applications. The zoom range extends from 10° to 47°, allowing the DMH-640 to be used flexibly for various lighting scenarios: from narrow beams to wide wash effects.

Application

The DMH-640 is designed for use in fog as well as for projections. When selecting the gobos, care was taken to ensure that both impressive projections and clear structures in the fog are possible. With its CRI filter and very quiet operation, the moving head is therefore a good choice for a wide range of applications, including live events, theater productions and installations.

Connections

The DMX connections are both 3-pin and 5-pin, allowing flexible integration into existing lighting systems.The power connection is made via T-Con.

Save money: This article is available in a bundle.

Sets are loaded. Please wait...

Features

Profile moving head with 640 W COB LED, motorized shutter blades, large zoom, CMY+CTO color mixing and animation wheel

1 powerful LED 640 W COB (chip-on-board) cold white (CW)
Positioning within 540° PAN, 260° TILT
Auto position correction (feedback)
Exact positioning (16 bit resolution)
Exact 16 bit resolution at Dimmer, zoom, focus, gobo rotation
Prism 4-fold rotating; iris; frost filter linear; zoom motor driven; focus motor-driven; animation wheel; shutter blades motor-driven
Pulse-width modulation variable
CMY+CTO color mixing for indefinite color variations
Color wheel with 8 dichroic filters plus open
rainbow effect with adjustable speed in both directions
Gobo wheel with rotating gobos, 7 gobos and open
shake effect
Gobo indexable
Slot-in gobo system for easy gobo replacement
Gobo wheel with static gobos, 8 gobos and open
shake effect
The device is cooled by temperature-controlled fan at the Head; temperature-controlled fan at the base
Control via stand-alone; master/slave function; DMX; RDM; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); CRMX by LumenRadio upgradeable; W-DMX by wireless solution via USB (optional)
Flicker-free
With a beam angle of 10° - 47°
Good color rendering index (CRI)
With omega bracket
Multicolor LCD display,
with battery buffering for easy controlling upgradeable
For application areas such as: Wedding/gala/events; stage; theater; rental
Very quiet working noise
Application possibility: Standing; suspended

Package contents

1 x moving light, 1 x user manual, 1 x power cord, 2 x omega bracket, 1 x XLR cable

Technical specifications

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	750 W
IP classification:	IP20
Protection class:	Protection class I
Power connection:	Mains input via IP T-Con (M) mounting version power supply cord with safety plug
Device fuse:	6.3 x 32 mm, 5 A fuse replaceable
Lamp type:	LED lamp
LED type:	1 x 640 W COB (chip-on-board) cold white (CW)
Max. TILT movement:	260° exact positioning (16 bit resolution) auto position correction (feedback)
Max. PAN movement:	540° exact positioning (16 bit resolution) auto position correction (feedback)
Flash rate:	1 - 16 Hz
Equipment:	Prism 4-fold rotating; iris; frost filter linear; zoom motor driven; focus motor-driven; animation wheel; shutter blades motor-driven
Color generation:	CMY+CTO color mixing for indefinite color variations
Color generation:	Color wheel with 8 dichroic filters plus open Rainbow effect with adjustable speed in both directions
Gobos:	Gobo wheel with rotating gobos, 7 gobos and open Outside diameter 30mm Image diameter 22mm Shake effect Gobo indexable Slot-in gobo system for easy gobo replacement Gobo wheel with static gobos, 8 gobos and open Shake effect
DMX channels:	33; 35; 39
DMX input:	5-pin XLR (M) mounting version IP 3-pin XLR (M) mounting version IP
DMX output:	5-pin XLR (F) mounting version IP 3-pin XLR (F) mounting version IP
Cooling:	4 x temperature-controlled fan at the Head 2 x temperature-controlled fan at the base
Control:	Stand-alone; master/slave function; DMX; RDM; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); CRMX by LumenRadio upgradeable; W-DMX by wireless solution via USB (optional)
Projection:	Flicker-free
Beam angle:	10° - 47°
Beam angle (1/2 peak):	10 - 47°
Beam angle (1/10 peak):	10 - 47°
Color rendering index (CRI):	85 Ra via filter
Illuminance in Lux (lx):	Narrow cold white (CW) 3m: 69565 lx, 6m: 19180 lx Wide cold white (CW) 1m: 27924 lx, 3m: 3489 lx, 6m: 1000 lx
Housing color:	Black
Attachment system:	2x omega bracket
Display type:	Multicolor LCD display battery buffering upgradeable
Dimensions:	Width: 44,2 cm Depth: 30,1 cm Height: 75,3 cm
Weight:	37,15 kg
Noise classification:	Class 1 (very slight noise, suitable for noise-sensitive environments)
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting

Packaging units

PU	EAN	Weight	Dimensions
1	4026397726534	41,00 kg	86cm x 54cm x 42cm

Accessories

Loading accessories. Please wait...

Support

Spare parts

Fan 12V/0,16A 60x60x15mm Sunon (ME60151V1-000C-G99)

Fan 12V/1,25A 80x80x25mm (EF80251B1-1000C-G99)

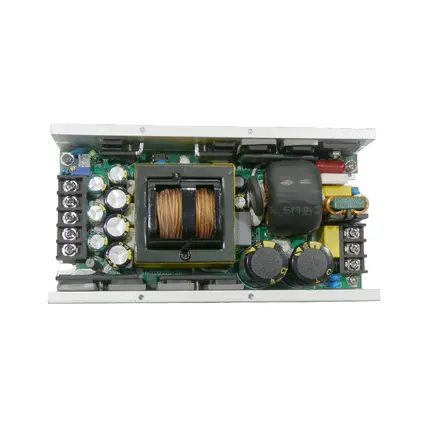

Pcb (Power supply) DMH-640 (VUP1000F42D32B-B)

More 15 spare parts
