Futurelight DMH-300

Powerful LED moving head with CMY color mixing

The DMH-300 is Futurelight's newest and largest LED spotlight to date. In the heart, it carries a particularly bright 270 watts LED. The very special: Color mixing is done via a CMY module.

Color mixing with three color wheels

The LED used is cold white. You bring colors into play with the CMY module: This consists of three large color wheels, each of which steplessly displays one of the three primary colors cyan (turquoise), magenta (pink) and yellow. Each of these three colors can be added to the color mixture in any intensity. In this way you create completely different colors than with RGB-based color mixing. At the same time, you are not bound to the given, limited colours of a conventional color wheel. Intense shades such as blue or dark red can be produced in particular.

Extensive equipment

In addition, the device offers a fourth stepless color wheel with a CTO filter, i.e. a color correction from cold white to warm white. A conventional color wheel, which can be used, for example, to produce two half-colors, is also on board. The extensive equipment of the moving head also includes 2 gobo wheels with easily exchangeable gobos, prism, iris, frost filter and a huge zoom range.

Professional device for stages

With the DMH-300, you get an extraordinary moving head that is particularly suitable for show and theatre stages in professional environments. Thanks to its zoom, you can use it as a beam spotlight just as well as for large-screen projections. And thanks to its LED, the DMH-300 also dims much cleaner than the shutter dimmings of other devices of this size.

Features

PRO beam/wash moving head with 270 W COB LED, large zoom and CMY color mixing

The scenes can be modified via the Control Board or via an external controller and loaded into the memory
Number of scenes can be changed individually
1 powerful LED 270 W COB (chip-on-board) cold white (CW)
Positioning within 540° PAN, 265° TILT
PAN angle switchable between 540° and 630°
Auto position correction (feedback)
Exact positioning (16 bit resolution)
Gobo wheel with rotating gobos; gobo wheel with static gobos; prism 3-fold rotating; zoom motor driven; focus motor-driven; frost filter stepless; iris; iris stepless
Gobo effect; beam effect; strobe effect

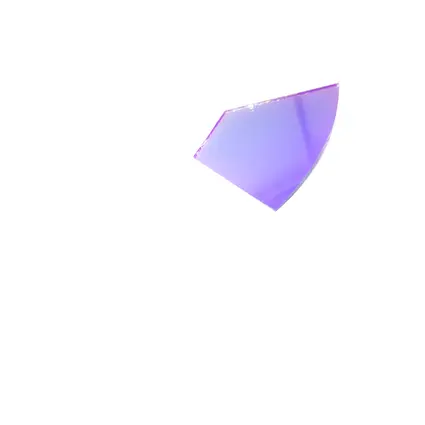

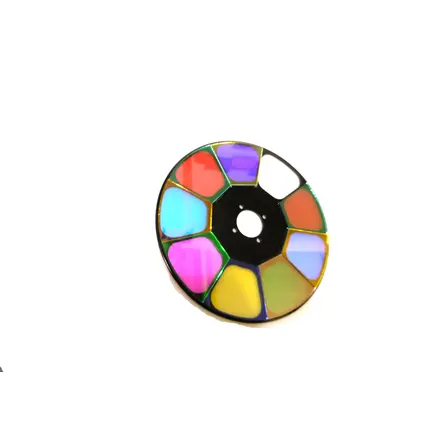

Color wheel with 8 dichroic filters plus open
half colors selectable, Rainbow effect with adjustable speed in both directions

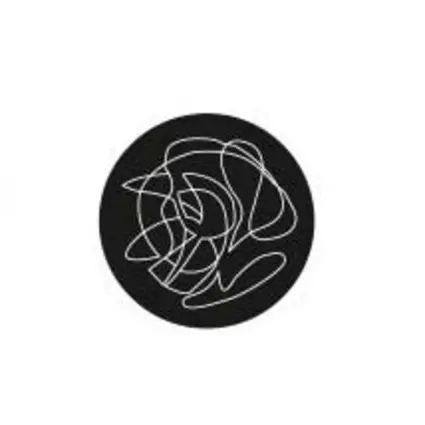

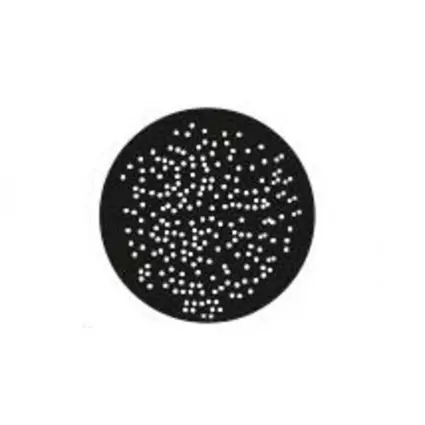

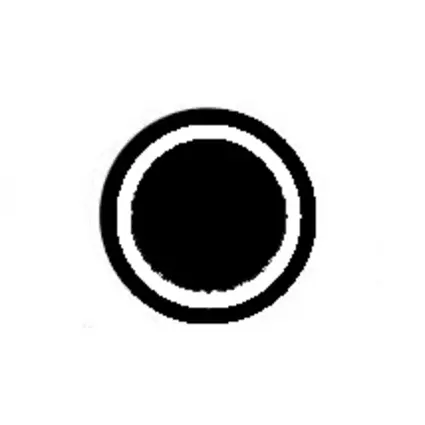

Gobo wheel with static gobos, 7 gobos and open
shake effect
Gobo wheel with rotating gobos, 7 gobos and open
shake effect

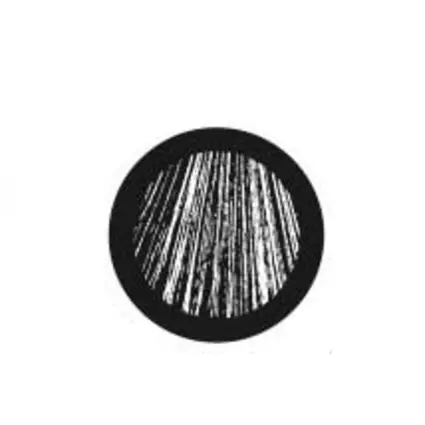

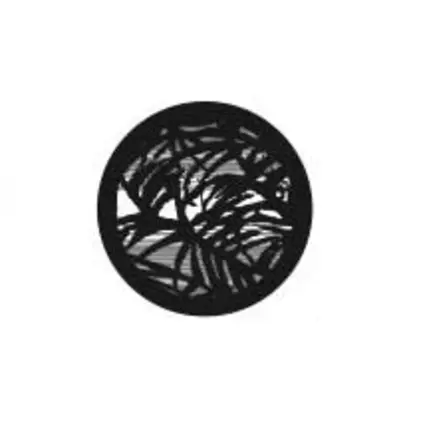

Gobos changeable
Slot-in gobo system for easy gobo replacement
The device is cooled by temperature-controlled fan
Control via stand-alone; DMX; RDM; sound to light via microphone
Flicker-free
With a beam angle of 8° - 44°
LCD display
Dimmer electronic; pulse-width modulation adjustable
CMY+CTO color mixing for indefinite color variations
Preprogrammed in Light Captain
For application areas such as: Wedding/gala/events; stage; theater; rental
Application possibility: Standing; suspended

Package contents

1 x moving light, 1 x user manual, 1 x power cord, 1 x declaration of conformity, 1 x XLR cable, 1 x plate

Technical specifications

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	340 W
IP classification:	IP20
Power connection:	Mains input via PowerCON (blue), mounting version power supply cord with safety plug (provided)
Lamp type:	LED lamp
LED type:	1 x 270 W COB (chip-on-board) cold white (CW)
Max. TILT movement:	265° exact positioning (16 bit resolution) auto position correction (feedback)
Max. PAN movement:	540°, 630° exact positioning (16 bit resolution) auto position correction (feedback)
Equipment:	Gobo wheel with rotating gobos; gobo wheel with static gobos; prism 3-fold rotating; zoom motor driven; focus motor-driven; frost filter stepless; iris; iris stepless
Color generation:	CMY+CTO color mixing for indefinite color variations
Color generation:	Color wheel with 8 dichroic filters plus open Half colors selectable, Rainbow effect with adjustable speed in both directions
Gobos:	Gobo wheel with static gobos, 7 gobos and open Shake effect Gobo wheel with rotating gobos, 7 gobos and open Outside diameter 27mm Image diameter 22mm Shake effect Gobos changeable Slot-in gobo system for easy gobo replacement
DMX channels:	19; 21; 28; 29
DMX input:	1 x 3-pin XLR (M) mounting version 1 x 5-pin XLR (M) mounting version
DMX output:	1 x 3-pin XLR (F) mounting version 1 x 5-pin XLR (F) mounting version
Cooling:	Temperature-controlled fan
Control:	Stand-alone; DMX; RDM; sound to light via microphone
Preprogrammed in:	Light Captain
Projection:	Flicker-free
Beam angle:	8° - 44°
Beam angle (1/2 peak):	8 - 44°
Beam angle (1/10 peak):	8 - 44°
Illuminance in Lux (lx):	Narrow cold white (CW) 3m: 58069 lx, 6m: 12229 lx Wide cold white (CW) 3m: 2745 lx, 6m: 736 lx
Housing color:	Black

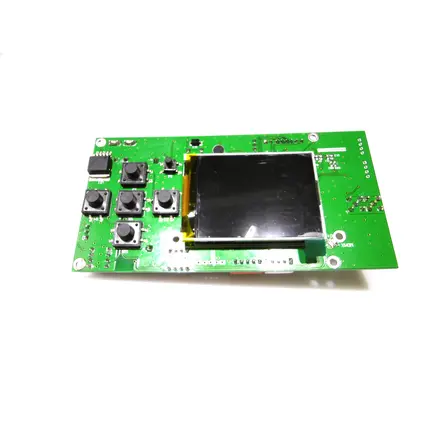

Display type:	LCD display
Dimensions:	Width: 44,5 cm Depth: 36,9 cm Height: 53,4 cm
Weight:	25,10 kg
Noise classification:	Class 2 (slight noise)
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting

Packaging units

PU	EAN	Weight	Dimensions
1	4026397637366	28,50 kg	83cm x 48cm x 35cm

Accessories

Loading accessories. Please wait...

Support

Spare parts

FUTURELIGHT MP-8 Mounting Plate

timing belt 633-3M-7.5mm PLB-280 (Tilt)

FUTURELIGHT ULB-2 USB Upload Box

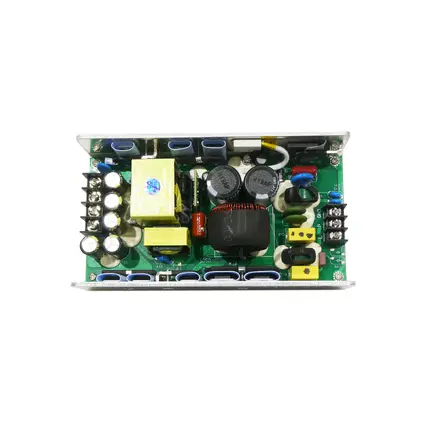

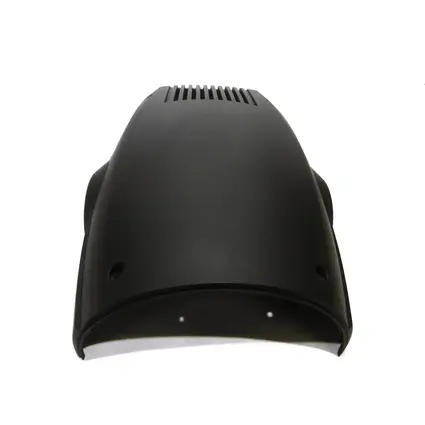

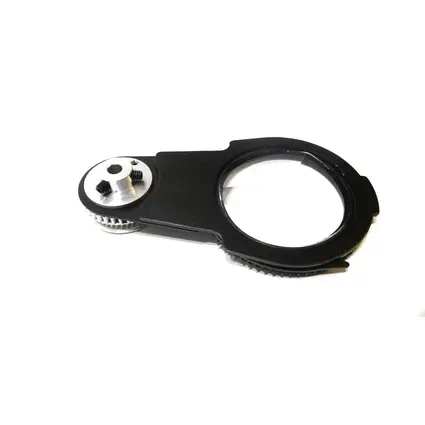

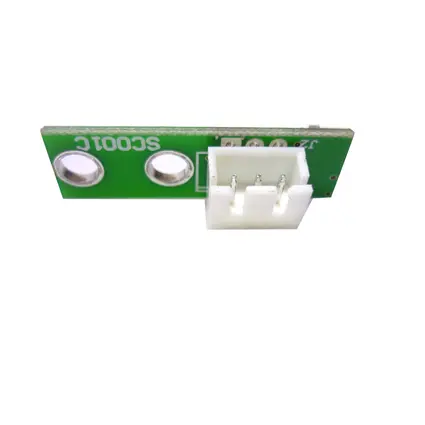

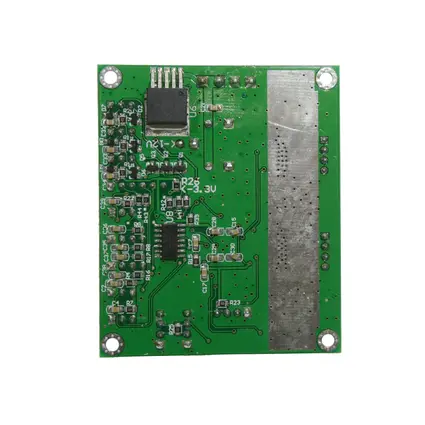

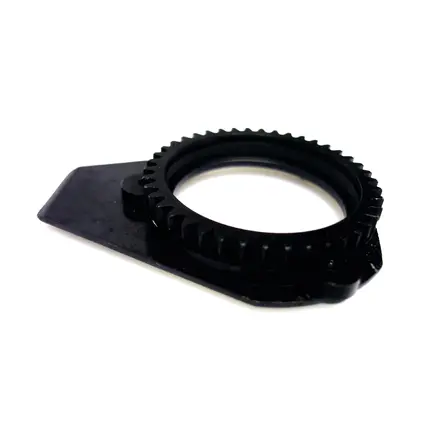

More 46 spare parts
