Technical specifications

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	270 W
IP classification:	IP20
Power connection:	Mains input via PowerCON (blue), mounting version power supply cord with safety plug (provided)
Power output:	1 x PowerCON (gray), mounting version
Lamp type:	LED lamp
LED type:	1 x 200 W COB (chip-on-board) cold white (CW)
Max. TILT movement:	265° exact positioning (16 bit resolution) auto position correction (feedback)
Max. PAN movement:	540°, 630° exact positioning (16 bit resolution) auto position correction (feedback)
Equipment:	Gobo wheel with rotating gobos; gobo wheel with static gobos; prism 3-fold; iris; focus motor-driven; zoom motor driven; frost filter
Color generation:	Color wheel with 8 dichroic filters plus open Rainbow effect with adjustable speed in both directions
Gobos:	Gobo wheel with static gobos, 7 gobos and open Gobo wheel with rotating gobos, 7 gobos and open Outside diameter 27mm Image diameter 22mm Shake effect Gobos changeable Slot-in gobo system for easy gobo replacement
DMX channels:	15; 17; 24; 25
DMX input:	1 x 3-pin XLR (M) mounting version 1 x 5-pin XLR (M) mounting version
DMX output:	1 x 3-pin XLR (F) mounting version 1 x 5-pin XLR (F) mounting version
Cooling:	Temperature-controlled fan
Control:	Stand-alone; DMX; RDM; W-DMX by wireless solution upgradeable; sound to light via microphone
Fixtures available for:	LED PC-Control 512; Light Captain; Light´J
Projection:	Flicker-free
Beam angle:	7.5° - 40°
Beam angle (1/2 peak):	7.5 - 40°
Beam angle (1/10 peak):	7.5 - 40°
Housing color:	Black
Dimensions:	Width: 40.2 cm Depth: 25 cm Height: 53.4 cm
Weight:	21.55 kg
Noise classification:	Class 2 (slight noise)
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting

Packaging units

PU	EAN	Weight	Dimensions
1	4026397604214	24,35 kg	71cm x 44,5cm x 35cm

Spare parts

FUTURELIGHT ULB-2 USB Upload Box

PCB (Light Sensor) DMH-90 (OP001B-HJ01)

PCB (DMX) 3-Pol/5-Pol In/Out (CON0020)

FUTURELIGHT Fan 12V/0,15A 60x60x15mm (DFH6015S) Sleeve

Handle DMH-90/DMB-60 sw

timing belt 633-3M-7.5mm PLB-280 (Tilt)

FUTURELIGHT Detection wheel DMB-150 (Ø40mm) tooth wh

NEUTRIK XLR Mounting Socket 3-pin NC3FDL-1-BAG

FUTURELIGHT Magnet (Resetposition) big 5mm

Fan 12V/0,16A 60x60x15mm Sunon (ME60151V1-000C-G99)

PCB (Magnet Sensor) DMH-200 (SC001C)

FUTURELIGHT timing belt 420-3M-6.5mm PHS-150 (TILT)

Switch (on/off) 2-pin mini-4B 230V/5A

Cover (Head Cover) DMH-300 bl

Cover DMH-200 (Head /front) sw

Gobo holder (rotating gobo) Ø=27mm DMH-90/100/150

Clamp ring (lens) Ø=27mm B-40

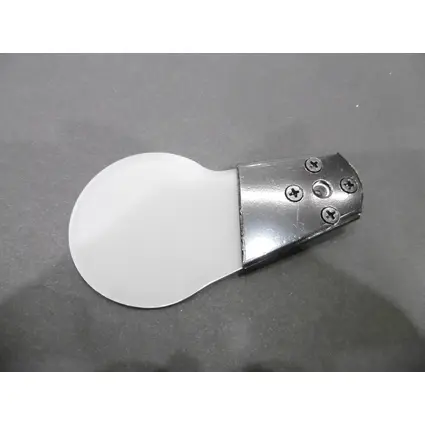

Frost filter DMH-200 LED

Downloads

Spezifications

Name	Version	Language
Spezifications as PDF
Product badge
Specifications as PDF neutral
Product badge neutral

Support

Name	Version	Language
51841975-Support-108533-1.0000-51841975-LED-PC-Control-fixtures-de.zip (12 KB)	1.0000	de
51841975-Support-125597-fuer-grandMA2-Dot2-de.zip (14 KB)	0.0000	de

Software

Name	Version	Language
51841975-SW-112425-Firmware-V1000-de.rar (92 KB)	0.0000	de
51841975-SW-113789-Firmware-V1200-de.rar (93 KB)	0.0000	de

All images

Name	Version	Language
51841975-Images-.zip

Publications

Move Magazine #1/2023 E

On page: 26

Size: 42 MB

Move Magazine #2/2021 E

On page: 20

Size: 56 MB

Video link

https://www.youtube-nocookie.com/embed/yFj120UB74Q

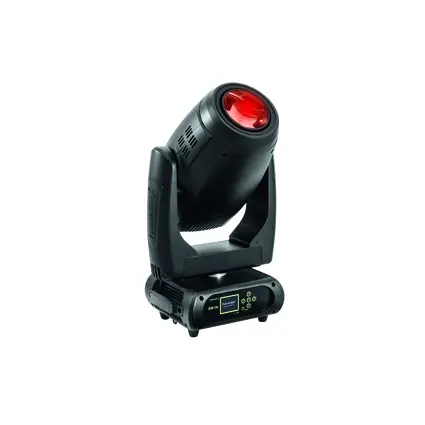

FUTURELIGHT DMH-200 LED Moving Head

PRO beam/wash moving head with 200 W COB LED and large zoom-MainBild

PRO beam/wash moving head with 200 W COB LED and large zoom-Bild-1

FUTURELIGHT DMH-200 LED Moving Head

The article is no longer in our assortment.

No. 51841975

7.5 - 40°

PRO beam/wash moving head with 200 W COB LED and large zoom

Effect wheel with rotating 3-facet prism
Exact positioning via 16 bit PAN/TILT movement resolution
Steplessly adjustable iris
Stepless frost-filter
Electronic dimmer (0-100%)
Strobe effect with adjustable speed
Random strobe effect
Automatic position correction
PAN angle switchable between 540° and 630°
The scenes can be modified via the Control Board or via an external controller and loaded into the memory
Number of scenes can be changed individually
Software upload by optional accessories via DMX link
1 LED 200 W COB (chip-on-board) cold white (CW)
PAN angle switchable between 540° and 630°
Auto position correction (feedback)
Exact positioning (16 bit resolution)
Gobo wheel with rotating gobos; gobo wheel with static gobos; prism 3-fold; iris; focus motor-driven; zoom motor driven; frost filter
Gobo effect; beam effect
Color wheel with 8 dichroic filters plus open
rainbow effect with adjustable speed in both directions
Gobo wheel with static gobos, 7 gobos and open
Gobo wheel with rotating gobos, 7 gobos and open
shake effect
Gobos changeable
Slot-in gobo system for easy gobo replacement
The device is cooled by temperature-controlled fan
Control via stand-alone; DMX; RDM; W-DMX by wireless solution upgradeable; sound to light via microphone
Fixtures available for LED PC-Control 512; Light Captain; Light´J
Flicker-free
With a beam angle of 7.5° - 40°
