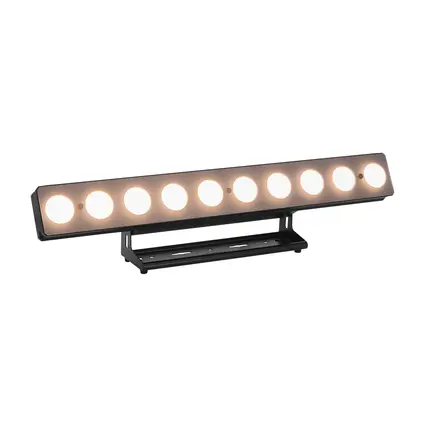

High performance LED bar with 17 W white light LEDs and dim-to-warm function
FUTURELIGHT Stage Pixel Bar 10 WW

High performance LED bar with 17 W white light LEDs and dim-to-warm function-MainBild

High performance LED bar with 17 W white light LEDs and dim-to-warm function-Bild-1

20°

High performance LED bar with 17 W white light LEDs and dim-to-warm function

FUTURELIGHT Stage Pixel Bar 10 WW

The article is no longer in our assortment.

Item no. 51841357

Print product

Product badge

Here you find the manual and downloads for
FUTURELIGHT Stage Pixel Bar 10 WW

Stage Pixel Bar 10

Perfect white and the dimming behavior of a halogen lamp

This bar offers much more than "just" white light and can be used in many different ways: The dimming behavior of the built-in LEDs is modeled on that of a halogen lamp. As the brightness decreases, the white light becomes warmer. At full brightness, the light has a color temperature of 3000 Kelvin. When the bar is dimmed down, it changes its light to the golden hue known from a dimmed halogen lamp.

FUTURELIGHT Stage Pixel Bar 10 front-view

Flexible application

The bar convinces with its high light output. Use it as a blinder - or place the bar directly in the field of vision of your audience: thanks to individually controllable LEDs, you can create interesting chaser effects.
The bar's color rendering index (CRI) of over 90 is very high, which means that the colors of the illuminated objects appear very lifelike. This is why the Stage Pixel Bar 10 WW is also suitable as a ramp or front light for illuminating the actors in theaters. And because it works without a fan, it can perfectly be used in sound-sensitive environments.

Professional equipment

The beam angle of the LEDs is 20 degrees and can be significantly widened by using the quickly attachable frost filter. Power is supplied via Neutrik Powercon, the voltage can be looped through via the current output. The Stage Pixel Bar 10 WW is controlled via DMX or ArtNet. The DMX connectors, also from Neutrik, are three-pole and five-pole.
Thanks to its large bracket, the bar can be installed standing or hanging. With the Stage Pixel Bar 10 WW, you get an absolutely professional spotlight for high demands.

FUTURELIGHT Stage Pixel Bar 10 frost filter

FUTURELIGHT Stage Pixel Bar 10 frost filter effect image

Features

High performance LED bar with 17 W white light LEDs and dim-to-warm function

Additional frost filter provides a wide, soft and homogeneous light
New LED technology that simulates the color temperature curve of a halogen lamp when dimming
10 powerful LEDs 17 W COB (chip-on-board) Dim to warm (homogenous color mix)
LEDs controlled separately
Dimmer curves with adjustable response
Integrated show programs
The device is cooled by passive convection cooling
Control via RDM; ArtNet; stand-alone; DMX; sound to light via microphone
Flicker-free
With a beam angle of 20°
Very high color rendering index (CRI)
With mounting bracket
Built with NEUTRIK connector
For application areas such as: Clubs/dancing school; stage
Strobe effect
Preprogrammed in LED PC-Control 512; Light Captain; Light´J
Silent operation
Mains input and output for power linking up to 8 units

Technical specifications

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	185 W
IP classification:	IP20
Power connection:	Mains input via PowerCON (blue), mounting version power supply cord with safety plug (provided)
Power output:	1 x PowerCON (gray), mounting version
Lamp type:	LED lamp
LED type:	10 x 17 W COB (chip-on-board) Dim to warm (homogenous color mix)
Flash rate:	0 - 18 Hz
DMX channels:	2; 10; 12
DMX input:	1 x 3-pin XLR (M) mounting version
DMX output:	1 x 3-pin XLR (F) mounting version
Network connection:	Protocol: ArtNet 3 via 2x RJ-45 etherCON (F) mounting version
Cooling:	Passive convection cooling
Control:	RDM; ArtNet; stand-alone; DMX; sound to light via microphone
Preprogrammed in:	LED PC-Control 512; Light Captain; Light´J
Projection:	Flicker-free
Beam angle:	20°
Beam angle (1/2 peak):	20°
Color temperature:	3000K
Color rendering index (CRI):	91 Ra
Housing color:	Black
Attachment system:	Mounting bracket
Use of brands:	Built with NEUTRIK connector
Dimensions:	Length: 87,5 cm Depth: 14 cm Height: 18 cm
Weight:	9,45 kg
Noise classification:	Class 0 (no noise at all)
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting

Packaging units

PU	EAN	Weight	Dimensions
1	4026397630886	11,50 kg	97cm x 25cm x 27cm
