Technical specifications

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	530 W
Power connection:	Mains input via PowerCON (blue), mounting version power supply cord with safety plug (provided)
Lamp type:	LED lamp
LED type:	37 x 10 W high-power 4in1 RGBW (homogenous color mix)
Max. TILT movement:	265° exact positioning (16 bit resolution) auto position correction (feedback)
Max. PAN movement:	540°, 630° exact positioning (16 bit resolution) auto position correction (feedback)
Flash rate:	0 - 30 Hz
Equipment:	Zoom motor driven
DMX channels:	18; 19; 20; 41; 170
DMX input:	1 x 5-pin XLR (M) mounting version
DMX output:	1 x 5-pin XLR (F) mounting version
Network connection:	Protocol: Art-Net 3 via 2x RJ-45 (F) mounting version
Cooling:	Temperature-controlled fan
Control:	RDM; DMX; Art-Net; stand-alone; sound to light via microphone; master/slave function; W-DMX by wireless solution upgradeable
Fixtures available for:	Light´J; LED PC-Control 512; Light Captain
Projection:	Flicker-free
Beam angle:	2° - 50°
Beam angle (1/2 peak):	2 - 28°
Beam angle (1/10 peak):	8 - 50°
Illuminance in Lux (lx):	Narrow red (R) 3m: 5874 lx, 6m: 1655 lx Wide red (R) 3m: 564 lx, 6m: 146 lx Narrow green (G) 3m: 11065 lx, 6m: 3219 lx Wide green (G) 3m: 1160 lx, 6m: 305 lx Narrow blue (B) 3m: 1666 lx, 6m: 563 lx Wide blue (B) 3m: 202 lx, 6m: 54 lx Narrow cold white (CW) 3m: 15461 lx, 6m: 4527 lx Wide cold white (CW) 3m: 1545 lx, 6m: 408 lx Narrow all 3m: 31814 lx, 6m: 9366 lx Wide all 3m: 3266 lx, 6m: 859 lx
Housing color:	Black
Dimensions:	Width: 44.4 cm Depth: 25 cm Height: 57 cm
Weight:	19.00 kg
Noise classification:	Class 2 (slight noise)

Packaging units

PU	EAN	Weight	Dimensions
1	4026397629507	22,25 kg	71cm x 50,5cm x 34cm

Spare parts

FUTURELIGHT Fan 12V/0,15A 60x60x15mm (DFH6015S) Sleeve

PCB (Light Sensor) DMH-90 (OP001B-HJ01)

FUTURELIGHT Fan 12V/0,40A 120x120x25mm (DFH1225S)

timing belt 597-3M-7.5mm EYE-37 RGBW ZOOM (Pan)

timing belt 468-3M-7.5mm EYE-37 RGBW ZOOM (Tilt)

PCB (P/T) EYE-37 RGBW ZOOM (PT0004D) U2 (M1,M2)

PCB (Display) EYE-37 RGBW ZOOM (DISP011D)

Pcb (LED) EYE-37 RGBW ZOOM (LED018B) V1.0

Downloads

Spezifications

Name	Version	Language
Spezifications as PDF
Product badge
Specifications as PDF neutral
Product badge neutral

Support

Name	Version	Language
51841314-Support-114854-1.0000-51841314-LED-PC-Control-fixtures-de.zip (11 KB)	1.0000	de
51841314-Support-125603-fuer-grandMA2-Dot2-de.zip (17 KB)	0.0000	de
51841314-Support-128959-1.0000-51841314-LED-PC-Control-Fixture-en.zip (6 KB)	1.0000	en

Software

Name	Version	Language
51841314-SW-125168-Firmware-V20-de.rar (86 KB)	0.0000	de

All images

Name	Version	Language
51841314-Images-.zip

Publications

Move Magazine #2/2022 E

On page: 18

Size: 28 MB

Video link

https://www.youtube-nocookie.com/embed/cir1m7J3o0Y

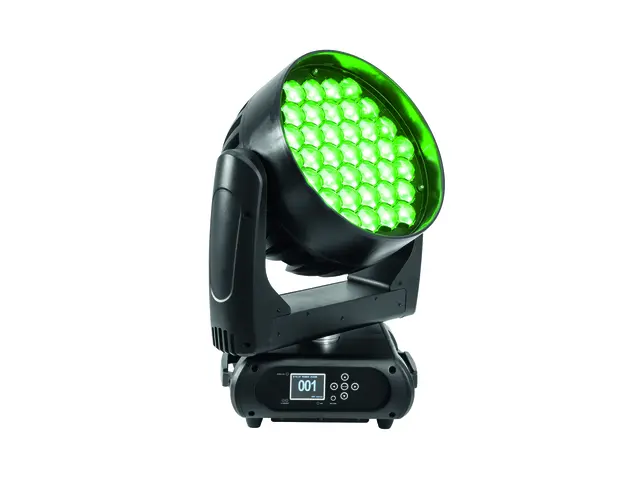

FUTURELIGHT EYE-37 RGBW Zoom LED Moving Head Wash

PRO washlight with RGBW color mixing, very large zoom range and Art-Net-MainBild

PRO washlight with RGBW color mixing, very large zoom range and Art-Net-Bild-1

FUTURELIGHT EYE-37 RGBW Zoom LED Moving Head Wash

The article is no longer in our assortment.

Check out the alternatives:

Washlight with 37 bright 15 W RGBW LEDs, zoom, macros, patterns and color temperature setting

EUROLITE LED TMH-W555 Moving Head Wash Zoom

alternative with less features, lower quality

No. 51785920

Stock for approx. 12 wk(s)

949,00 €

No. 51841314

2 - 50°°

PRO washlight with RGBW color mixing, very large zoom range and Art-Net

The scenes can be modified via the Control Board or via an external controller and loaded into the memory
Number of scenes can be changed individually
37 LEDs 10 W high-power 4in1 RGBW (homogenous color mix)
LEDs controlled separately
Positioning within 540° PAN, 265° TILT
PAN angle switchable between 540° and 630°
Auto position correction (feedback)
Exact positioning (16 bit resolution)
Zoom motor driven
Dimmer electronic; color blend stepless; colors preset
Strobe effect
Integrated show programs
Can be operated in 18; 19; 20; 41; 170 CH mode
The device is cooled by temperature-controlled fan
Control via RDM; DMX; Art-Net; stand-alone; sound to light via microphone; master/slave function; W-DMX by wireless solution upgradeable
Flicker-free
With a beam angle of 2° - 50°
Mains input and output for power linking up to 8 units
