Weather-proof beam moving head (IP65) with 420 W discharge lamp & CRMX wireless receiver
FUTURELIGHT IP PLB-420 Moving Head Beam

Weather-proof beam moving head (IP65) with 420 W discharge lamp & CRMX wireless receiver-MainBild

Weather-proof beam moving head (IP65) with 420 W discharge lamp & CRMX wireless receiver-Bild-1

1°

Weather-proof beam moving head (IP65) with 420 W discharge lamp & CRMX wireless receiver

FUTURELIGHT IP PLB-420 Moving Head Beam

Stock for approx. 4 wk(s)

Priceon demand

Find a dealer

Due to the dimensions of this article, different shipping conditions apply.

List price excl. 19% VAT
Prices in retail stores may vary.

Item no. 51838830

Print product

Product badge

Here you find the manual and downloads for
FUTURELIGHT IP PLB-420 Moving Head Beam

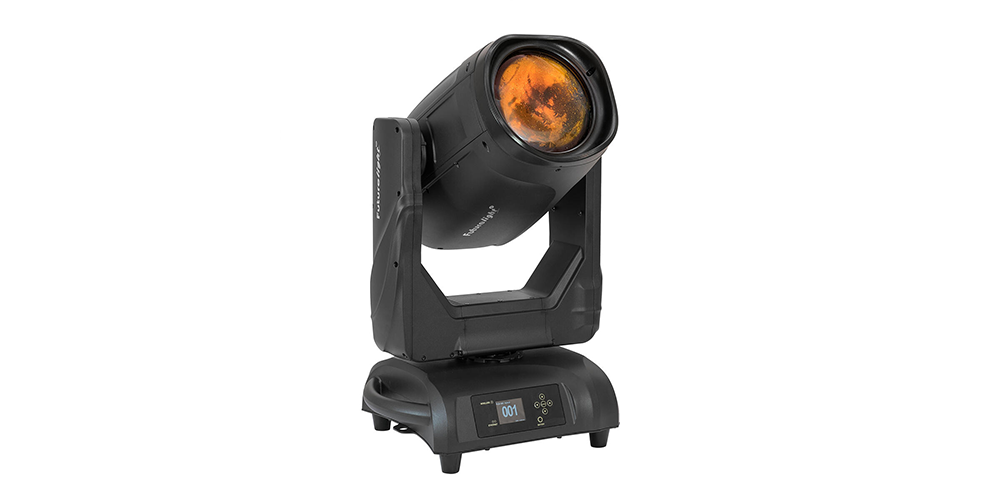

FUTURLIGHT IP PLB-420

Weatherproof Moving Head

The PLB-420 is a weatherproof beam moving head that provides high light output and allows very narrow beams. Thanks to IP65 class protection, it can even stand in the rain without any problems.

Narrow and powerful beam

With its 420 watt discharge lamp, the moving head creates a powerful beam with an extremely narrow beam angle of only 1°.

Equipment

The Moving-Head is equipped with 14 fixed gobos and has two rotating prisms. Besides the "normal" 8-fold prism, the spotlight also offers a very interesting honeycomb prism on board, which creates an interesting effect visually. There is also the option to soften the light using a frost filter. The color wheel offers 13 colors and can create a continuous rainbow effect.

Features

Weather-proof beam moving head (IP65) with 420 W discharge lamp & CRMX wireless receiver

Light source: USHIO NSL 420S discharge lamp (2000 hrs)
Lamp installed and adjusted ex factory
Positioning within 540° PAN, 265° TILT
Auto position correction (feedback)
Exact positioning (16 bit resolution)
Prism honeycomb rotating; prism 8-fold rotating; focus motor-driven; gobo wheel with static gobos; color wheel
Color wheel with 13 dichroic filters plus open
half colors selectable, Rainbow effect with adjustable speed in both directions
Gobo wheel with static gobos, 14 gobos und open
shake effect
Integrated show programs
The device is cooled by temperature-controlled fan
Control via stand-alone; master/slave function; DMX; RDM; CRMX by LumenRadio; ArtNet; sACN; sound to light via microphone
With a beam angle of 1°
With bracket with hinged hooks
Multicolor LCD display,
with battery buffering for easy controlling
Suitable for outdoor use
Scenes user-definable; pulse effect adjustable
Strobe effect
Preprogrammed in Light Captain
For application areas such as: Stage; rental
Application possibility: Standing; suspended

Package contents

1 x moving light, 1 x user manual, 1 x XLR cable, 1 x power cord, 2 x holder

Technical specifications

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	420 W
IP classification:	IP65
Protection class:	Protection class I

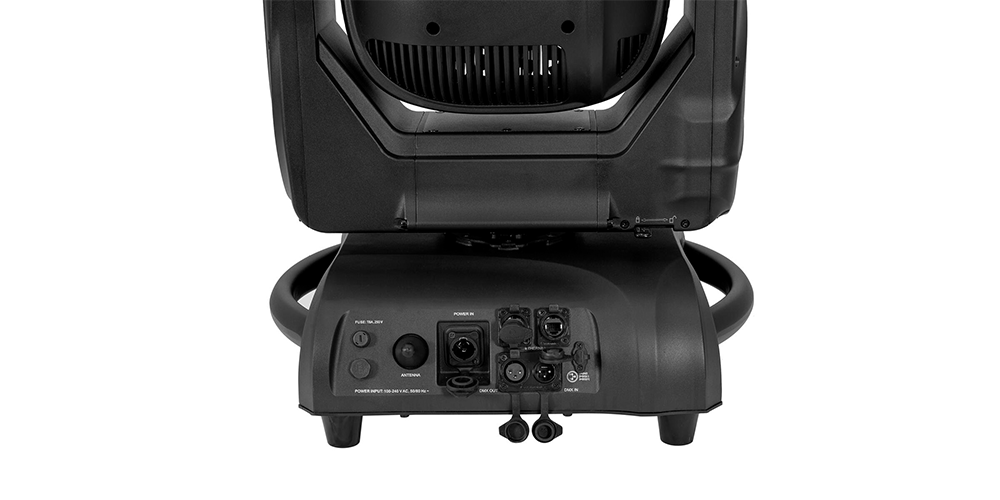

Power connection:	Mains input via IP T-Con (M) power supply cord with safety plug (provided)
Fuse:	5 x 20 mm, T 5 A
Lamp type:	Discharge lamp
Max. TILT movement:	265° exact positioning (16 bit resolution) auto position correction (feedback)
Max. PAN movement:	540° exact positioning (16 bit resolution) auto position correction (feedback)
Equipment:	Prism honeycomb rotating; prism 8-fold rotating; focus motor-driven; gobo wheel with static gobos; color wheel
Color generation:	Color wheel with 13 dichroic filters plus open Half colors selectable, Rainbow effect with adjustable speed in both directions
Gobos:	Gobo wheel with static gobos, 14 gobos und open Shake effect
DMX channels:	18
DMX input:	3-pin XLR (M) mounting version IP
DMX output:	3-pin XLR (F) mounting version IP
Cooling:	Temperature-controlled fan
Control:	Stand-alone; master/slave function; DMX; RDM; CRMX by LumenRadio; ArtNet; sACN; sound to light via microphone
Preprogrammed in:	Light Captain
Carrier frequency:	2,4 GHz
Beam angle:	1°
Beam angle (1/2 peak):	1°
Housing color:	Black
Attachment system:	2x bracket with hinged hooks
Display type:	Multicolor LCD display battery buffering
Connections:	2 x RJ-45 (F) mounting version
Dimensions:	Width: 45 cm Depth: 35 cm Height: 76 cm
Weight:	39,70 kg
Noise classification:	Class 4 (loud noises)
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting

Packaging units

PU	EAN	Weight	Dimensions
1	4026397704969	45,05 kg	86cm x 55,5cm x 47cm

Accessories

Loading accessories. Please wait...

Support

Spare parts

Pcb (Power supply) IP PLH-420 (RUP600F380/28B-BC)

Pcb (Display) IP PLB-420 (DISP048B-A)

Pcb (PAN/TILT) IP PLB-420 (PT008A-A)

More 8 spare parts

Downloads

Loading the documents. Please wait...

Manufacturer information

Steinigke Showtechnic GmbH
Andreas-Bauer-Str. 5
D-97297 Waldbüttelbrunn

+49 931 4061 600
info@steinigke.de
www.steinigke.de/support

Safety instructions and warnings

Specific safety instructions that apply to the product can be found in the operating instructions for the product.
