Weather-proof beam/spot moving head (IP65) with 420 W discharge lamp & CRMX wireless receiver
FUTURELIGHT IP PLH-420 Moving Head Spot/Beam

Weather-proof beam/spot moving head (IP65) with 420 W discharge lamp & CRMX wireless receiver-MainBild

Weather-proof beam/spot moving head (IP65) with 420 W discharge lamp & CRMX wireless receiver-Bild-1

1 - 25°

Weather-proof beam/spot moving head (IP65) with 420 W discharge lamp & CRMX wireless receiver

FUTURELIGHT IP PLH-420 Moving Head Spot/Beam

Stock for approx. 12 wk(s)

Priceon demand

Find a dealer

Due to the dimensions of this article, different shipping conditions apply.

List price excl. 19% VAT
Prices in retail stores may vary.

Item no. 51838800

Print product

Product badge

Here you find the manual and downloads for
FUTURELIGHT IP PLH-420 Moving Head Spot/Beam

FUTURELIGHT IP PLH-420

Weatherproof Moving Head

The PLH-420 is a weatherproof moving head that combines spot, beam and wash. The hybrid PLH-420 offers high light output in combination with a very versatile range of functions. Thanks to IP65 class protection, it can even stand in the rain without any problems.

Beam and spot function

Thanks to its zoom optics, the moving head generates beam angles between 1° and 14° in beam mode and between 4° and 25° in spot mode. In beam mode, its 420 watt discharge lamp creates a targeted hotspot for a powerful light output, while in spot mode, it creates an extremely homogeneous image for consistent projections.

Equipment

The moving head is equipped with 9 rotating, interchangeable gobos as well as 14 fixed gobos and has two rotating prisms. The first prism produces 8 circular images, while the second produces 6 linear images. A frost filter softens the light to create a washlight effect; this feature can also be resized with the zoom. There are also 14 different colors on a color wheel.

Features

Weather-proof beam/spot moving head (IP65) with 420 W discharge lamp & CRMX wireless receiver

Light source: USHIO NSL 421 discharge lamp (2000 hrs)
Bidirectional rotating 6-fold linear prism and 8-facet prism with variable speed, combinable for multi-facet effects
Lamp installed and adjusted ex factory
Positioning within 540° PAN, 265° TILT
Auto position correction (feedback)
Exact positioning (16 bit resolution)
Color wheel with 13 dichroic filters plus open
half colors selectable, Rainbow effect with adjustable speed in both directions
Gobo wheel with rotating gobos, 9 gobos and open
shake effect
Gobo wheel with static gobos, 13 gobos und open
shake effect
Integrated show programs
The device is cooled by temperature-controlled fan
Prism 8-fold; prism 6-fold linear; frost filter stepless; zoom motor driven; focus motor-driven
With a beam angle of 1° - 25°
With bracket with hinged hooks
Multicolor LCD display,
with battery buffering for easy controlling upgradeable
Suitable for outdoor use
Scenes user-definable
Strobe effect
Control via stand-alone; master/slave function; DMX; RDM; CRMX by LumenRadio; ArtNet; sACN; sound to light via microphone
Preprogrammed in Light Captain
For application areas such as: Stage; Rental
Application possibility: Standing; suspended

Package contents

1 x moving light, 1 x user manual, 1 x XLR cable, 1 x power cord, 2 x holder

Technical specifications

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	420 W
IP classification:	IP65
Protection class:	Protection class I
Power connection:	Mains input via IP T-Con (M) power supply cord with safety plug (provided)
Fuse:	5 x 20 mm, T 5 A
Lamp type:	Discharge lamp
Max. TILT movement:	265° Exact positioning (16 bit resolution) auto position correction (feedback)
Max. PAN movement:	540° Exact positioning (16 bit resolution) auto position correction (feedback)
Equipment:	Prism 8-fold; prism 6-fold linear; frost filter stepless; zoom motor driven; focus motor-driven
Color generation:	Color wheel with 13 dichroic filters plus open Half colors selectable, Rainbow effect with adjustable speed in both directions
Gobos:	Gobo wheel with rotating gobos, 9 gobos and open Outside diameter 15,9mm Image diameter 12mm Shake effect Gobo wheel with static gobos, 13 gobos und open Shake effect
DMX channels:	23
DMX input:	3-pin XLR (M) mounting version IP
DMX output:	3-pin XLR (F) mounting version IP
Cooling:	Temperature-controlled fan
Control:	Stand-alone; master/slave function; DMX; RDM; CRMX by LumenRadio; ArtNet; sACN; sound to light via microphone
Preprogrammed in:	Light Captain
Carrier frequency:	2,4 GHz
Beam angle:	1° - 25°
Beam angle (1/2 peak):	Beam 1 - 14° Spot 4 - 25°
Beam angle (1/10 peak):	Spot 4 - 25° Beam 1 - 14°
Housing color:	Black
Attachment system:	2x bracket with hinged hooks
Display type:	Multicolor LCD display battery buffering upgradeable
Connections:	2 x RJ-45 (F) mounting version
Dimensions:	Width: 45 cm Depth: 35 cm Height: 76 cm
Weight:	38,90 kg
Noise classification:	Class 4 (loud noises)
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting

Packaging units

PU	EAN	Weight	Dimensions
1	4026397704952	44,25 kg	87cm x 56cm x 47cm

Accessories

Loading accessories. Please wait...

Support

Spare parts

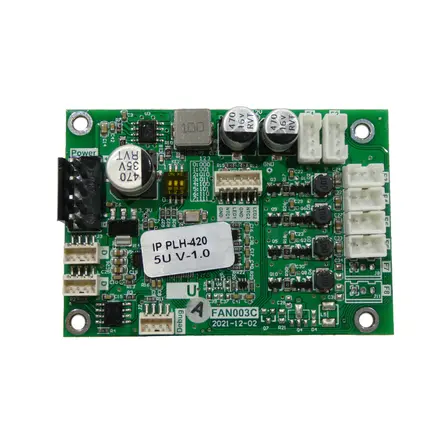

Pcb (Power supply) IP PLH-420 (RUP600F380/28B-BC)

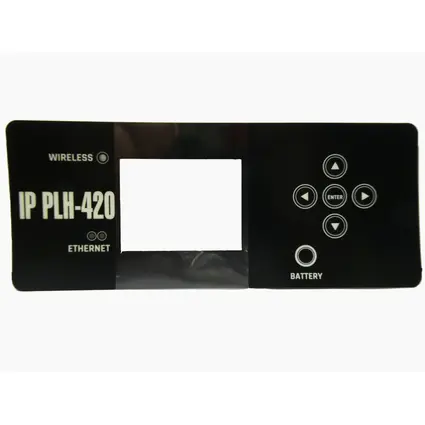

Pcb (Display) IP PLH-420 (DISP048B-A)

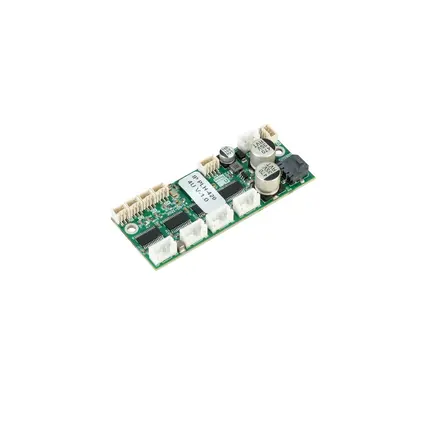

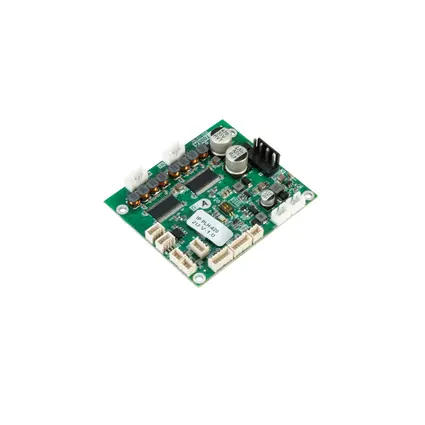

Pcb (Motor driver) IP PLH-420 (MO024C-A)

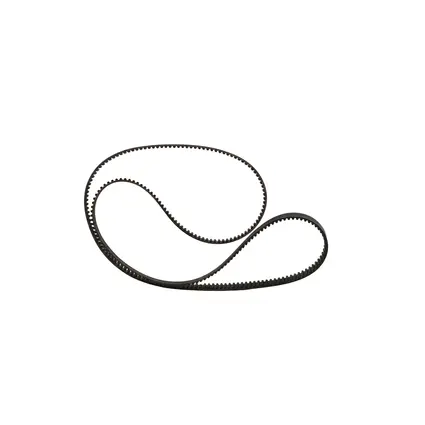

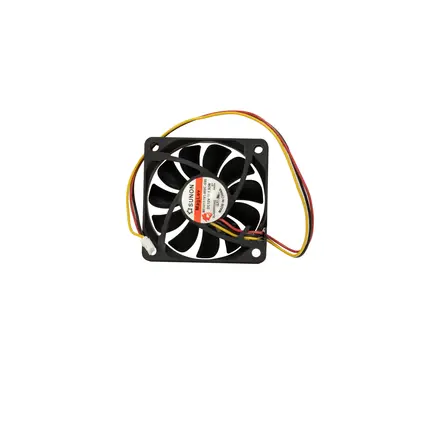

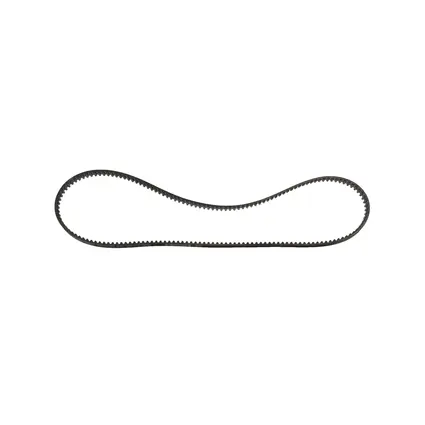

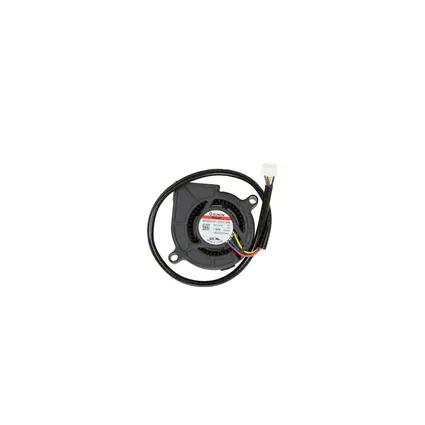

More 10 spare parts
