Versatile moving head Effect with 3.5 W multichip LEDs

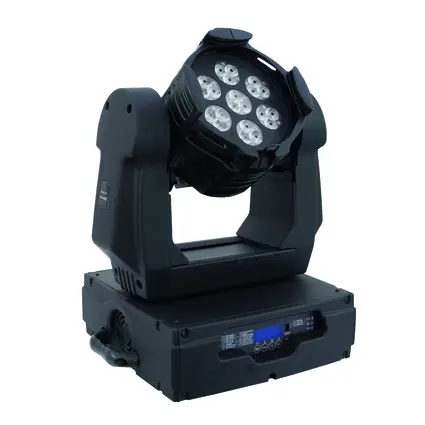

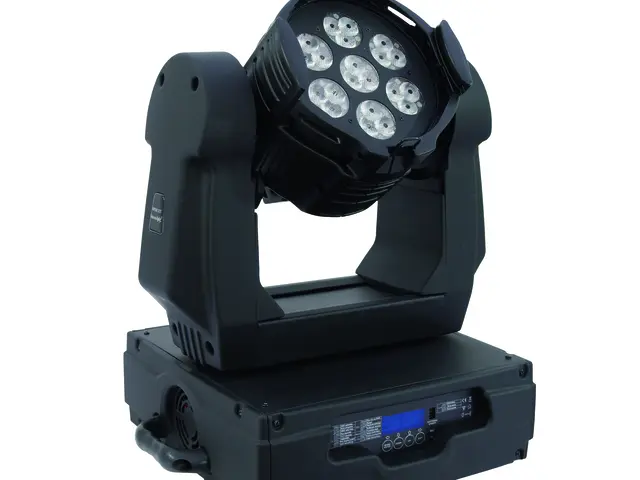

FUTURELIGHT PHP-21 TCL LED Moving-Head

Versatile moving head Effect with 3.5 W multichip LEDs-MainBild

Versatile moving head Effect with 3.5 W multichip LEDs

FUTURELIGHT PHP-21 TCL LED Moving-Head

The article is no longer in our assortment.

No. 51837870

Here you find the manual and downloads for
FUTURELIGHT PHP-21 TCL LED Moving-Head

Three in one!
Even if conventional illuminants are slowly but surely giving way to LEDs, in the Moving-Head arena they are still something of a rarity. For the FUTURELIGHT PHP-21 TCL LED the ordinary LED technology is old hat, because it paves the way for a new innovation: Tri-Color LEDs. Most devices are not able to realize a real uniform color mixture at short ranges. Due to their multichip technology - here the LEDs close ranks - a homogeneous color mixture, even on short distances, is guaranteed. The colors are concentrated and therefore saturated. At the same time with the Tri-Color LEDs you can mix a pure white which isn't possible in this way with conventional RGB LEDs. A result that definitely stands out from mass of other moving heads. Of course, this new technology has to find its way to the professional field of application - The FUTURELIGHT PHP-21 TCL LED leads the way.

Features

Versatile moving head Effect with 3.5 W multichip LEDs

Equipped with 21 x 3.5 W LEDs: RGB
TCLs (Tri-Color LEDs), behind every lens are 3 LEDs
Through the close chip placement of the multichip technology, an exquisite color mix even with short distances to the illuminated surface is provided
Long LED life
DMX-controlled operation or stand-alone operation with Master/Slave function
Exact positioning via 16 bit Pan/Tilt movement resolution
Strobe effect
Stepless RGB color mixture
Rainbow-effect with adjustable speed
Masterdimmer
PAN-angle switchable between 630° and 540°
48 preprogrammed scenes in Program Run for stand-alone operation
Number of scenes in Program Run can be changed individually
The scenes in Program Run can be modified via the Control Board or via an external controller and loaded into the memory
8 built-in programs can be called up via DMX controller
Sound-controlled via built-in microphone
Advantages of LED technology: long life, low power consumption, minimal heat emission, defacto maintenance free with brilliant light radiation

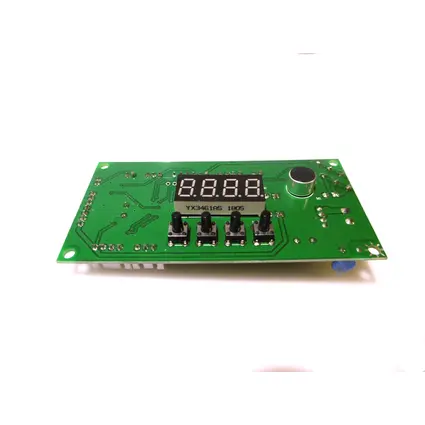

Control board with 4-digit display and foil-keyboard for adjusting the DMX-starting address, Pan/Tilt-Reverse, Program, Reset
DMX control via every standard DMX controller

Technical specifications

Power supply:	230 V AC, 50 Hz
Power consumption:	200,00 W
DMX channels:	12
DMX connection:	3-pin XLR
LED number:	21
Beam angle:	57°
Maximum PAN-movement 630°:	in 2.5 s
Maximum TILT-movement 265°:	in 1.5 s
Length of base:	420mm
Width of yoke:	370 mm
Height (head horizontal):	500 mm
Weight:	19 kg
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting

Packaging units

PU	EAN	Weight	Dimensions
1	4026397330724	23,30 kg	60cm x 45cm x 50cm

Support

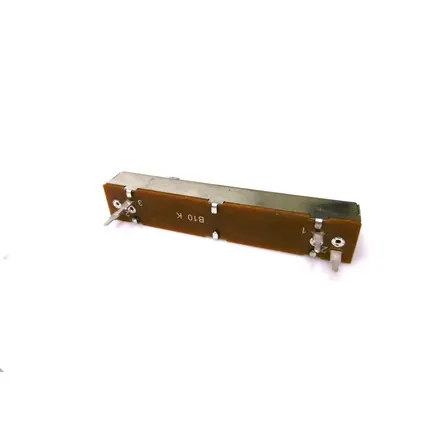

Spare parts

EUROLITE LED TCL 3W Pin=B-G-R LED Par-64 18x3W (TX-RGB1B140)

Downloads

Loading the documents. Please wait...

Manufacturer information

Steinigke Showtechnic GmbH
Andreas-Bauer-Str. 5
D-97297 Waldbüttelbrunn

+49 931 4061 600
info@steinigke.de
www.steinigke.de/support
