Weather-proof wireless DMX transceiver by Wireless Solution, IP65
FUTURELIGHT WDS-G5 TX IP Wireless DMX Transceiver Outdoor

The article is no longer in our assortment.

Check out the alternatives:

Item no. 51834030

Features

Weather-proof wireless DMX transceiver by Wireless Solution, IP65

Wireless Solution G5 transceiver unit and antenna
Adaptive frequency hopping ensures interference-free operation in the 2.4 GHz band
LED for monitoring the operating status
Lockable power input (IP T-Con)
Control via plug and play
With omega bracket
2.4 GHz license-free worldwide
Operating range up to 500m with line-of-sight
Suitable for outdoor use IP65
Up to 6 transmitters can be operated in parallel without interference
Ultra-low latency

Package contents

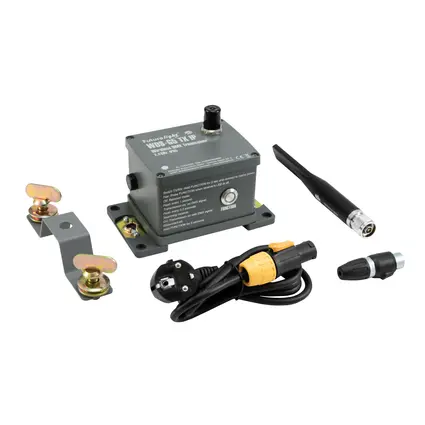

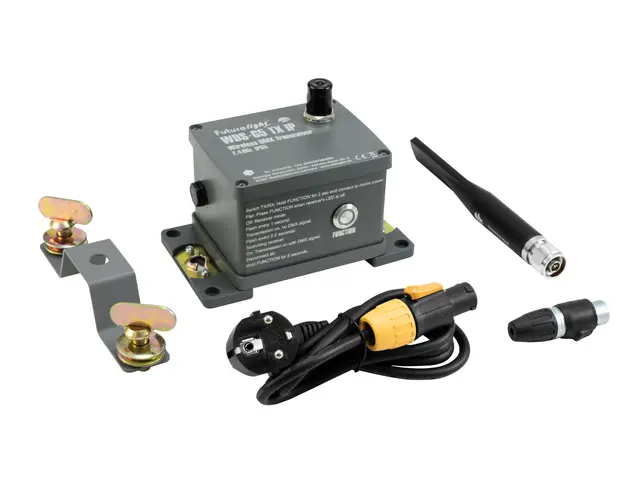

1 x device, 1 x user manual, 1 x declaration of conformity, 1 x power cord, 1 x antenna, 1 x omega bracket, 1 x plug (male)

Technical specifications

Power supply:	230 V AC, 50 Hz
Power consumption:	3 W
IP classification:	IP65
DMX output:	3-pin XLR (M) mounting version IP
Control:	Plug and play
Range:	Range up to 500m with line-of-sight
Frequency band:	2.4 GHz
Parallel mode:	Max. 6 transmitter
Latency:	< 5 ms
Modulation:	AFHSS
Attachment system:	Omega bracket
Color:	Grey
Dimensions:	Width: 15,3 cm Depth: 10,0 cm Height: 26,3 cm
Weight:	1,15 kg

Packaging units

PU	EAN	Weight	Dimensions
1	4026397684094	1,54 kg	22,5cm x 18,5cm x 13cm
10	4026397684100	16,55 kg	70cm x 40cm x 24,5cm
