Technical specifications

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	50 W
Power connection:	Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Lamp type:	LED lamp
LED type:	1 x 20 W high-power cold white (CW)
Max. TILT movement:	190° positioning
Max. PAN movement:	540° positioning
Equipment:	Gobos
DMX channels:	10; 13
DMX input:	1 x 3-pin XLR (M) mounting version
DMX output:	1 x 3-pin XLR (F) mounting version
Cooling:	Cooling fan
Control:	Stand-alone; DMX; sound to light via microphone
Fixtures available for:	Light´J; LED PC-Control 512
Housing color:	Black
Dimensions:	Width: 27 cm Depth: 21 cm Height: 25.5 cm
Weight:	3.86 kg

Packaging units

PU	EAN	Weight	Dimensions
1	4026397577679	4,47 kg	35cm x 33cm x 22,5cm
4	4026397577686	19,15 kg	68cm x 36,5cm x 48cm

Spare parts

Downloads

Spezifications

Name	Version	Language
Spezifications as PDF
Product badge
Specifications as PDF neutral
Product badge neutral

Support

Name	Version	Language
51812596-Support-105585-1.0000-51812596-LED-PC-Control-fixtures-de.zip (2 KB)	1.0000	de

Video file

Name	Version	Language
51812596-Video-100597-de_en_es_fr.flv (22 MB)	0.0000	de_en_es_fr

All images

Name	Version	Language
51812596-Images-.zip

Video link

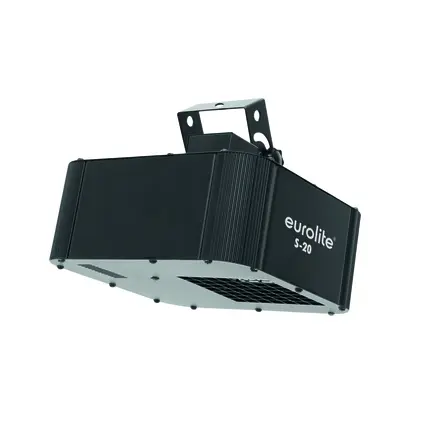

EUROLITE LED S-20 Laser simulator

The article is no longer in our assortment.

No. 51812596

Laser effect simulator with 20 W LED, directs beam via mirror, with DMX

1 high-power 20-watt LED (LumiEngin-CU-SC) for striking light effects
10 or 13 DMX channel mode selectable
DMX-controlled operation or stand-alone operation with Master/Slave function
DMX control via any standard DMX controller
Functions: DMX modes, PAN/TILT, internal programs, static colors, strobe effect with variable speed, sound-control, Master/Slave function
8 brilliant, dichroic colors plus white
Control board with 4-digit LED display, 90° reversible
Sound-controlled via built-in microphone, adjustable microphone sensitivity
Compact housing
Low power consumption
Switch-mode power supply for operation between 100 and 240 volts
Ready for connection via enclosed power cord
Ideal for party-rooms, small discotheques or mobile discotheques
1 LED 20 W high-power cold white (CW)
Gobos
Multi beam effect; beam effect
Can be operated in 10; 13 CH mode
The device is cooled by cooling fan
Control via stand-alone; DMX; sound to light via microphone
