Beam/spot/wash moving head with 371 W discharge lamp, color wheel, gobo wheels, prisms, frost, focus and zoom
EUROLITE TMH BSW-380 Moving-Head Beam/Spot/Wash

Beam/spot/wash moving head with 371 W discharge lamp, color wheel, gobo wheels, prisms, frost, focus and zoom-MainBild

Beam/spot/wash moving head with 371 W discharge lamp, color wheel, gobo wheels, prisms, frost, focus and zoom-Bild-1

svg

svg

svg

4 - 35°

svg

svg

svg

svg

svg

svg

svg

svg

svg

svg

svg

svg

svg

svg

EUROLITE

Beam/spot/wash moving head with 371 W discharge lamp, color wheel, gobo wheels, prisms, frost, focus and zoom

EUROLITE TMH BSW-380 Moving-Head Beam/Spot/Wash

Stock for approx. 12 wk(s)

1.699,00 €

Find a dealer

List price excl. 19% VAT
Prices in retail stores may vary.

Item no. 51786850

Here you find the manual and downloads for
EUROLITE TMH BSW-380 Moving-Head Beam/Spot/Wash

EUROLITE LED TMH-46 Titelbild

Eurolite TMH BSW-380

Moving Head Beam/Spot/Wash

The BSW in the name stands for Beam, Spot and Washlight, a true all-rounder. The -380 indicates the power class; an extremely bright Osram Sirius 371-watt discharge lamp is installed.

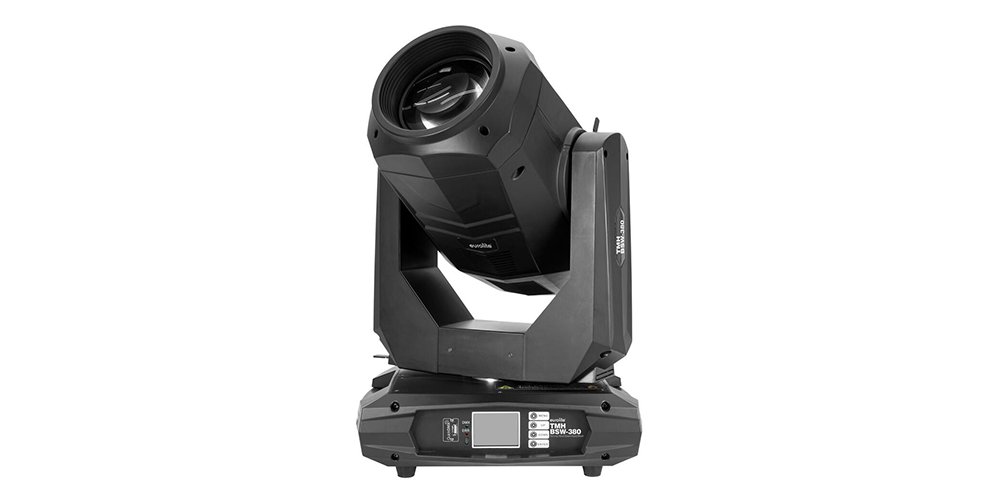

EUROLITE LED TMH-46 Frontansicht

Extensive equipment

Also in terms of equipment, this all-around moving head has been designed with the utmost care. For example, 3 gobo wheels have been installed. The first gobo wheel offers 11 static gobos, the second 7 rotating gobos, and the third 4 static gobos and an area that enables animations. The latter creates movement in the projection, which alone, but also in combination with the other gobos, provides for eye-catching effects. For example, in combination with the textured glass rotating gobo and a prism, a sensational water effect can be generated. But also a kind of fire effect and many other moving images can be realized. The TMH BSW-380 has 2 rotating prisms. The first prism splits the image into 8 images, the second into 16. In addition, the moving head offers a motorized zoom that ranges from 4° to 35°.

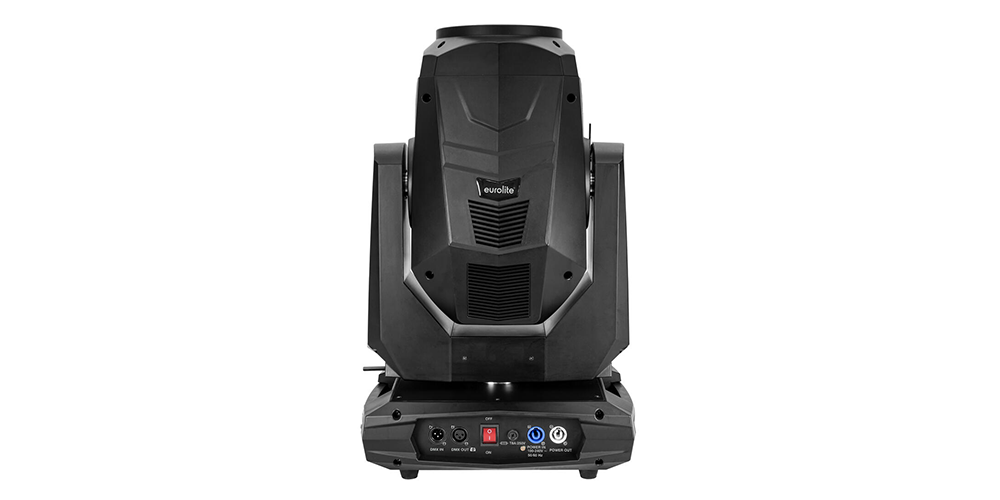

EUROLITE LED TMH-46 Anschlüsse

Different modes

In beam mode, it achieves a hard, concentrated beam with a deliberate hotspot. For further shaping of the light beam, the static gobo wheel is available, for dynamics one can use the rotating prisms. As soon as the second or third gobo wheel is used, the spotlight automatically switches to spot mode. In this mode, the images are then absolutely even and clean, ideal for projections. All three gobo wheels can be combined here. The motorized focus ensures the necessary sharpness in all areas.

With the frost filter, the BSW-380 becomes a wash light. Even in this mode, the light output remains surprisingly bright. Even with the frost filter, the image can be resized via the zoom function and colored via the color wheel. A total of 13 colors are available, all of which can be set in intermediate positions.

Features

Beam/spot/wash moving head with 371 W discharge lamp, color wheel, gobo wheels, prisms, frost, focus and zoom

Beam effect; spot effect; wash effect
Light source: Osram Sirius HRI 371W discharge lamp
Lamp installed and adjusted ex factory
Additional frost filter provides a wide, soft and homogeneous light
Positioning within 540° PAN, 230° TILT
Auto position correction (feedback)
Exact 16 bit resolution at zoom, focus
Exact positioning (16 bit resolution)
Prism 16-fold; prism 8-fold rotating; prism 16-fold rotating; gobo wheel with static gobos; gobo wheel with rotating gobos; focus motor-driven; zoom motor driven; frost filter; Dimmer
Color wheel with 13 dichroic filters plus open
rainbow effect with adjustable speed in both directions
Gobo wheel with rotating gobos, 7 gobos and open
shake effect
Slot-in gobo system for easy gobo replacement
Gobos changeable
Gobo wheel with static gobos, 11 gobos and open
shake effect
Gobo wheel with static gobos, 5 gobos and open
shake effect
Integrated show programs
The device is cooled by cooling fan
Control via stand-alone; DMX; sound to light via microphone; master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
With a beam angle of 4° - 35°
Multicolor LCD display,
with battery buffering for easy controlling
Mains input and output for power linking up to 4 units
Color animations; patterns
Preprogrammed in Light Captain
For application areas such as: Clubs/dancing school; stage; rental
Application possibility: Standing; suspended

Package contents

1 x moving light, 1 x user manual, 1 x power cord, 2 x omega bracket

Technical specifications

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	490 W
IP classification:	IP20
Protection class:	Protection class I
Power connection:	Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Power output:	P-Con (gray), mounting version
Fuse:	5 x 20 mm, T 8 A
Lamp type:	Discharge lamp
Max. TILT movement:	230° exact positioning (16 bit resolution) auto position correction (feedback)
Max. PAN movement:	540° exact positioning (16 bit resolution) auto position correction (feedback)
Flash rate:	1 - 18 Hz
Equipment:	Prism 16-fold; prism 8-fold rotating; prism 16-fold rotating; gobo wheel with static gobos; gobo wheel with rotating gobos; focus motor-driven; zoom motor driven; frost filter; Dimmer
Color generation:	Color wheel with 13 dichroic filters plus open Rainbow effect with adjustable speed in both directions
Gobos:	Gobo wheel with rotating gobos, 7 gobos and open Shake effect Outside diameter 22,5mm Image diameter 12mm Slot-in gobo system for easy gobo replacement Gobos changeable Gobo wheel with static gobos, 11 gobos and open Shake effect Gobo wheel with static gobos, 5 gobos and open Shake effect
DMX channels:	22; 26
DMX input:	3-pin XLR (M) mounting version
DMX output:	3-pin XLR (F) mounting version
Cooling:	Cooling fan
Control:	Stand-alone; DMX; sound to light via microphone; master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Preprogrammed in:	Light Captain
Beam angle:	4° - 35°
Beam angle (1/2 peak):	Spot 4 - 35°
Beam angle (1/10 peak):	Spot 4 - 35°
Housing color:	Black
Display type:	Multicolor LCD display battery buffering
Use of brands:	OSRAM bulb included
Dimensions:	Width: 39,5 cm Depth: 30,5 cm Height: 63,0 cm
Weight:	22,70 kg
Noise classification:	Class 3 (clearly perceptible sounds)
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting

Packaging units

PU	EAN	Weight	Dimensions
1	4026397701142	25,30 kg	54cm x 50cm x 64cm

Accessories

Loading accessories. Please wait...

Support

Spare parts

E6529809

Gobo 22,5mm TMH BSW-380 Design 1

E6529810

Gobo 22,5mm TMH BSW-380 Design 2

E6529811

Gobo 22,5mm TMH BSW-380 Design 3

More 5 spare parts

Downloads

Loading the documents. Please wait...

Manufacturer information

Steinigke Showtechnic GmbH
Andreas-Bauer-Str. 5
D-97297 Waldbüttelbrunn

+49 931 4061 600
info@steinigke.de
www.steinigke.de/support

Safety instructions and warnings

Specific safety instructions that apply to the product can be found in the operating instructions for the product.
