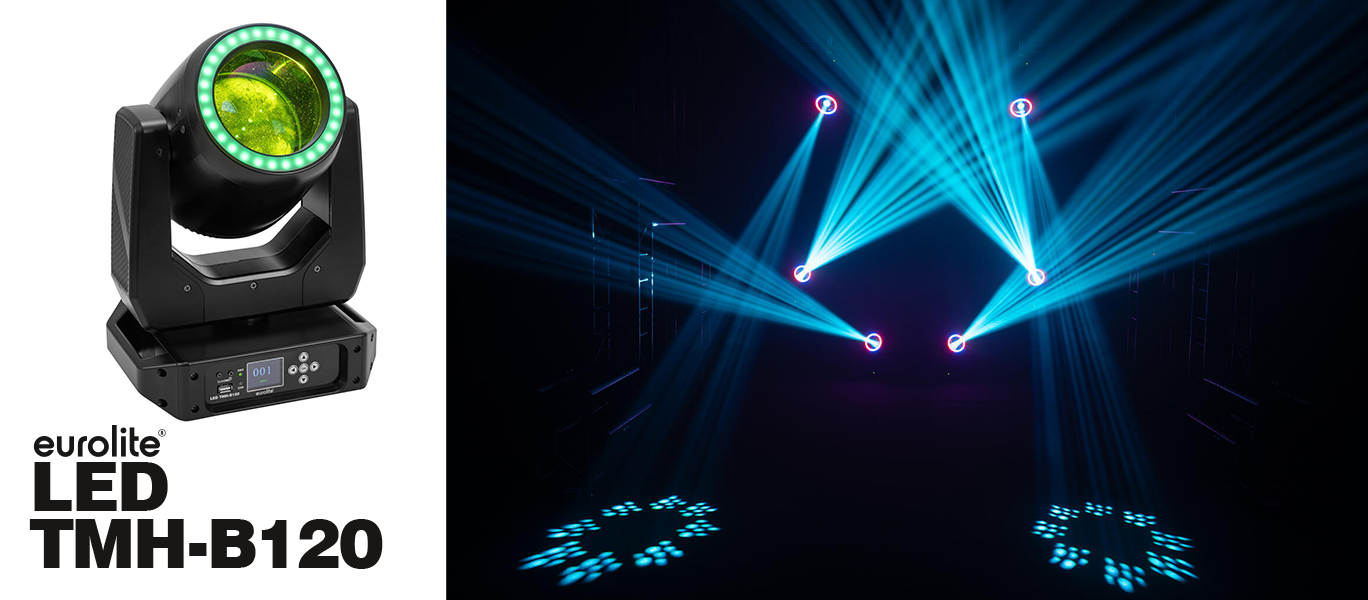

EUROLITE LED TMH-B120 Hypno Moving Head Beam

Name: EUROLITE LED TMH-B120 Hypno Moving Head Beam
Uploaded: 2022-01-01
Description: LED moving head beam with hypno ring, color wheel, static gobo wheel, prism and focus

LED moving head beam with hypno ring, color wheel, static gobo wheel, prism and focus-MainBild

LED moving head beam with hypno ring, color wheel, static gobo wheel, prism and focus-Bild-1

120° ring

2° beam

LED moving head beam with hypno ring, color wheel, static gobo wheel, prism and focus

EUROLITE LED TMH-B120 Hypno Moving Head Beam

Stock for approx. 4 wk(s)

649,00 €

Find a dealer

List price excl. 19% VAT
Prices in retail stores may vary.

Item no. 51786081

Print product

Product badge

Here you find the manual and downloads for
EUROLITE LED TMH-B120 Hypno Moving Head Beam

EUROLITE LED TMH-B120

The TMH-B120 Moving Spot-Beam is a true standout with its powerful 120-watt white LED and ultra-narrow beam angle of just 2°. This compact all-rounder is perfect for stages, clubs, and mobile DJs.

Versatile Beam with Hypno Effect

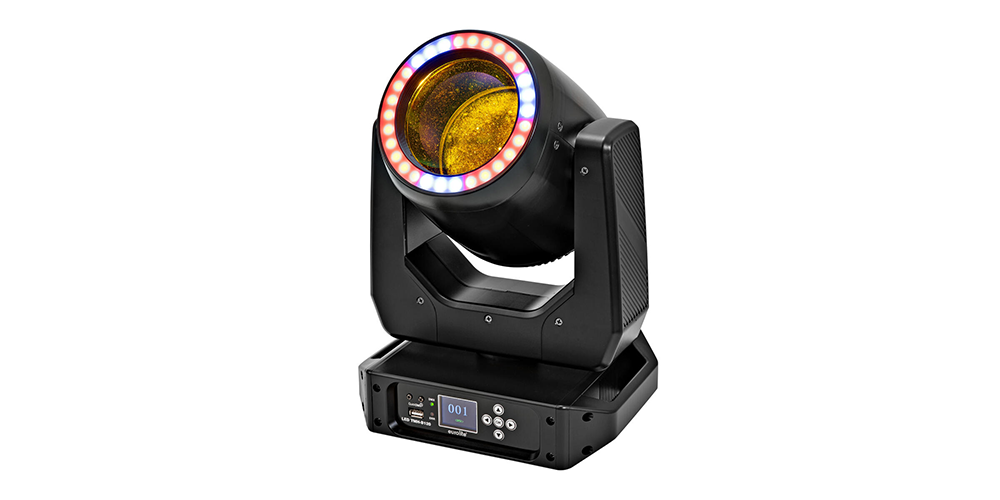

With 13 static gobos and a rotating 8-facet prism, the B120 creates impressive light shows. The motorized focus ensures sharp projections, while the frost filter softens the beam into a gentle wash effect. Thanks to the color wheel with seven dichroic colors and the ability to create half- or bi-color effects, there are no limits to creativity. The rainbow effect with variable speed adds extra flair. Another highlight is the LED ring with 30 SMD LEDs in red, green, and blue. Whether static colors or dynamic chase effects, the Hypno Ring perfectly combines beam and effect lighting.

Equipment

With precise 16-bit resolution, the B120 offers accurate control. It comes with four pre-installed show programs and can be operated via stand-alone mode, sound activation, DMX, or optionally with QuickDMX, CRMX by LumenRadio, and W-DMX. Multiple units can be easily synchronized using the master/slave function.

Thanks to efficient cooling, the B120 remains reliable even during long operating times. The multi-color LCD display, sturdy carrying handles, and rubber feet ensure easy handling. With the Omega bracket, it can be mounted either standing or hanging.

The B120 is flicker-free and provides various options in case of DMX signal loss, such as hold or blackout. Pre-programmed settings for control via Light Captain further simplify its use.

Flexible Application

Whether in clubs, dance schools, with mobile DJs, rental companies, or on stage, the B120 impresses with its versatile features and powerful effects. It’s an ideal choice to bring every event into the spotlight.

Features

LED moving head beam with hypno ring, color wheel, static gobo wheel, prism and focus

1 powerful LED 120 W COB (chip-on-board) cold white (CW)
30 powerful LEDs 0,2 W SMD 5050 3in1 TCL RGB (homogenous color mix)
Positioning within 540° PAN, 240° TILT
Color wheel; gobo wheel with static gobos; focus motor-driven; frost filter; prism 8-fold rotating
Dimmer
Beam effect
Color wheel with 7 dichroic filters plus open
half colors selectable, Rainbow effect with adjustable speed in both directions
Gobo wheel with static gobos, 13 gobos und open
shake effect
4 integrated show programs
The device is cooled by cooling fan at the base; cooling fan at the Head
Control via stand-alone; sound to light via microphone; DMX; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional); master/slave function
Flicker-free
DMX fail mode (hold; zero values)
With a beam angle of 2°

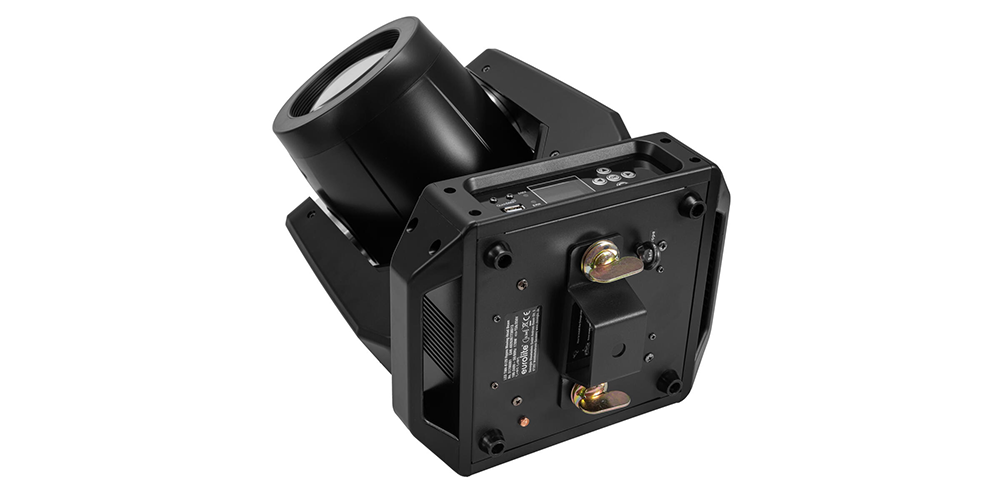

With omega bracket
Multicolor LCD display
2 Rugged carrying handles
4 rubber feet
Mains input and output for power linking up to 8 units
For application areas such as: Clubs/dancing school; stage; mobile djs / entertainer; rental
Application possibility: Standing; suspended
Auto position correction (feedback)
Exact positioning (16 bit resolution)
Preprogrammed in Light Captain

Package contents

1 x moving light, 1 x power cord, 1 x omega bracket, 1 x safety eyelet, 1 x user manual

Technical specifications

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	170 W
IP classification:	IP20
Protection class:	Protection class I

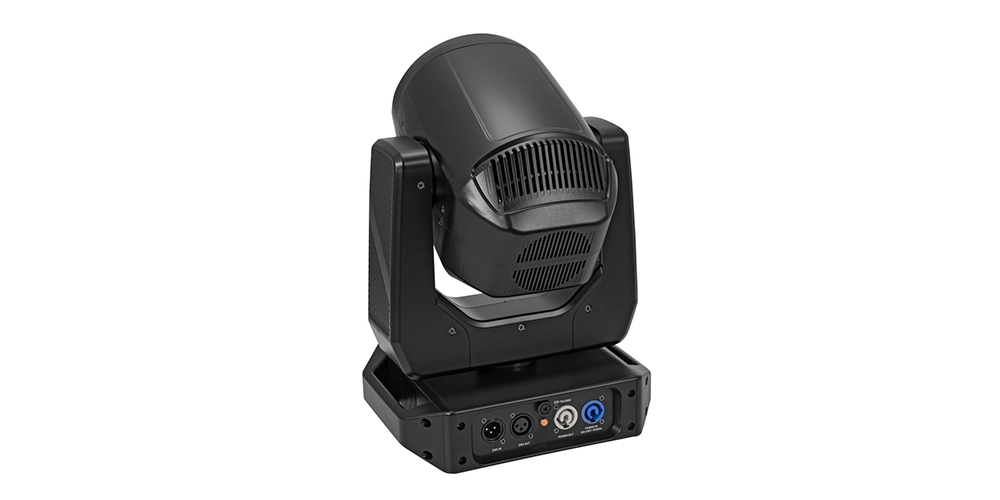

Power connection:	Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Cable construction:	3 x 1,0 mm² H05VV-F
Cable length:	1,1 m
Power output:	P-Con (gray), mounting version
Fuse:	5 x 20 mm, T 2 A fuse replaceable
Lamp type:	LED lamp
LED type:	1 x 120 W COB (chip-on-board) cold white (CW) 30 x 0,2 W SMD 5050 3in1 TCL RGB (homogenous color mix)
Max. TILT movement:	240° exact positioning (16 bit resolution) auto position correction (feedback)
Max. PAN movement:	540° exact positioning (16 bit resolution) auto position correction (feedback)
Flash rate:	1 - 20 Hz
Equipment:	Color wheel; gobo wheel with static gobos; focus motor-driven; frost filter; prism 8-fold rotating
Color generation:	Color wheel with 7 dichroic filters plus open Half colors selectable, Rainbow effect with adjustable speed in both directions
Gobos:	Gobo wheel with static gobos, 13 gobos und open Shake effect
DMX channels:	21
DMX input:	3-pin XLR (M) mounting version
DMX output:	3-pin XLR (F) mounting version
Cooling:	1 x cooling fan at the base 1 x cooling fan at the Head
Control:	Stand-alone; sound to light via microphone; DMX; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional); master/slave function
Preprogrammed in:	Light Captain
Projection:	Flicker-free
DMX fail mode:	Hold; zero values
Beam angle:	2°
Beam angle (1/2 peak):	Beam 2° Ring 120°
Beam angle (1/10 peak):	Beam 2° Ring 120°
Color temperature:	8500K
Housing color:	Black
Attachment system:	Omega bracket
Display type:	Multicolor LCD display
Status LED:	DMX, fault
USB port:	Type A
Carrying handle:	2 pc/pcs
Transport aid:	4 x rubber feet
Material:	Plastic
Dimensions:	Width: 26,0 cm Depth: 23,5 cm Height: 37,5 cm
Weight:	6,95 kg
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting

Packaging units

PU	EAN	Weight	Dimensions
1	4026397738513	7,80 kg	43cm x 30cm x 34cm
