LED moving head beam with nine 15 W LEDs
EUROLITE LED TMH-18 Moving Head Beam

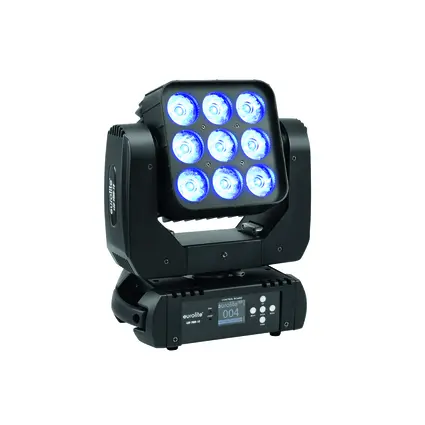

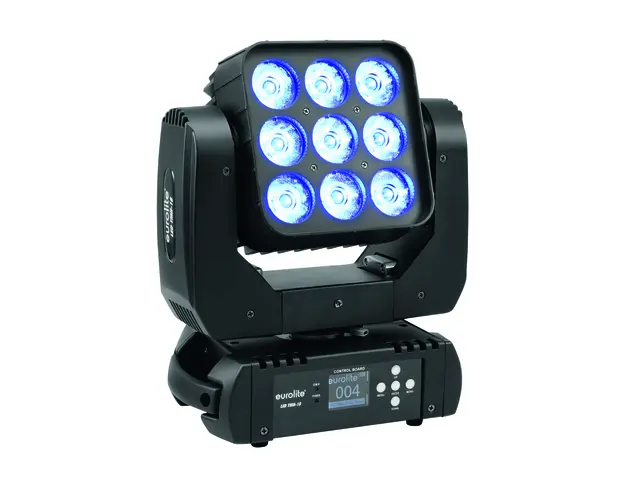

LED moving head beam with nine 15 W LEDs-MainBild
download image
Detail images (19 overall)
svg
svg
3°
svg
svg
svg
svg
svg
svg
svg
EUROLITE

LED moving head beam with nine 15 W LEDs

EUROLITE LED TMH-18 Moving Head Beam

The article is no longer in our assortment.
No. 51786060
Print product
Product badge
Here you find the manual and downloads for
EUROLITE LED TMH-18 Moving Head Beam
EUROLITE LED TMH-18 cover image

TMH-18

Matrix light in a handy format

This beam is a little bit different from the TMH series: it is the only one that is designed as a matrix headlight with a 3 x 3 pattern. It is powerful with its nine 15 W LEDs. The four-color diodes feature RGBW color mixing. With its very narrow beam angle of 3°, the small moving head produces really sharp beams. Color presets and a rainbow effect can also be retrieved.
Features

LED moving head beam with nine 15 W LEDs

  • DMX-controlled operation or stand-alone operation with Master/Slave function
  • Color presets
  • Internal programs
  • Rainbow effect with adjustable speed
  • Stepless RGBW color mixture
  • Random strobe effect
  • Electronic dimmer
  • Control board with graphic LC display for adjusting the DMX-starting address, PAN/TILT reverse, program, reset
  • Switch-mode power supply for operation between 100 and 240 volts
  • DMX control via every standard DMX controller
  • 9 powerful LEDs 15 W high-power 4in1 QCL RGBW (homogenous color mix)
  • Exact positioning (16 bit resolution)
  • Gobos
  • Beam effect
  • The device is cooled by cooling fan
  • Control via DMX; stand-alone; sound to light via microphone
  • Preprogrammed in Light´J; LED PC-Control 512
  • With a beam angle of 3°
Technical specifications
Power supply:100-240 V AC, 50/60 Hz
Power consumption:125 W
IP classification:IP20
Power connection:Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Lamp type:LED lamp
LED type:9 x 15 W high-power 4in1 QCL RGBW (homogenous color mix)
Max. TILT movement:200° exact positioning (16 bit resolution)
Max. PAN movement:540° exact positioning (16 bit resolution)
Flash rate:0 - 18 Hz
Equipment:Gobos
DMX channels:1; 16; 48
DMX input:1 x 3-pin XLR (M) mounting version
DMX output:1 x 3-pin XLR (F) mounting version
Cooling:Cooling fan
Control:DMX; stand-alone; sound to light via microphone
Preprogrammed in:Light´J; LED PC-Control 512
Beam angle:3°
Beam angle (1/2 peak):3°
Beam angle (1/10 peak):8°
Illuminance in Lux (lx):Red (R) 3m: 2324 lx, 6m: 592 lx
Green (G) 3m: 4210 lx, 6m: 1107 lx
Blue (B) 3m: 1012 lx, 6m: 277 lx
Cold white (CW) 3m: 6714 lx, 6m: 1769 lx
All 3m: 12524 lx, 6m: 3277 lx
Housing color:Black
Dimensions:Width: 14,5 cm
Depth: 26 cm
Height: 36 cm
Weight:5,35 kg
Legal specifications
Special product:Not designed for household room illumination
Intended use:Show effect lighting
Packaging units
PUEANWeightDimensions
140263975617606,10 kg41cm x 32cm x 23cm
4402639756596625,45 kg66cm x 43cm x 48cm
Accessories
Loading accessories. Please wait...
Support
Spare parts
E6508853
IC PT4115
Downloads
Loading the documents. Please wait...
Manufacturer information
Steinigke Showtechnic GmbH
Andreas-Bauer-Str. 5
D-97297 Waldbüttelbrunn

+49 931 4061 600
info@steinigke.de
www.steinigke.de/support
