LED lighting system with 4 individually controllable 30 W moving heads, gobo- and color wheel
EUROLITE LED TMH Bar S120 Moving Head Spots

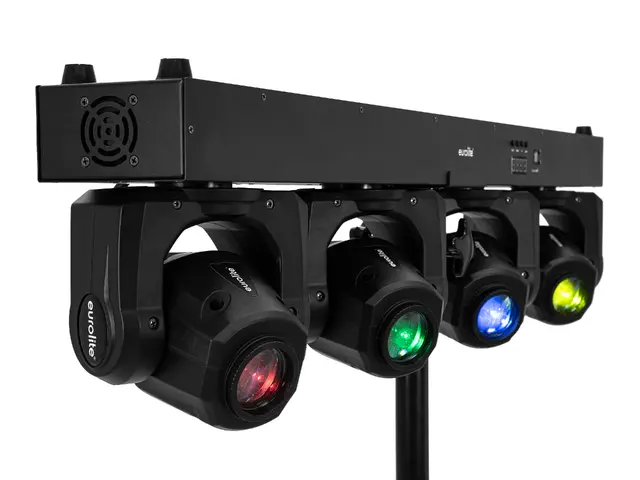

LED lighting system with 4 individually controllable 30 W moving heads, gobo- and color wheel-MainBild

LED lighting system with 4 individually controllable 30 W moving heads, gobo- and color wheel-Bild-1

svg

13°

svg

svg

svg

svg

svg

svg

svg

svg

svg

svg

svg

svg

svg

EUROLITE

LED lighting system with 4 individually controllable 30 W moving heads, gobo- and color wheel

EUROLITE LED TMH Bar S120 Moving Head Spots

Stock for approx. 12 wk(s)

799,00 €

Save money: This article is available in a bundle.

Find a dealer

List price excl. 19% VAT
Prices in retail stores may vary.

Item no. 51786055

Here you find the manual and downloads for
EUROLITE LED TMH Bar S120 Moving Head Spots

EUROLITE TMH Bar S120 title image

EUROLITE TMH Bar S120

Four moving heads on one bar

The EUROLITE TMH Bar S120 combines four fully-fledged moving heads on a single bar, with each head equipped with a powerful 30-watt LED. Each head can be controlled individually, allowing a high degree of flexibility in lighting design.

EUROLITE TMH Bar S120 front view

Inner values

Inside the devices there are 7 gobos and 8 colors, which can also be used as half colors between two color tones. The TMH Bar S120 offers a total of 8 different DMX modes for control. In the simplest mode, which only uses 3 channels, 22 automatic programs are available. These can run at an adjustable speed or be music-controlled. In the extended modes, the heads can be controlled together, in groups of two or each head individually.

EUROLITE TMH Bar S120 standing

Flexible installation

The bar can be mounted in a variety of ways: in the most basic scenario, it can be placed on a table or floor with its four rubber feet, which is particularly suitable for uplighting along a wall. Alternatively, the bar can be mounted on a stand using a 35mm stand sleeve. Suspension is also possible, for which two omega brackets are included in the scope of delivery. These can be used directly for mounting or fitted with hooks or clamps.

EUROLITE TMH Bar S120 close up

Connections

Power is supplied via a P-Con connection and there is also a corresponding output. The DMX connections are three-pin. The bar also has a USB socket into which a wireless DMX receiver for the Quick DMX or CRMX system can be plugged.

Save money: This article is available in a bundle.

Sets are loaded. Please wait...

Features

LED lighting system with 4 individually controllable 30 W moving heads, gobo- and color wheel

4 powerful LEDs 30 W COB (chip-on-board)
Control via stand-alone; DMX; sound to light via microphone; master/slave function; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution (optional)
Gobo wheel with static gobos; focus manual; color wheel
Gobo wheel with static gobos, 7 gobos and open
shake effect
Color wheel with 7 dichroic filters plus open
half colors selectable, Rainbow effect with adjustable speed
Strobe effect; beam effect
Positioning within 540° PAN, 180° TILT
Exact positioning (16 bit resolution)
Dimmer electronic
Flicker-free
With a beam angle of 13°
Crossbar with integrated DMX control unit and stand sleeve
With omega bracket
4 digit 7-segment LED display
Rubber feet
The device is cooled by temperature-controlled fan
Mains input and output for power linking up to 8 units
Preprogrammed in Colorchief; Light´J; Light Captain
For application areas such as: Clubs/dancing school; wedding/gala/events; party room; mobile djs / entertainer
Application possibility: Standing; suspended; on stand

Package contents

1 x moving light, 1 x user manual, 1 x power cord, 2 x omega bracket, 2 x safety eyelet

Technical specifications

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	100 W
IP classification:	IP20
Protection class:	Protection class I
Power connection:	Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Power output:	P-Con (gray), mounting version
Fuse:	5 x 20 mm, T 2 A fuse replaceable
Lamp type:	LED lamp
LED type:	4 x 30 W COB (chip-on-board)
Max. TILT movement:	180° positioning; exact positioning (16 bit resolution)
Max. PAN movement:	540° positioning; exact positioning (16 bit resolution)
Equipment:	Gobo wheel with static gobos; focus manual; color wheel
Color generation:	Color wheel with 7 dichroic filters plus open Half colors selectable, Rainbow effect with adjustable speed
Gobos:	Gobo wheel with static gobos, 7 gobos and open Shake effect
DMX channels:	3; 5; 9; 11; 17; 21; 30; 38
DMX input:	3-pin XLR (M) mounting version
DMX output:	3-pin XLR (F) mounting version
Cooling:	Temperature-controlled fan
Control:	Stand-alone; DMX; sound to light via microphone; master/slave function; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution (optional)
Preprogrammed in:	Colorchief; Light´J; Light Captain
Projection:	Flicker-free
Beam angle:	13°
Beam angle (1/2 peak):	13°
Color temperature:	7300K
Illuminance in Lux (lx):	Cold white (CW) 1m: 8899 lx, 3m: 856 lx, 6m: 205 lx
Housing color:	Black
Attachment system:	2x omega bracket
Display type:	4 digit 7-segment LED display
Transport aid:	Rubber feet
Dimensions:	Width: 1 m Depth: 17,5 cm Height: 28,0 cm
Weight:	13,00 kg
Noise classification:	Class 3 (clearly perceptible sounds)
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting

Packaging units

PU	EAN	Weight	Dimensions
1	4026397728958	15,00 kg	108cm x 34cm x 25,5cm

Accessories

Loading accessories. Please wait...

Support

Spare parts

E6508901

LED COB 30W 8600K TSL-150 (PD3 0WE0V2)

E6511882

Pcb (motor + LED driver) LED TMH Bar S120 (X-Y-1733-1)

E6511896

Pcb (motor + LED driver) LED TMH Bar S120 (X-Y-1733-2)

More 3 spare parts

Downloads

Loading the documents. Please wait...

Manufacturer information

Steinigke Showtechnic GmbH
Andreas-Bauer-Str. 5
D-97297 Waldbüttelbrunn

+49 931 4061 600
info@steinigke.de
www.steinigke.de/Produktanfrage

Safety instructions and warnings

Specific safety instructions that apply to the product can be found in the operating instructions for the product.
