Technical specifications

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	310 W
IP classification:	IP65
Protection class:	Protection class I
Power connection:	Mains input via IP T-Con (M) mounting version power supply cord with safety plug
Cable construction:	3 x 1.5 mm² H05RN-F
Power output:	IP T-Con (F) mounting version
Fuse:	5 x 20 mm, T 4 A fuse replaceable
Lamp type:	LED lamp
LED type:	1 x 250 W COB (chip-on-board) cold white (CW)
Max. TILT movement:	250° exact positioning (16 bit resolution) auto position correction (feedback)
Max. PAN movement:	540° exact positioning (16 bit resolution) auto position correction (feedback)
Flash rate:	1 - 20 Hz
Equipment:	Multicolor effect filter; focus motor-driven; frost filter; color wheel; gobo wheel with static gobos; prism 24-fold rotating; prism 8-fold rotating
Color generation:	Color wheel with 14 dichroic filters plus open Half colors selectable, Rainbow effect with adjustable speed in both directions
Gobos:	Gobo wheel with static gobos, 13 gobos und open
DMX channels:	14; 16

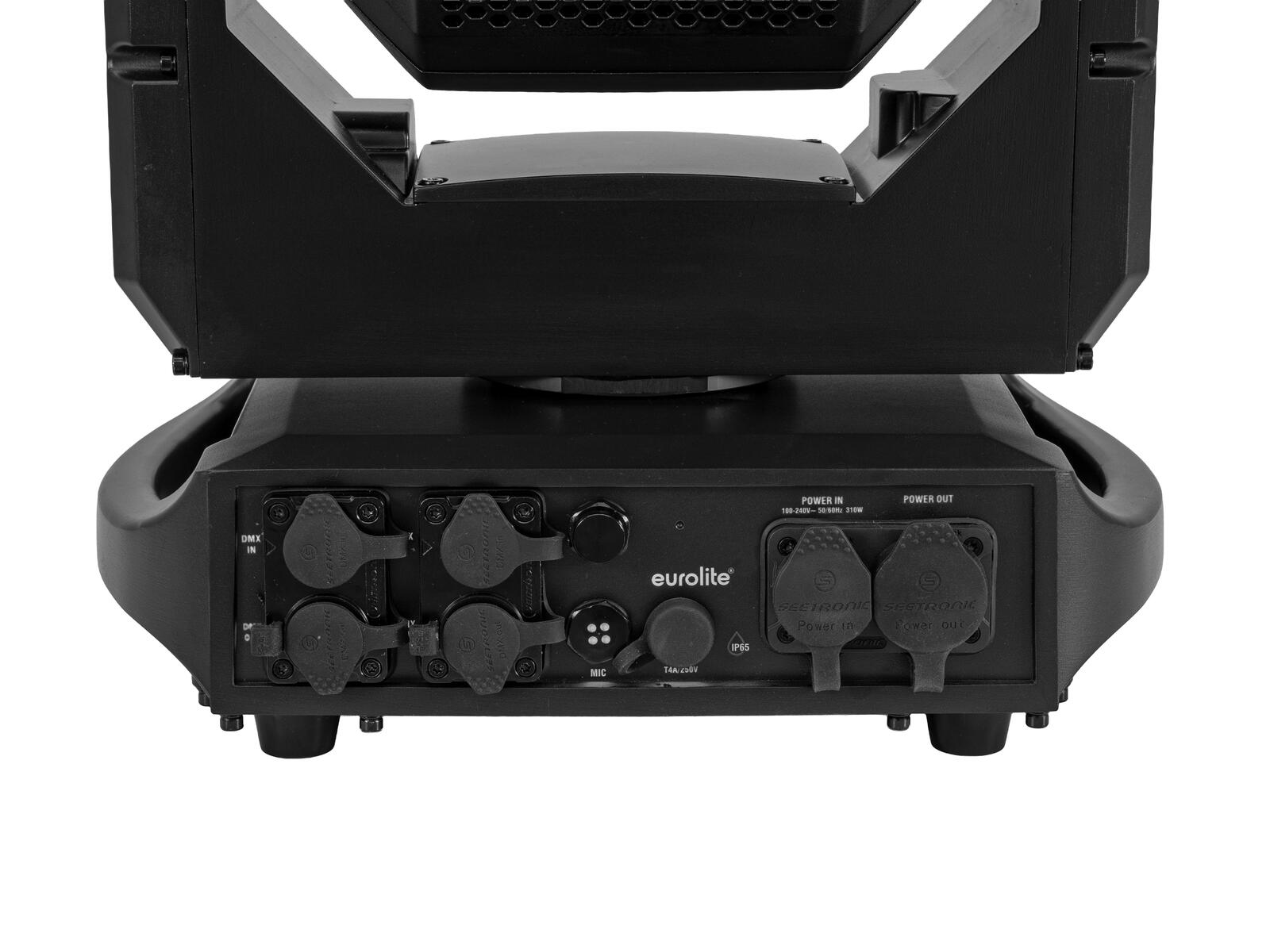

DMX input:	3-pin XLR (M) mounting version IP 5-pin XLR (M) mounting version IP
DMX output:	3-pin XLR (F) mounting version IP 5-pin XLR (F) mounting version IP
Cooling:	1 x low-noise cooling fan at the base 5 x temperature-controlled fan at the head
Control:	DMX; RDM; master/slave function; stand-alone; sound to light via microphone
Fixtures available for:	Light Captain
Projection:	Flicker-free
PWM frequency:	4000 Hz
DMX features:	RDM For bidirectional communication over the DMX line
DMX fail mode:	Hold; blackout; auto
Beam angle:	1°
Beam angle (1/2 peak):	1°
Beam angle (1/10 peak):	1°
Housing color:	Black
Attachment system:	2x omega bracket
Display type:	Multicolor LCD display
Carrying handle:	2 pc/pcs
Transport aid:	4 x rubber feet
Diameter mounting holes:	2 x Ø12mm
Use of brands:	Built with SEETRONIC connector
Material:	Aluminum casting
Dimensions:	Width: 32.0 cm Depth: 22.5 cm Height: 52.0 cm
Weight:	16.35 kg
Noise classification:	Class 2 (slight noise)
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting

Packaging units

PU	EAN	Weight	Dimensions
1	4026397755800	17,85 kg	38cm x 30cm x 60,5cm

Spare parts

Downloads

Spezifications

Name	Version	Language
Spezifications as PDF
Product badge
Specifications as PDF neutral
Product badge neutral

All images

Name	Version	Language
51782205-Images-.zip

Video link

https://www.youtube-nocookie.com/embed/idqd0ROs2Vo

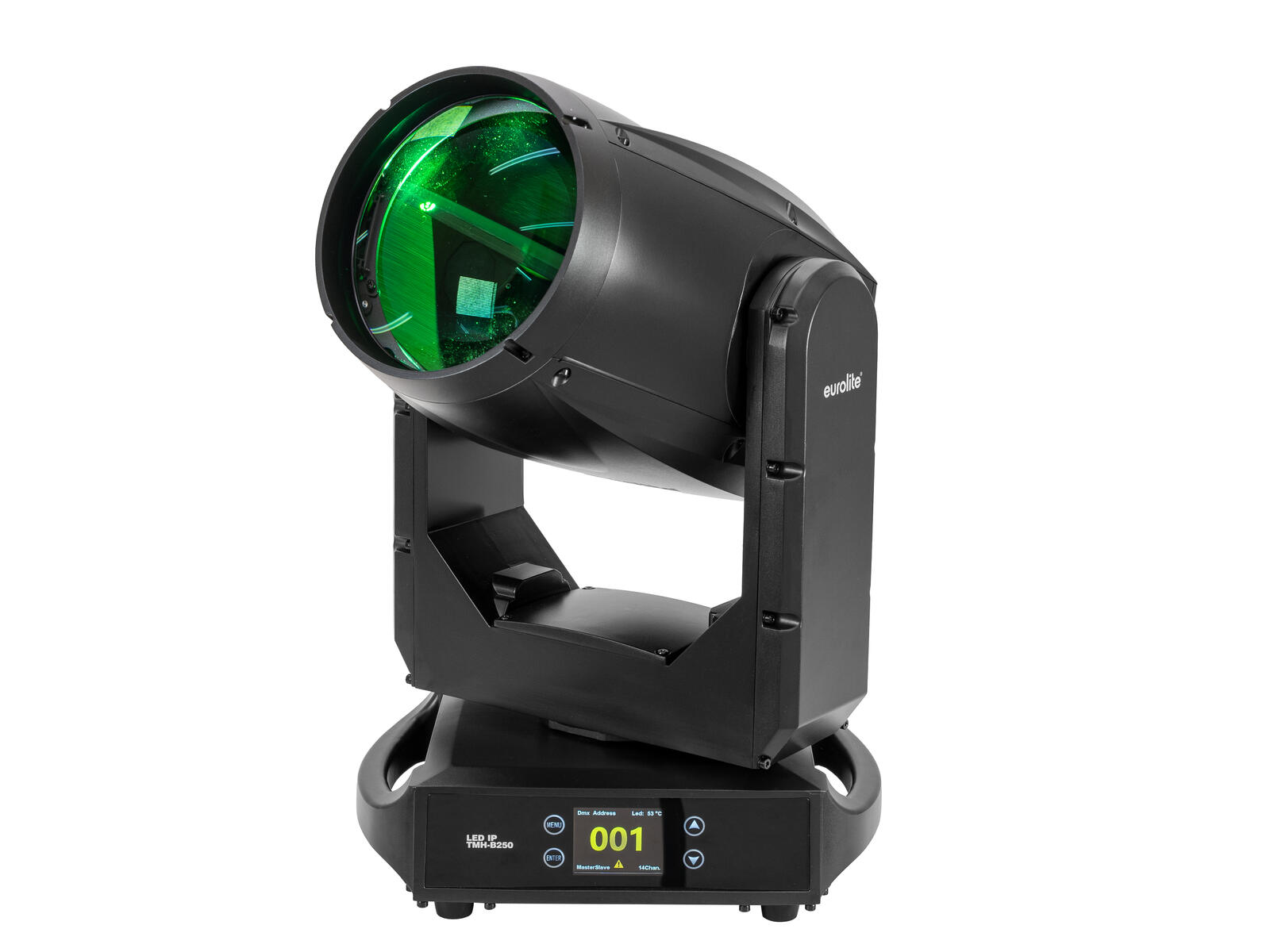

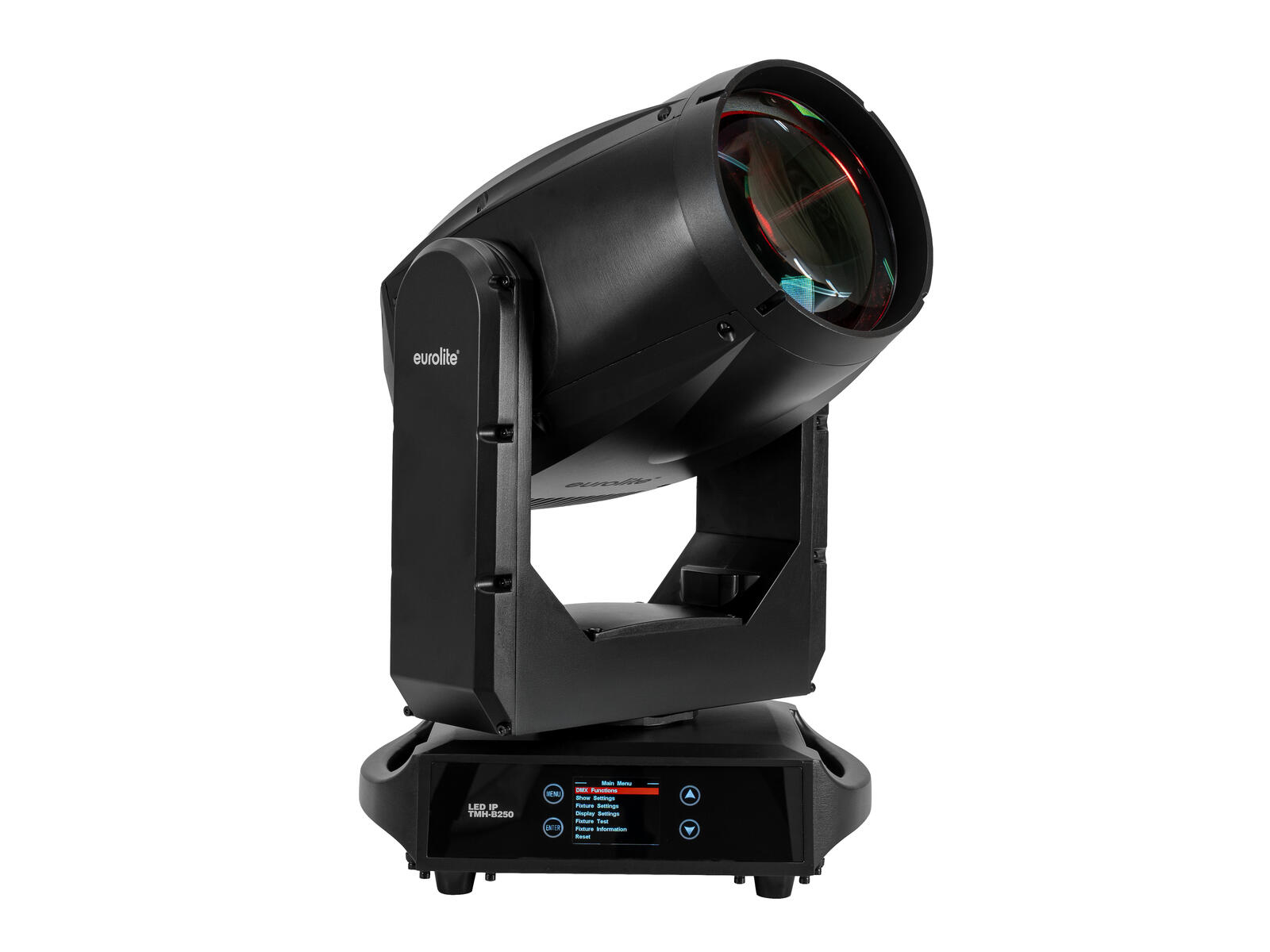

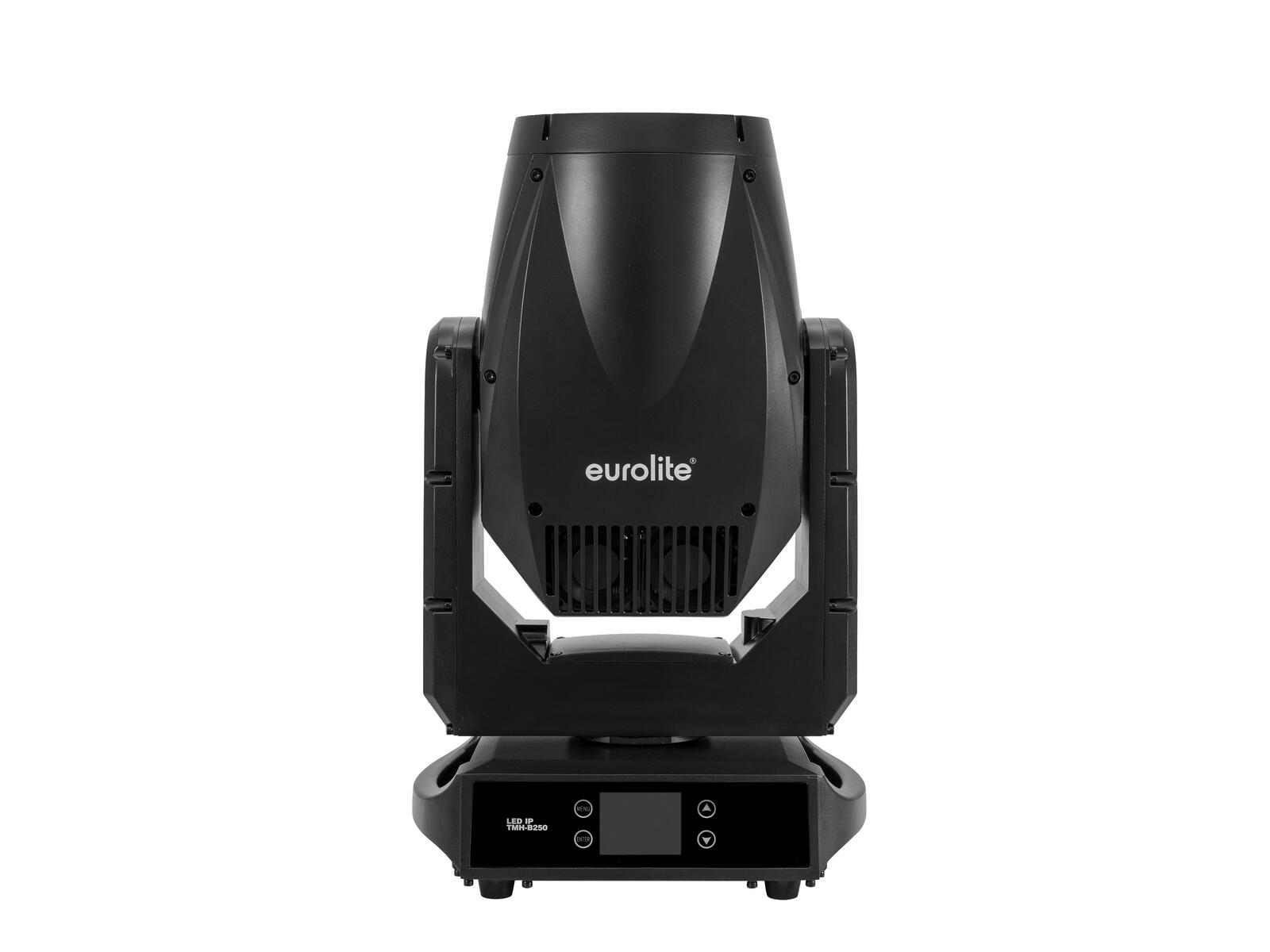

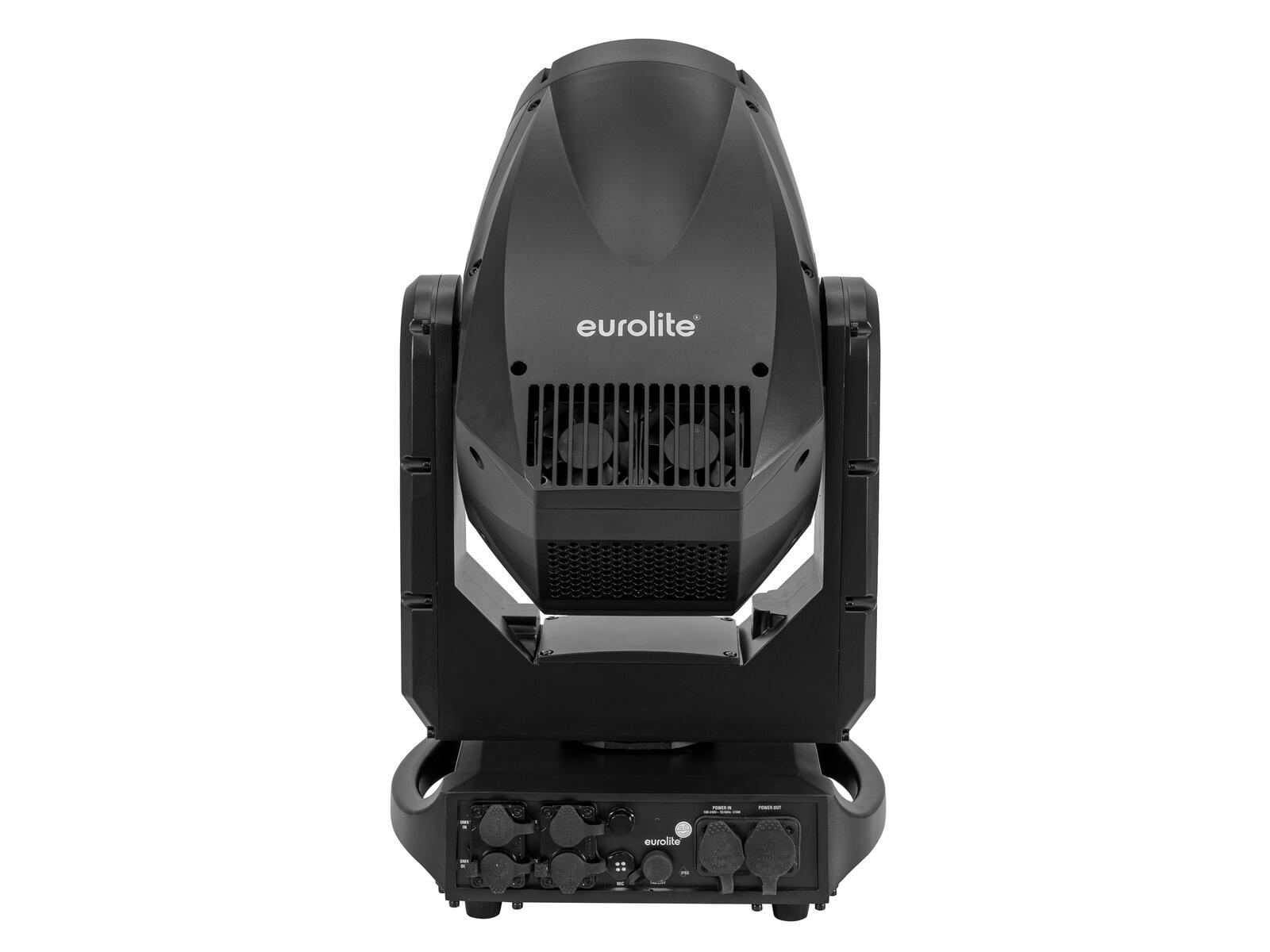

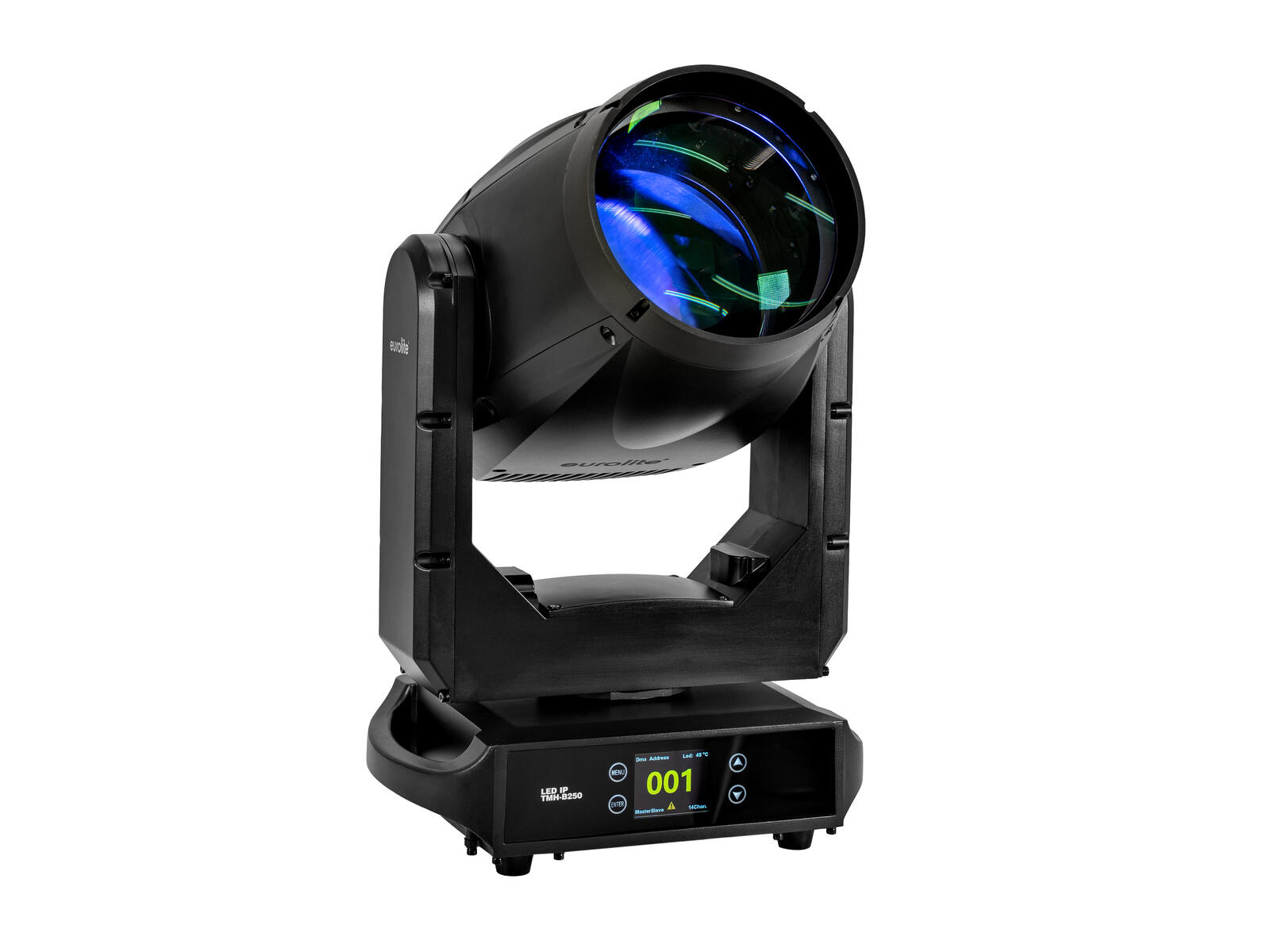

EUROLITE LED IP TMH-B250 Moving Head Beam

Name: EUROLITE LED IP TMH-B250 Moving Head Beam
Uploaded: 2022-01-01
Description: Weather-proof beam moving head (IP65) with 250W LED, gobo wheel and two combinable prisms

Weather-proof beam moving head (IP65) with 250W LED, gobo wheel and two combinable prisms-MainBild

Weather-proof beam moving head (IP65) with 250W LED, gobo wheel and two combinable prisms-Bild-1

EUROLITE LED IP TMH-B250 Moving Head Beam

Stock for approx. 12 wk(s)

1.099,00 €

Find a dealer

Stock for approx. 12 wk(s)

List price excl. 19% VAT
Prices in retail stores may vary.

No. 51782205

1°

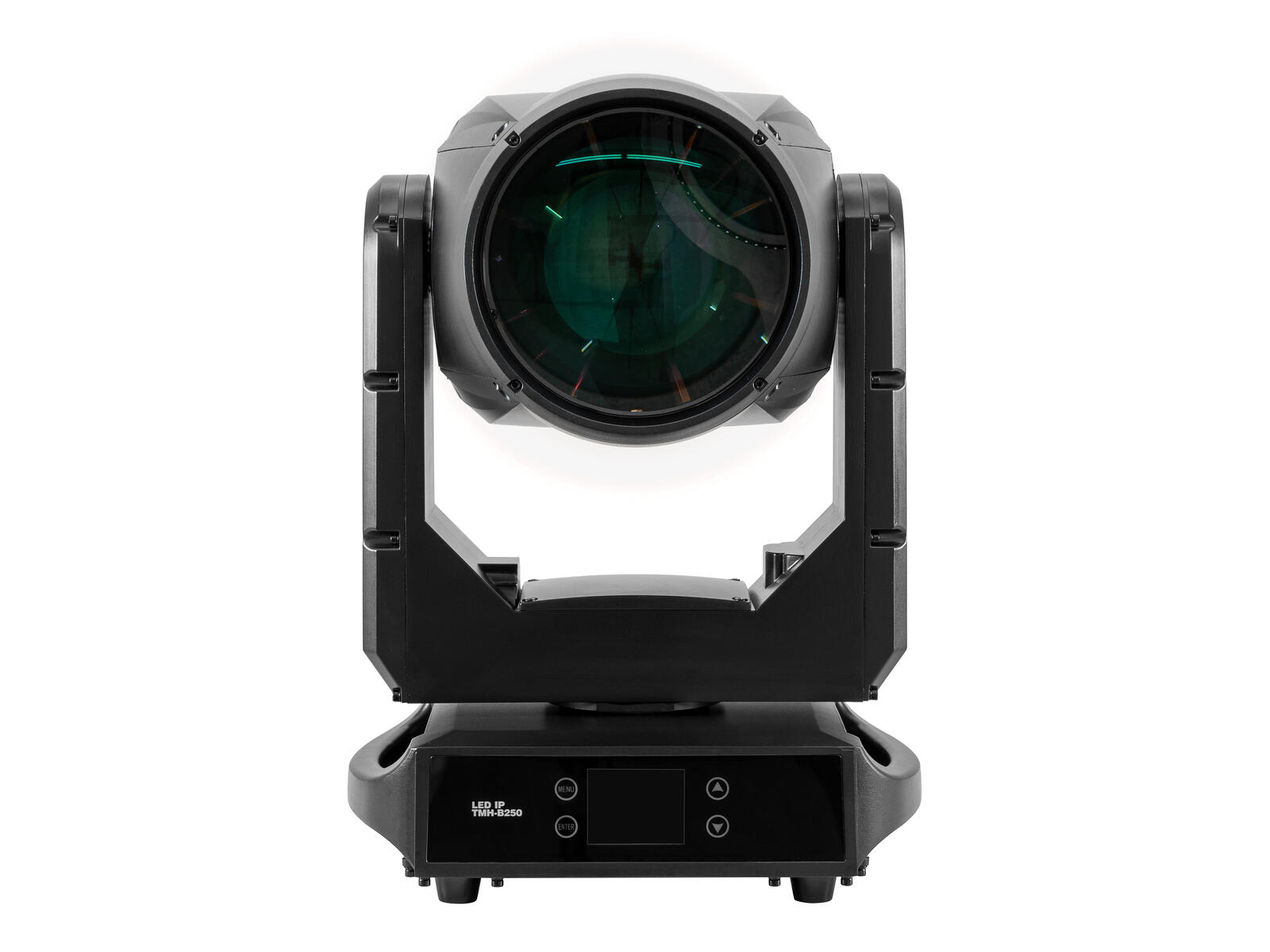

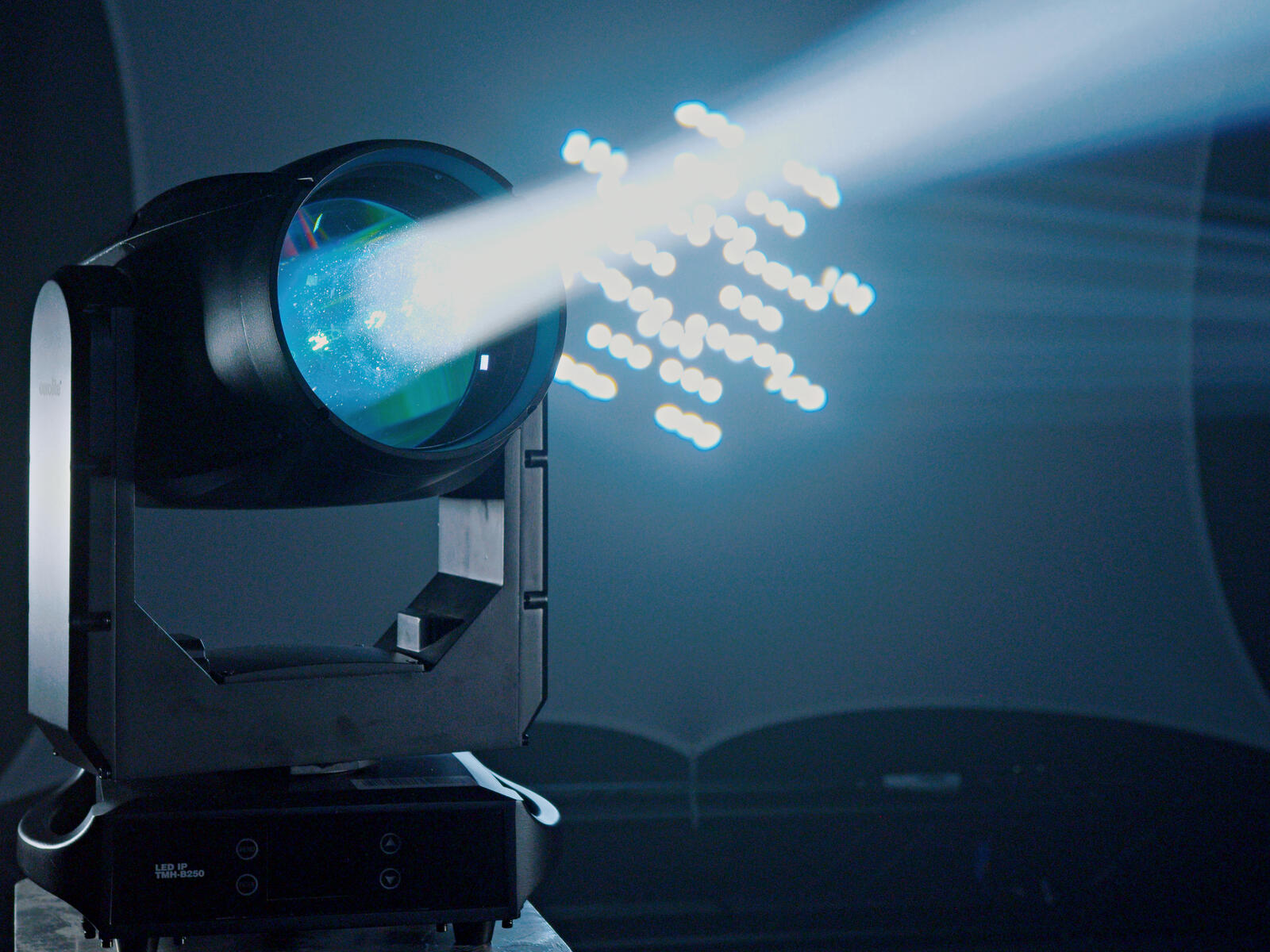

This moving head is designed for use in any weather. With its IP65 rating, it can easily withstand heavy rain.

With an extremely narrow beam angle of just 1°, it produces a precise and powerful beam, driven by a high-output 250 W LED.

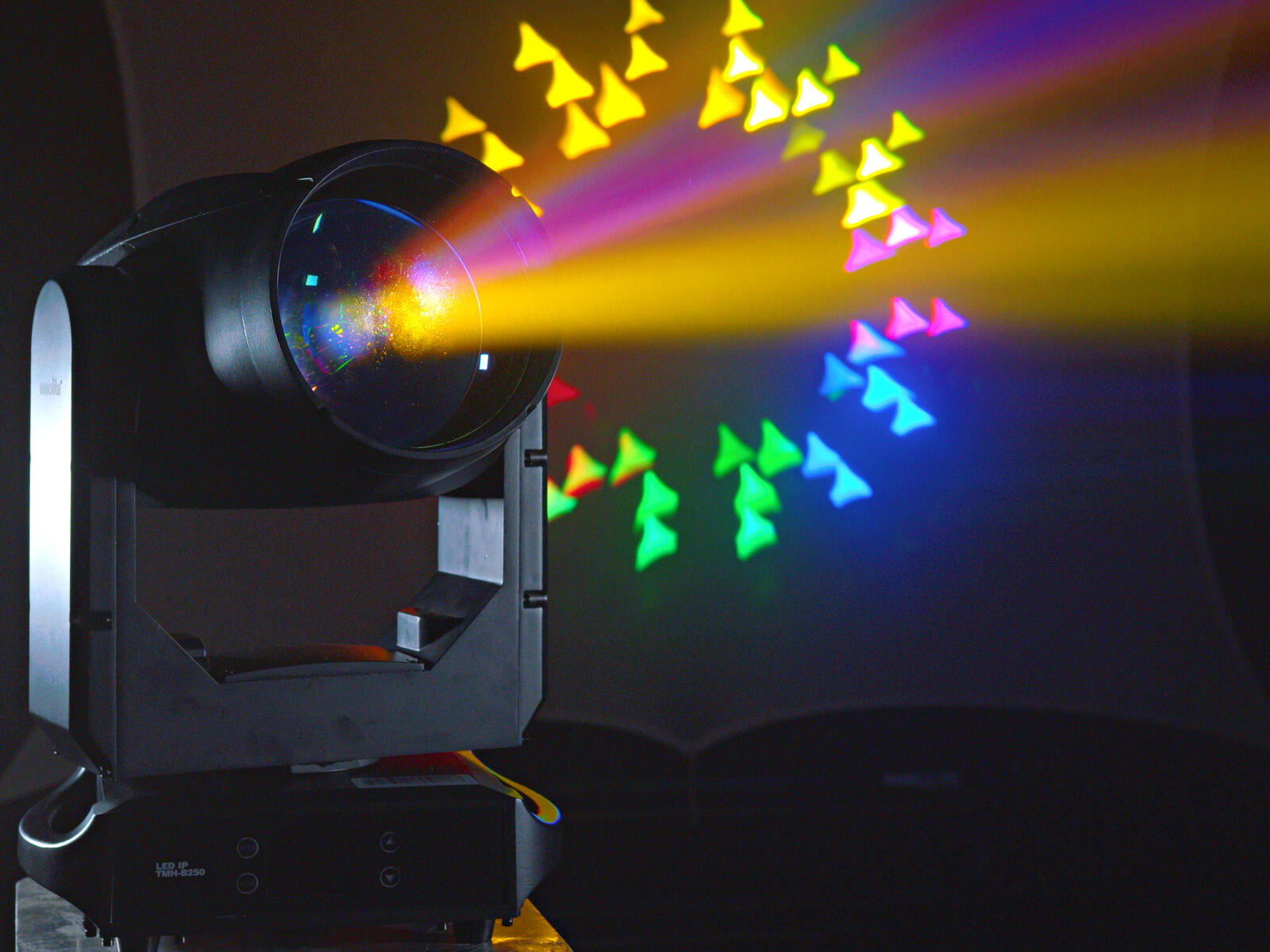

A gobo wheel with 13 patterns enables a wide range of projections, which can be further multiplied using two rotating prisms. These include an 8-facet and a 24-facet prism, which can also be used simultaneously.

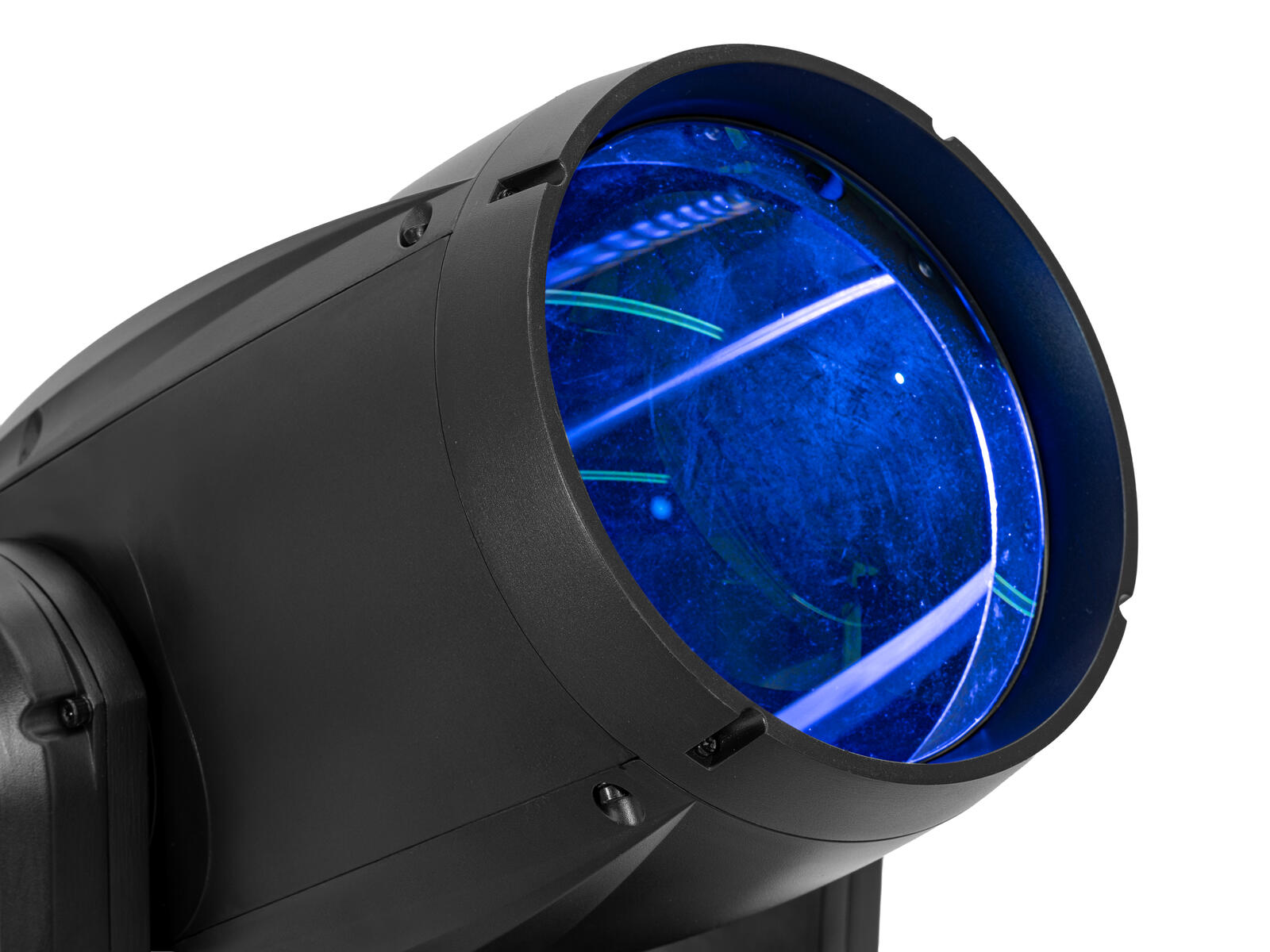

The color wheel provides 15 different colors. In addition, a multicolor filter is included, which creates particularly impressive effects, especially when combined with the prisms.

Weather-proof beam moving head (IP65) with 250W LED, gobo wheel and two combinable prisms

With a beam angle of 1°
2 prisms, 24-fold and 8-fold, which can be combine
Gobo wheel with static gobos, 13 gobos und open
Color wheel with 14 dichroic filters plus open
half colors selectable, Rainbow effect with adjustable speed in both directions
Multicolor effect filter; focus motor-driven; frost filter; color wheel; gobo wheel with static gobos; prism 24-fold rotating; prism 8-fold rotating
1 LED 250 W COB (chip-on-board) cold white (CW)
Suitable for outdoor use IP65
Positioning within 540° PAN, 250° TILT
Auto position correction (feedback)
Exact positioning (16 bit resolution)
The device is cooled by low-noise cooling fan at the base; temperature-controlled fan at the head
Control via DMX; RDM; master/slave function; stand-alone; sound to light via microphone
Flicker-free
RDM For bidirectional communication over the DMX line
DMX fail mode (hold; blackout; auto)

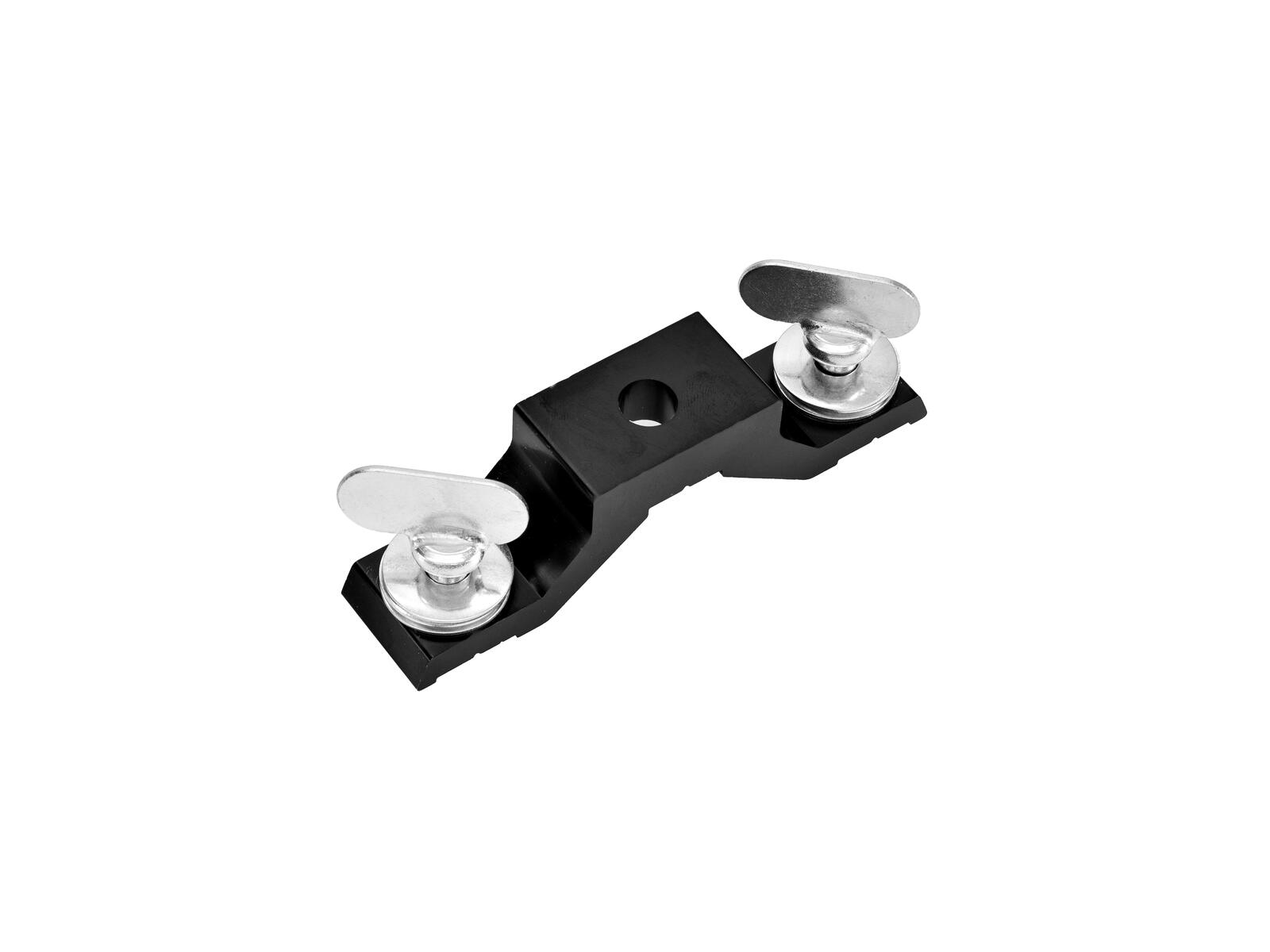

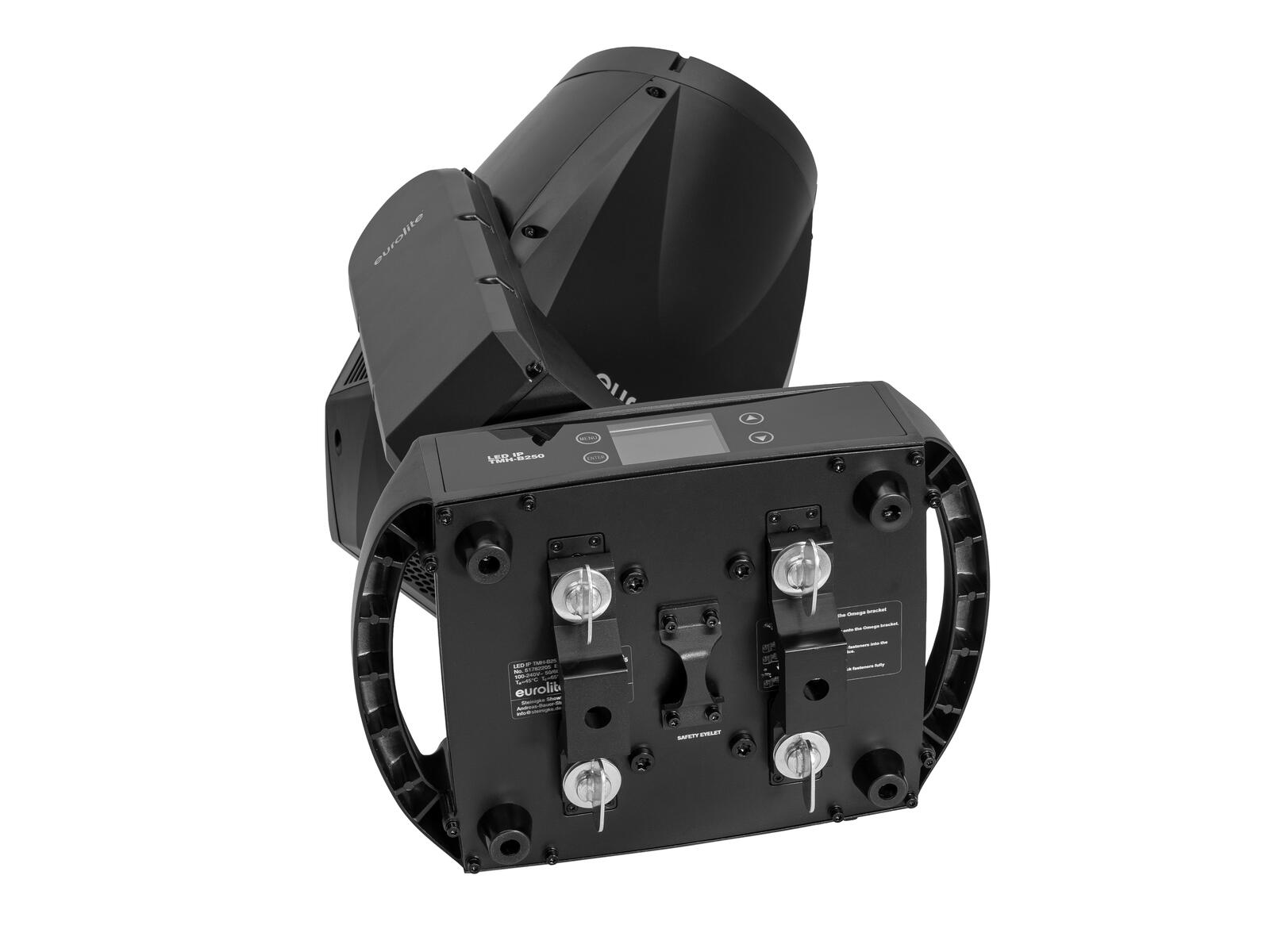

With omega bracket
Multicolor LCD display
2 Rugged carrying handles
Mains input and output for power linking up to 8 units
With pressure compensation membrane
For application areas such as: Stage; clubs/dancing school; wedding/gala/events; mobile djs / entertainer; rental
Application possibility: Standing; suspended
Fixtures available for Light Captain
