Technical specifications

Power supply:	230 V AC, 50 Hz
Power consumption:	3300 W
Power connection:	Fixed power supply cord with safety plug
Warm-up time:	Approx. 7 min
Output distance:	Approx. 15 m
Output duration:	60s - continuous
Tank capacity:	5 l
Fluid consumption:	Approx. 120 ml/min - 240 ml/min
DMX channels:	2
DMX input:	1 x 5-pin XLR (M) mounting version
Control:	Stand-alone; analog 0-10 V; DMX; timer
Operating principle:	Vaporizing fog machine
Heater:	2600 W
Color:	Black
Dimensions:	Width: 38.1 cm Depth: 96 cm Height: 69 cm
Weight:	79.80 kg

Packaging units

PU	EAN	Weight	Dimensions
1	4026397519815	80,30 kg	90cm x 49cm x 86cm

Spare parts

Downloads

Spezifications

Name	Version	Language
Spezifications as PDF
Product badge
Specifications as PDF neutral
Product badge neutral

Data sheet

Name	Version	Language
51700145-Datasheet-82165-de_en.pdf (296 KB)	0.0000	de_en

All images

Name	Version	Language
51700145-Images-.zip

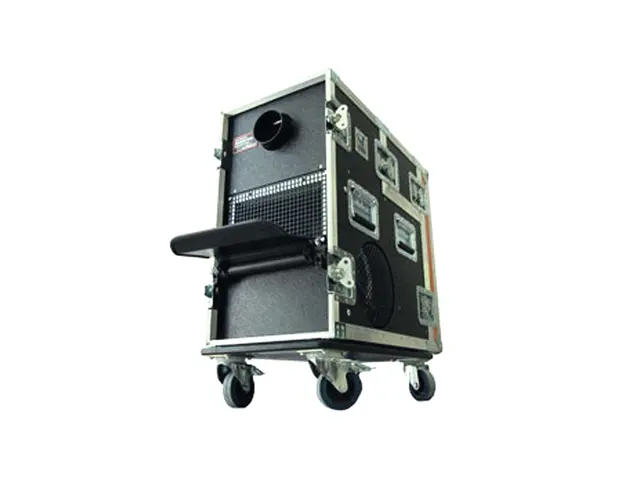

HAZEBASE BaseTouringCased Fogger

The article is no longer in our assortment.

No. 51700145

PRO 2600 W fog machine with fan in its own case and DMX connection

DMX serial-production, 2 channels, one for the fog and one for the fan
2600 W / 230 V / 50 Hz plus 700 W fan
Amptown flightcase serial-production
Integrated timer
Permanent fogging possible
Ultrastrong output
5 liter container can be replaced without refilling
Only use original Hazebase fluid for flawless operation
Other fluids may damage the unit or cause malfunction
Output distance: Approx. 15 m
Big tank capacity
Can be operated in 2 CH mode
Control via stand-alone; analog 0-10 V; DMX; timer
Made in Germany
For further information about this product, please refer to the Data Sheet under "Downloads"
