RGBW light effect with 9 lenses, arranged in 3 LED bars and unlimited PAN

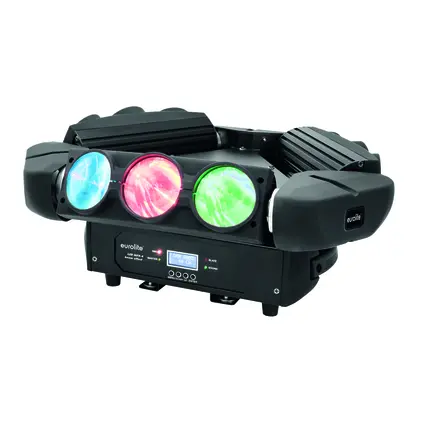

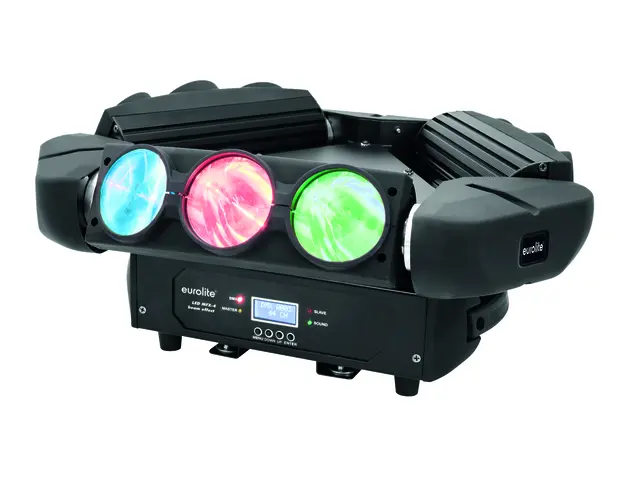

EUROLITE LED MFX-4 Beam Effect

5°

The article is no longer in our assortment.

Item no. 50944304

Features

RGBW light effect with 9 lenses, arranged in 3 LED bars and unlimited PAN

Beam effect with 9 Fresnel lenses and 10 W quadcolor LEDs in RGBW colors
Each LED can be controlled individually
TILT movement for each LED bar separately and steplessly adjustable
With Infinity function for unlimited PAN movement
Positioning within 360° PAN and 100° TILT
13 or 44 DMX channels selectable
Functions: Colored beams in R, G, B and W, stepless RGBW color mixture, auto mode, sound control, Master/Slave function, internal programs, strobe effect with adjustable speed, dimmer
DMX-controlled operation or stand-alone operation with Master/Slave function
Sound-controlled via built-in microphone
Control board with blue LCD for adjusting the DMX-starting address, PAN/TILT reverse, reset
Switch-mode power supply for operation between 100 and 240 volts
Ready for connection with power cord and safety plug
DMX512 control possible via any commercial DMX controller
9 powerful LEDs 10 W high-power 4in1 QCL RGBW
Fan effect
Control via DMX; stand-alone
Preprogrammed in Light Captain; LED PC-Control 512
With a beam angle of 5°

Technical specifications

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	120 W
IP classification:	IP20
Power connection:	Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Lamp type:	LED lamp
LED type:	9 x 10 W high-power 4in1 QCL RGBW
Max. TILT movement:	100° positioning
Max. PAN movement:	360° positioning plus infinity
DMX channels:	13; 44
Control:	DMX; stand-alone
Preprogrammed in:	Light Captain; LED PC-Control 512; Light Captain
Beam angle:	5°
Beam angle (1/2 peak):	5°
Housing color:	Black
Dimensions:	Width: 43 cm Depth: 41,5 cm Height: 32 cm
Weight:	9,20 kg
DMX channels:	13/44
DMX connection:	3-pin XLR
Sound-control:	via built-in microphone
Flash-rate:	10 Hz
LED type:	10 W QCL, RGBW
LED number:	9
Maximum PAN-movement:	unlimited
Maximum TILT-movement:	100°
Dimensions (L x W x H):	479 x 429 x 208 mm
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting

Packaging units

PU	EAN	Weight	Dimensions
1	4026397577785	10,95 kg	55cm x 51cm x 29cm
