Technical specifications

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	35 W
IP classification:	IP20
Power connection:	Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Power output:	1 x IEC connector (F) mounting version
Lamp type:	LED lamp
LED type:	3 x 10 W SMD 9080 4in1 QCL RGBW
Max. TILT movement:	Exact positioning (16 bit resolution) plus infinity
Max. PAN movement:	540° exact positioning (16 bit resolution)
Flash rate:	0 - 18 Hz
DMX channels:	16
DMX input:	1 x 3-pin XLR (M) mounting version
DMX output:	1 x 3-pin XLR (F) mounting version
Cooling:	Cooling fan
Control:	Stand-alone; DMX; sound to light via microphone
Fixtures available for:	Light´J; LED PC-Control 512; Light Captain
Projection:	Flicker-free
Beam angle (1/2 peak):	2°
Illuminance in Lux (lx):	Red (R) 3m: 913 lx, 6m: 182 lx Green (G) 3m: 915 lx, 6m: 228 lx Blue (B) 3m: 252 lx, 6m: 63 lx Cold white (CW) 3m: 936 lx, 6m: 232 lx
Housing color:	Black
Dimensions:	Width: 18.9 cm Depth: 14.9 cm Height: 29.3 cm
Weight:	2.28 kg
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting

Packaging units

PU	EAN	Weight	Dimensions
1	4026397571493	2,80 kg	35cm x 20cm x 26cm
4	4026397571615	12,30 kg	56cm x 42cm x 47cm

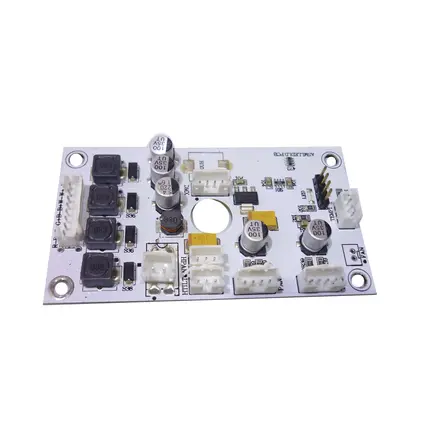

Spare parts

Downloads

Spezifications

Name	Version	Language
Spezifications as PDF
Product badge
Specifications as PDF neutral
Product badge neutral

Support

Name	Version	Language
50944301-Support-105538-1.0000-50944301-LED-PC-Control-de.zip (1 KB)	1.0000	de

Video file

Name	Version	Language
50944301-Video-100583-de_en_es_fr.flv (34 MB)	0.0000	de_en_es_fr

All images

Name	Version	Language
50944301-Images-.zip

Video link

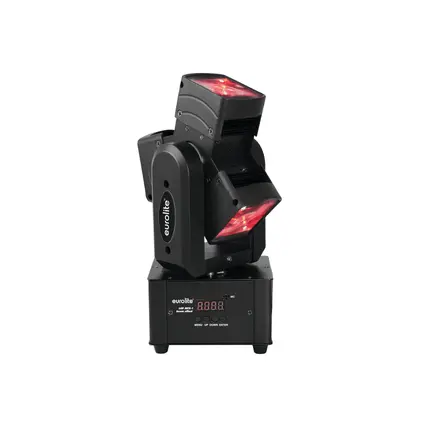

EUROLITE LED MFX-1 Beam Effect

The article is no longer in our assortment.

No. 50944301

2°

Small moving effect with 3 lenses in RGBW and unlimited TILT movement

With Infinity function for unlimited TILT movement
Equipped with three 10 W quadcolor LEDs with RGBW colors
Narrow beam angle
Compact lightweight
Functions: Colored beams in R, G, B and W, auto mode, sound control, color presets, Master/Slave function, built-in programs
Stepless RGBW color mixture
Dimmer
Strobe effect with adjustable speed
Random strobe effect
Exact positioning via 16 bit PAN/TILT movement resolution
DMX-controlled operation or stand-alone operation with Master/Slave function
Sound-controlled via built-in microphone

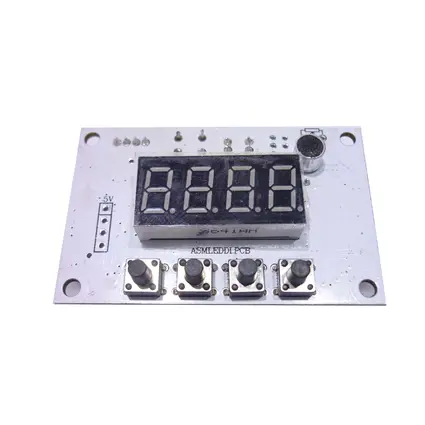

Addressing via control panel with 4-digit LED display
Switch-mode power supply for operation between 100 and 240 volts
Feed-through output allows to power up to 8 devices
Ready for connection with power cord and safety plug
3 LEDs 10 W SMD 9080 4in1 QCL RGBW
Exact positioning (16 bit resolution)
Multi beam effect
The device is cooled by cooling fan
Control via stand-alone; DMX; sound to light via microphone
Fixtures available for Light´J; LED PC-Control 512; Light Captain
Flicker-free
With a beam angle of 2°
